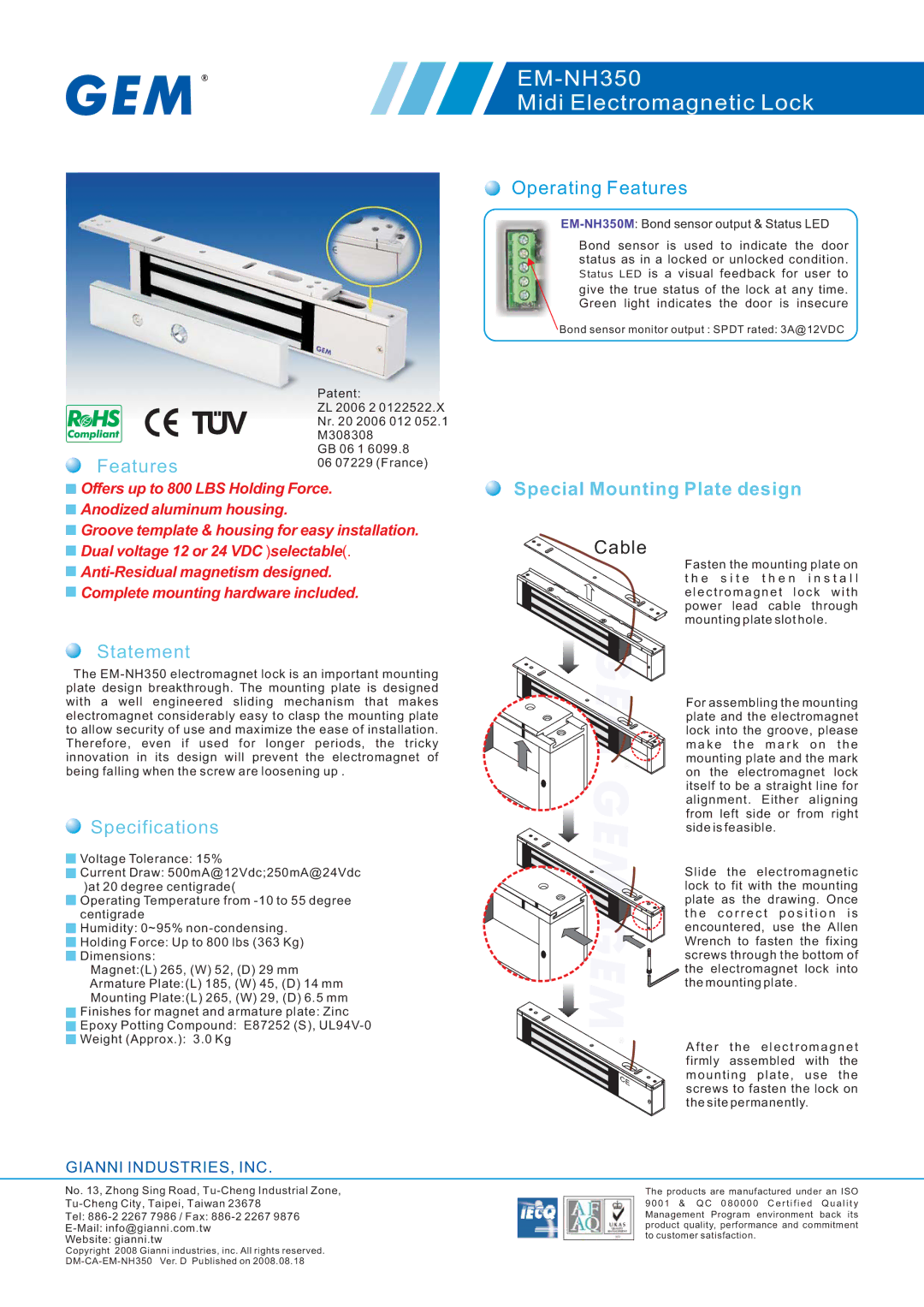

Operating Features, Statement | Gianni Industries EM-NH350

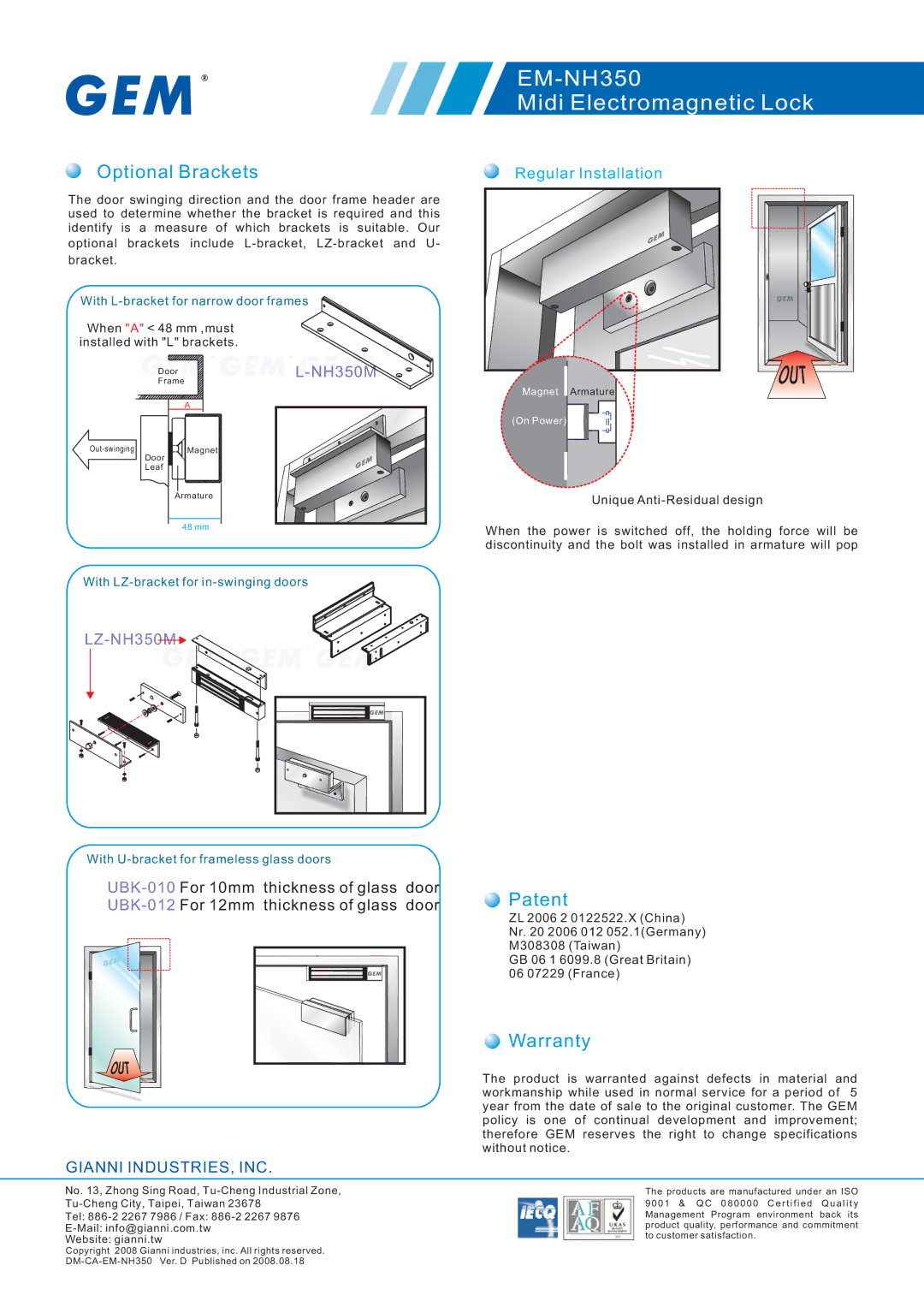

			Patent:
			ZL 2006 2 0122522.X
			Nr. 20 2006 012 052.1
			Nr. 20 2006 012 052.1
			M308308
			GB 06 1 6099.8
Features			06 07229 (France)
Features

Offers up to 800 LBS Holding Force.

Anodized aluminum housing.

Groove template & housing for easy installation. Dual voltage 12 or 24 VDC )selectable(.

Anti-Residual magnetism designed. Complete mounting hardware included.

Statement

The EM-NH350 electromagnet lock is an important mounting plate design breakthrough. The mounting plate is designed with a well engineered sliding mechanism that makes electromagnet considerably easy to clasp the mounting plate to allow security of use and maximize the ease of installation. Therefore, even if used for longer periods, the tricky innovation in its design will prevent the electromagnet of being falling when the screw are loosening up .

Specifications

Voltage Tolerance: 15%

Current Draw: 500mA@12Vdc;250mA@24Vdc )at 20 degree centigrade(

Operating Temperature from -10 to 55 degree centigrade

Humidity: 0~95% non-condensing.

Holding Force: Up to 800 lbs (363 Kg)

Dimensions:

Magnet:(L) 265, (W) 52, (D) 29 mm Armature Plate:(L) 185, (W) 45, (D) 14 mm Mounting Plate:(L) 265, (W) 29, (D) 6.5 mm

Finishes for magnet and armature plate: Zinc

Epoxy Potting Compound: E87252 (S), UL94V-0 Weight (Approx.): 3.0 Kg

GIANNI INDUSTRIES, INC.

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,

Tu-Cheng City, Taipei, Taiwan 23678

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: info@gianni.com.tw

Website: gianni.tw

EM-NH350

Midi Electromagnetic Lock

Operating Features

EM-NH350M: Bond sensor output & Status LED

Bond sensor is used to indicate the door status as in a locked or unlocked condition. Status LED is a visual feedback for user to give the true status of the lock at any time. Green light indicates the door is insecure

Bond sensor monitor output : SPDT rated: 3A@12VDC

Special Mounting Plate design

Cable

Fasten the mounting plate on t h e s i t e t h e n i n s t a l l e l e c t r o m a g n e t l o c k w i t h power lead cable through mounting plate slot hole.

For assembling the mounting plate and the electromagnet lock into the groove, please m a k e t h e m a r k o n t h e mounting plate and the mark on the electromagnet lock itself to be a straight line for alignment. Either aligning from left side or from right side is feasible.

Slide the electromagnetic lock to fit with the mounting plate as the drawing. Once t h e c o r r e c t p o s i t i o n i s encountered, use the Allen Wrench to fasten the fixing screws through the bottom of the electromagnet lock into the mounting plate.

A f t e r t h e e l e c t r o m a g n e t firmly assembled with the m o u n t i n g p l a t e , u s e t h e screws to fasten the lock on the site permanently.

The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.

Gianni Industries specifications EM-NH350 Midi Electromagnetic Lock, Operating Features, Cable
