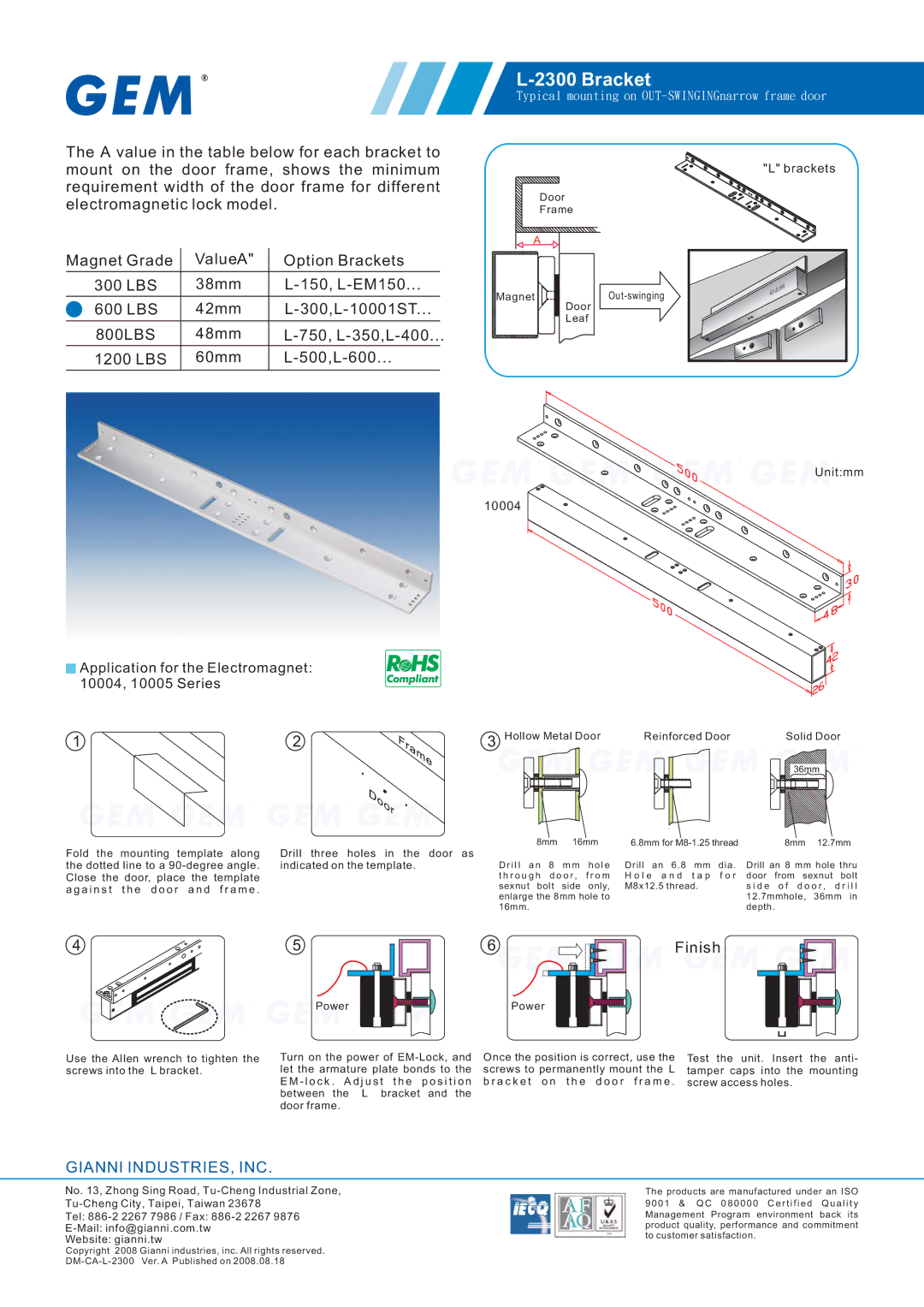

L-2300 Bracket

Typical mounting on OUT-SWINGINGnarrow frame door

The A value in the table below for each bracket to mount on the door frame, shows the minimum requirement width of the door frame for different electromagnetic lock model.

Magnet Grade

ValueA"

Option Brackets









300 LBS

38mm

L-150, L-EM150...









600 LBS

42mm

L-300,L-10001ST...









800LBS

48mm

L-750, L-350,L-400...

1200 LBS

60mm

L-500,L-600...











Door

Frame

A

Magnet

Door

Leaf

"L" brackets

Out-swinging

Application for the Electromagnet: 10004, 10005 Series

1

2

500

Unit:mm



10004

30



500

48









42





26

3 Hollow Metal Door

Reinforced Door

Solid Door

36mm

Fold the mounting template along the dotted line to a 90-degree angle. Close the door, place the template a g a i n s t t h e d o o r a n d f r a m e .

Drill three holes in the door as indicated on the template.

8mm

16mm

6.8mm for M8-1.25 thread



8mm

12.7mm

D r i l l a n

8

m m

h o l e

Drill

an 6.8 mm

dia.

Drill an 8 mm hole thru

t h r o u g h

d o o r ,

f r o m

H o l e

a n d t a p

f o r

door

from sexnut

bolt

sexnut bolt

side

only,

M8x12.5 thread.



s i d e

o f d o o r ,

d r i l l

enlarge the 8mm hole to







12.7mmhole,

36mm in

16mm.













depth.





4

5

Power

6

Finish



Power

Use the Allen wrench to tighten the screws into the L bracket.

Turn on the power of EM-Lock, and

Once the position is correct, use the

Test the unit. Insert the anti-

let the armature plate bonds to the

screws to permanently mount the L

tamper caps into the mounting

E M - l o c k . A d j u s t t h e

p o s i t i o n

b r a c k e t o n t h e d o o r f r a m e .

screw access holes.

between the L bracket

and the





door frame.







GIANNI INDUSTRIES, INC.

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone, Tu-Cheng City, Taipei, Taiwan 23678

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: info@gianni.com.tw

Website: gianni.tw

The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.

Copyright 2008 Gianni industries, inc. All rights reserved. DM-CA-L-2300 Ver. A Published on 2008.08.18

Page 1
