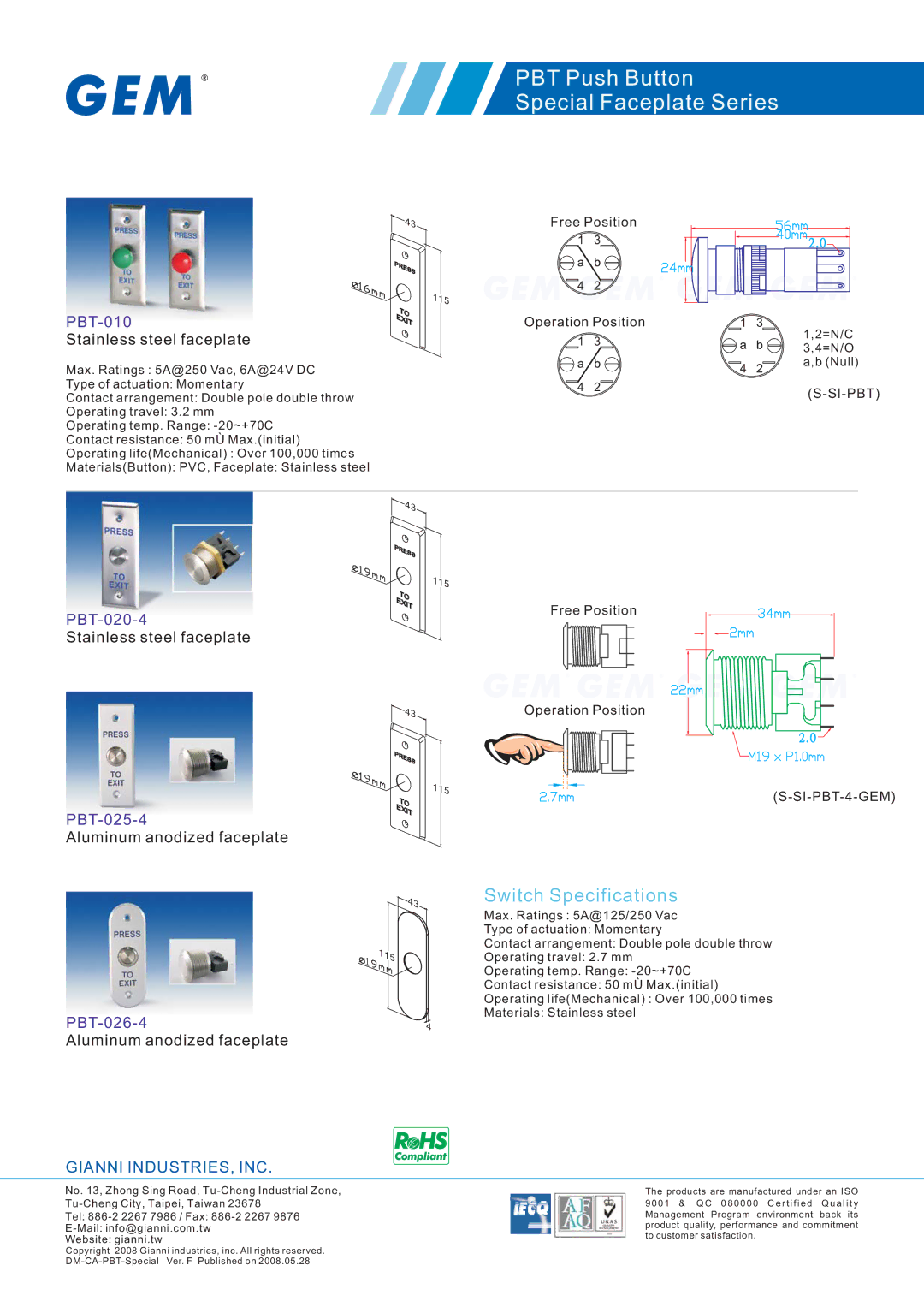

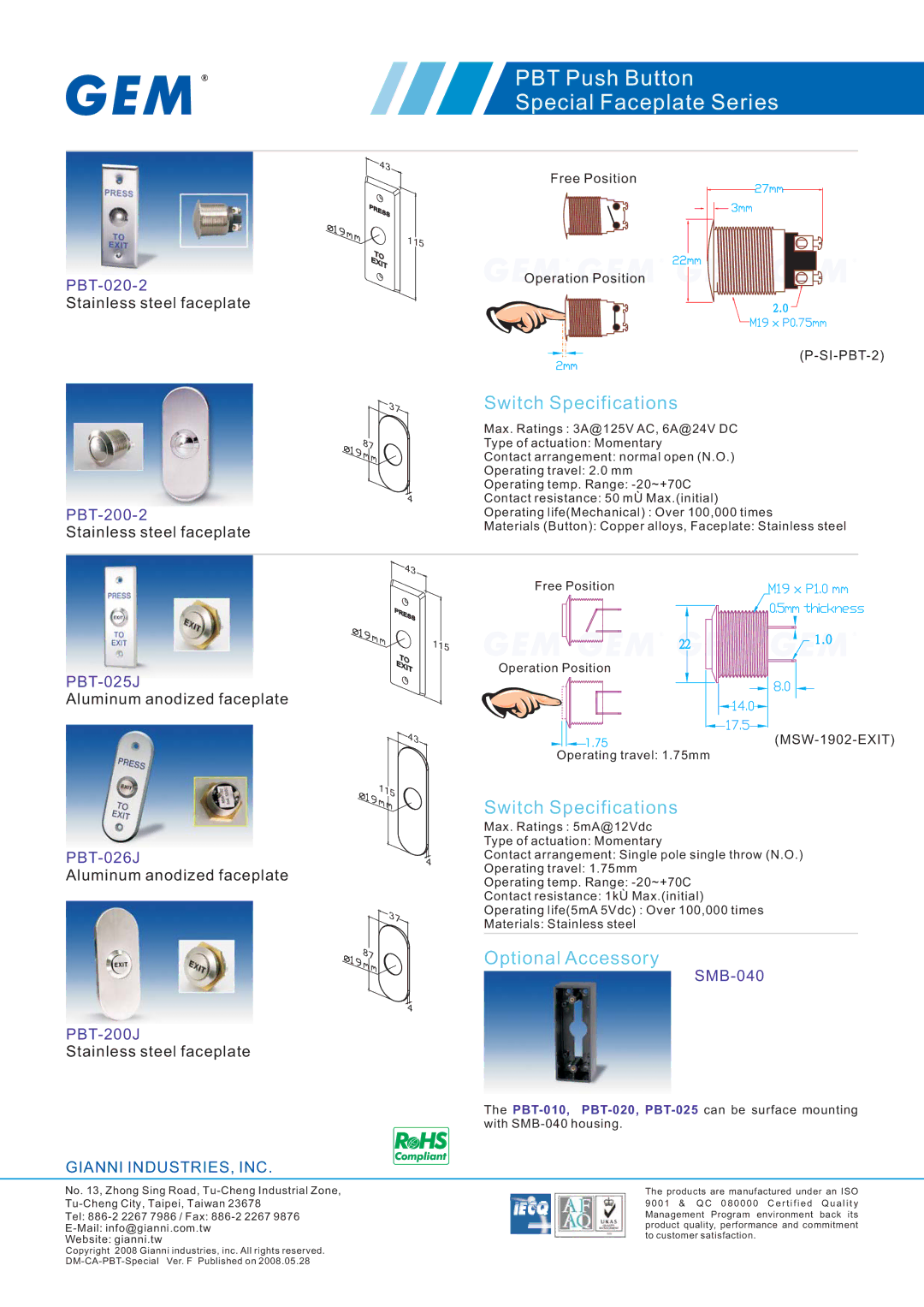

PBT Push Button Special Faceplate Series



43

16mm

115



Free Position

1 3

24mm

4 2

56mm 40mm2.0

PBT-010

Stainless steel faceplate

Max. Ratings : 5A@250 Vac, 6A@24V DC

Type of actuation: Momentary

Contact arrangement: Double pole double throw

Operating travel: 3.2 mm

Operating temp. Range: -20~+70C

Contact resistance: 50 mÙ Max.(initial)

Operating life(Mechanical) : Over 100,000 times

Materials(Button): PVC, Faceplate: Stainless steel



43

19mm

115



Operation Position

13

42

1 3

4 2

1,2=N/C

3,4=N/O a,b (Null)

(S-SI-PBT)

PBT-020-4

Stainless steel faceplate



43

19mm

115



Free Position

22mm

Operation Position

34mm

2mm

2.0

M19 x P1.0mm

PBT-025-4

Aluminum anodized faceplate

2.7mm

(S-SI-PBT-4-GEM)

PBT-026-4

Aluminum anodized faceplate

43

115 19mm

4

Switch Specifications

Max. Ratings : 5A@125/250 Vac

Type of actuation: Momentary

Contact arrangement: Double pole double throw

Operating travel: 2.7 mm

Operating temp. Range: -20~+70C

Contact resistance: 50 mÙ Max.(initial)

Operating life(Mechanical) : Over 100,000 times

Materials: Stainless steel

GIANNI INDUSTRIES, INC.

No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone, Tu-Cheng City, Taipei, Taiwan 23678

Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876

E-Mail: info@gianni.com.tw

Website: gianni.tw

The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.

Copyright 2008 Gianni industries, inc. All rights reserved. DM-CA-PBT-Special Ver. F Published on 2008.05.28

Page 1
Image 1
Gianni Industries PBT-020-4, PBT-026-4 specifications PBT Push Button Special Faceplate Series, Switch Specifications

PBT-026-4, PBT-020-4, PBT-025-4 specifications
