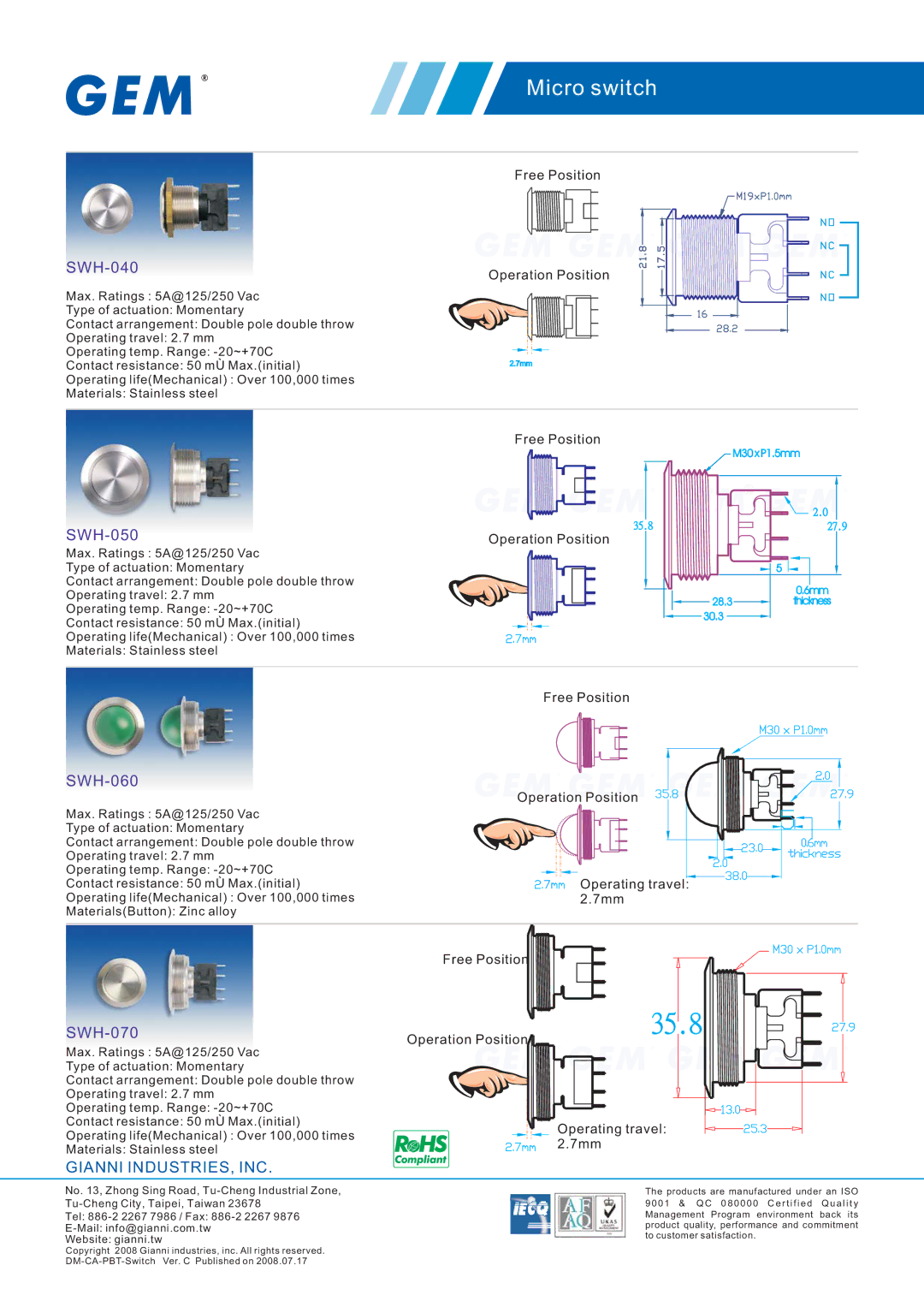

Micro switch
SWH-040
Max. Ratings : 5A@125/250 Vac
Type of actuation: Momentary
Contact arrangement: Double pole double throw
Operating travel: 2.7 mm
Operating temp. Range:
Contact resistance: 50 mÙ Max.(initial)
Operating life(Mechanical) : Over 100,000 times
Materials: Stainless steel
Free Position
Operation Position
2.7mm
SWH-050
Max. Ratings : 5A@125/250 Vac
Type of actuation: Momentary
Contact arrangement: Double pole double throw
Operating travel: 2.7 mm
Operating temp. Range:
Contact resistance: 50 mÙ Max.(initial)
Operating life(Mechanical) : Over 100,000 times
Materials: Stainless steel
Free Position
| M30 x P1.5mm |
| 2.0 |
35.8 | 27.9 |
Operation Position |
|
| 5 |
| 0.6mm |
28.3 | thickness |
30.3 |
|
2.7mm |
|
SWH-060
Max. Ratings : 5A@125/250 Vac
Type of actuation: Momentary
Contact arrangement: Double pole double throw
Operating travel: 2.7 mm
Operating temp. Range:
Contact resistance: 50 mÙ Max.(initial)
Operating life(Mechanical) : Over 100,000 times
Materials(Button): Zinc alloy
Free Position |
|
|
| |
|
|
| M30 x P1.0mm | |
|
|
|
| 2.0 |
Operation Position | 35.8 |
| 27.9 | |
|
|
| ||
|
|
|
| 5 |
|
|
| 23.0 | 0.6mm |
|
|
| thickness | |
|
|
|
| |
|
|
| 2.0 |
|
| Operating travel: | 38.0 |
| |
2.7mm |
|
| ||
| 2.7mm |
|
|
|
SWH-070
Max. Ratings : 5A@125/250 Vac
Type of actuation: Momentary
Contact arrangement: Double pole double throw
Operating travel: 2.7 mm
Operating temp. Range:
Contact resistance: 50 mÙ Max.(initial)
Operating life(Mechanical) : Over 100,000 times
Materials: Stainless steel
GIANNI INDUSTRIES, INC.
No. 13, Zhong Sing Road,
Tel:
Website: gianni.tw
Copyright 2008 Gianni industries, inc. All rights reserved.
Free Position
Operation Position
2.7mm
M30 x P1.0mm
35.8
27.9
| 13.0 |
Operating travel: | 25.3 |
2.7mm |
|
The products are manufactured under an ISO 9 0 0 1 & Q C 0 8 0 0 0 0 C e r t i f i e d Q u a l i t y Management Program environment back its product quality, performance and commitment to customer satisfaction.
