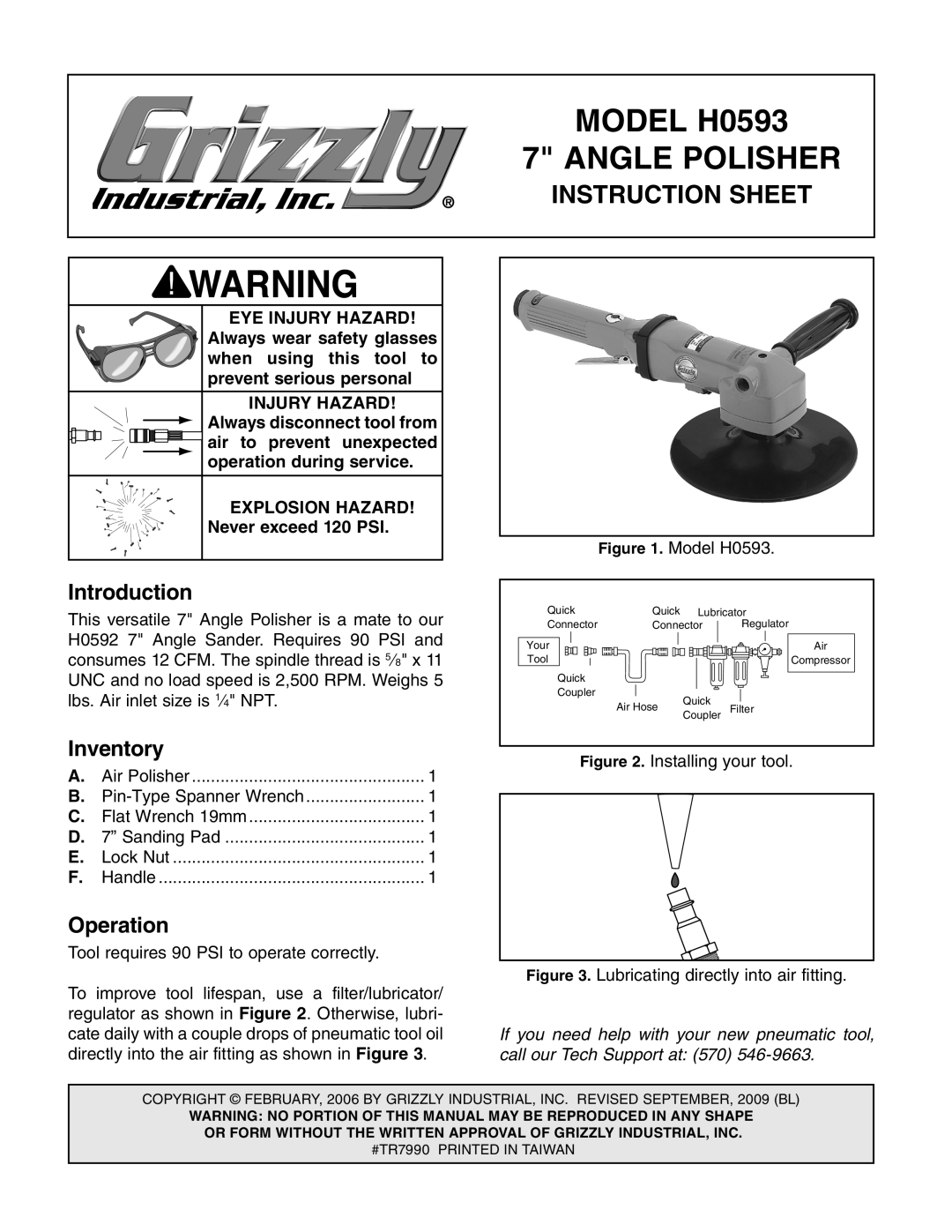

MODEL H0593

7" ANGLE POLISHER

INSTRUCTION SHEET

EYE INJURY HAZARD!

Always wear safety glasses

when using this tool to prevent serious personal

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected operation during service.

EXPLOSION HAZARD!

Never exceed 120 PSI.

Introduction

This versatile 7" Angle Polisher is a mate to our H0592 7" Angle Sander. Requires 90 PSI and consumes 12 CFM. The spindle thread is 58" x 11 UNC and no load speed is 2,500 RPM. Weighs 5 lbs. Air inlet size is 14" NPT.

Inventory



A.

Air Polisher

1

B.

Pin-Type Spanner Wrench

1

C.

Flat Wrench 19mm

1

D.

7” Sanding Pad

1

E.

Lock Nut

1

F.

Handle

1

Figure 1. Model H0593.

Quick

Quick

Lubricator

Connector

Connector

Regulator

Your





Air

Tool





Compressor

Quick







Coupler



Quick





Air Hose

Filter



Coupler





Figure 2. Installing your tool.

Operation

Tool requires 90 PSI to operate correctly.

To improve tool lifespan, use a filter/lubricator/ regulator as shown in Figure 2. Otherwise, lubri- cate daily with a couple drops of pneumatic tool oil directly into the air fitting as shown in Figure 3.

Figure 3. Lubricating directly into air fitting.

If you need help with your new pneumatic tool, call our Tech Support at: (570) 546-9663.
