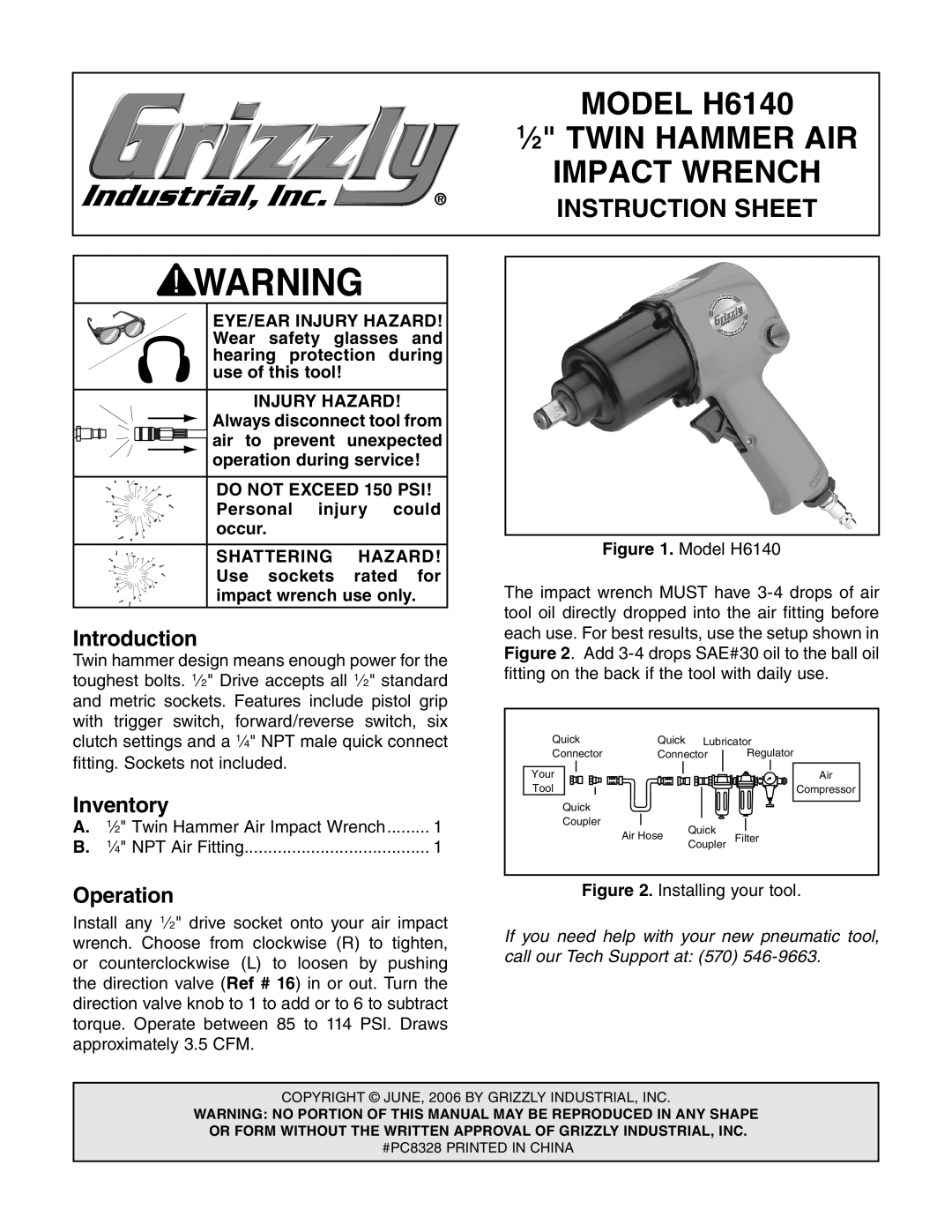

MODEL H6140 |
1⁄2" TWIN HAMMER AIR |
IMPACT WRENCH |
INSTRUCTION SHEET |
EYE/EAR INJURY HAZARD! Wear safety glasses and hearing protection during use of this tool!
INJURY HAZARD!
Always disconnect tool from
air to prevent unexpected
operation during service!
DO NOT EXCEED 150 PSI! Personal injury could occur.
SHATTERING HAZARD! Use sockets rated for impact wrench use only.
Introduction
Twin hammer design means enough power for the toughest bolts. 1⁄2" Drive accepts all 1⁄2" standard and metric sockets. Features include pistol grip with trigger switch, forward/reverse switch, six clutch settings and a 1⁄4" NPT male quick connect fitting. Sockets not included.
Inventory |
| |
A. | 1⁄2" Twin Hammer Air Impact Wrench | 1 |
B. | 1⁄4" NPT Air Fitting | 1 |
Figure 1. Model H6140
The impact wrench MUST have 3-4 drops of air tool oil directly dropped into the air fitting before each use. For best results, use the setup shown in Figure 2. Add 3-4 drops SAE#30 oil to the ball oil fitting on the back if the tool with daily use.
Quick | Quick | Lubricator | |
Connector | Connector | Regulator | |
Your |
|
| Air |
Tool |
|
| Compressor |
Quick |
|
|
|
Coupler |
| Quick |
|
| Air Hose | Filter | |
| Coupler | ||
|
| ||

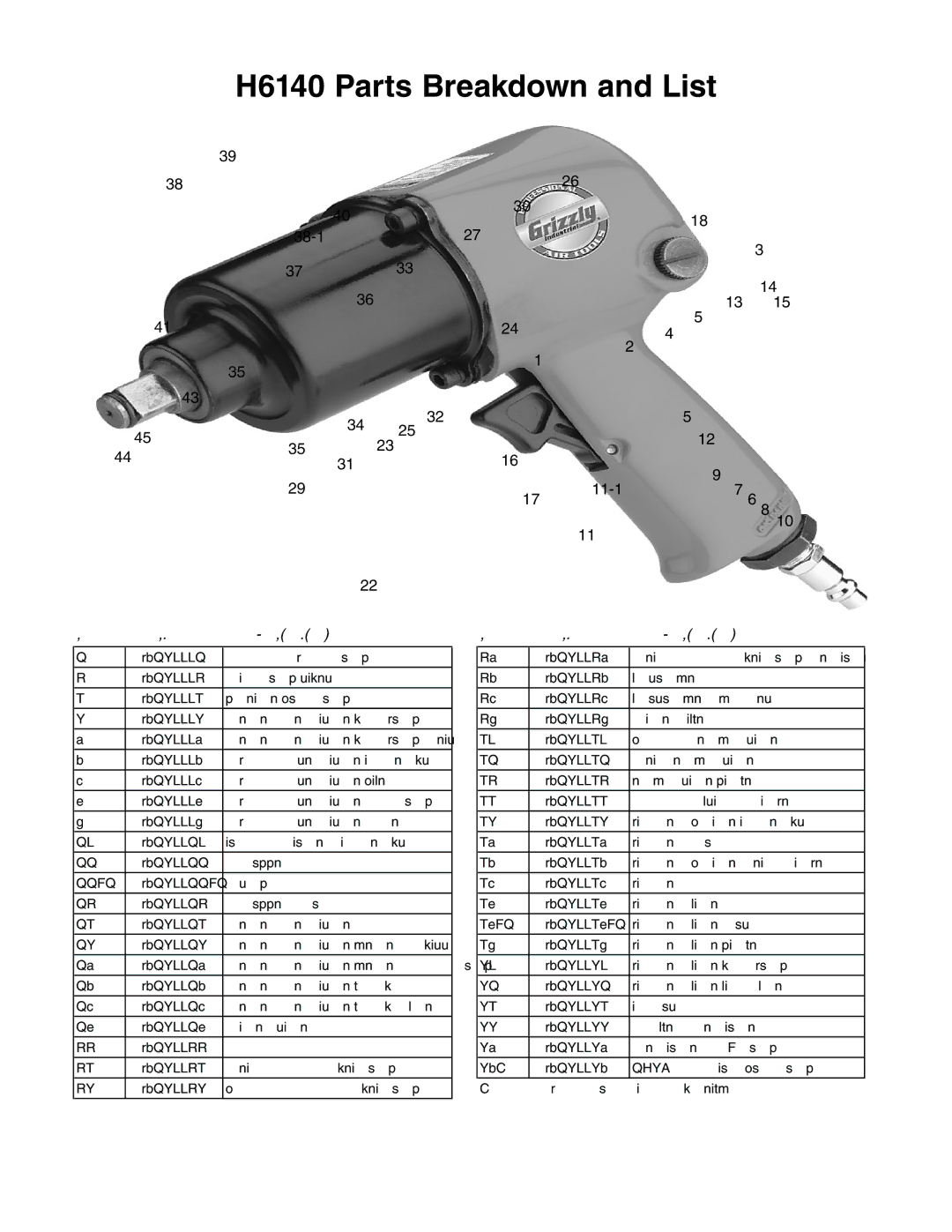

Operation
Install any 1⁄2" drive socket onto your air impact wrench. Choose from clockwise (R) to tighten, or counterclockwise (L) to loosen by pushing the direction valve (Ref # 16) in or out. Turn the direction valve knob to 1 to add or to 6 to subtract torque. Operate between 85 to 114 PSI. Draws approximately 3.5 CFM.
Figure 2. Installing your tool.
If you need help with your new pneumatic tool, call our Tech Support at: (570)
COPYRIGHT © JUNE, 2006 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#PC8328 PRINTED IN CHINA
