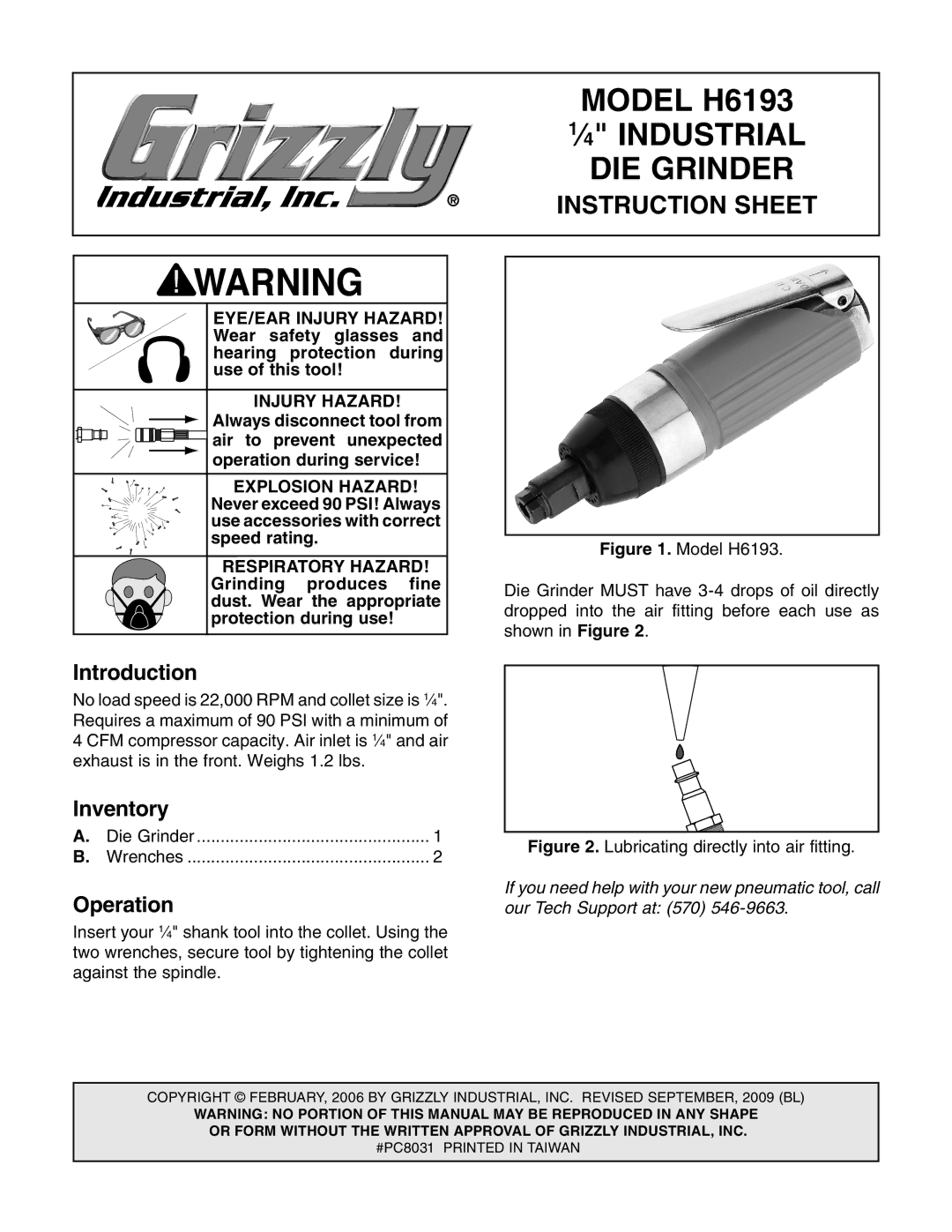

MODEL H6193 |
1⁄4" INDUSTRIAL |
DIE GRINDER |
INSTRUCTION SHEET |
EYE/EAR INJURY HAZARD! Wear safety glasses and hearing protection during use of this tool!
INJURY HAZARD!
Always disconnect tool from
air to prevent unexpected
operation during service!
EXPLOSION HAZARD!
Never exceed 90 PSI! Always use accessories with correct speed rating.
RESPIRATORY HAZARD! Grinding produces fine dust. Wear the appropriate protection during use!
Figure 1. Model H6193.
Die Grinder MUST have
Introduction
No load speed is 22,000 RPM and collet size is 1⁄4". Requires a maximum of 90 PSI with a minimum of 4 CFM compressor capacity. Air inlet is 1⁄4" and air exhaust is in the front. Weighs 1.2 lbs.
Inventory |
| |
A. | Die Grinder | 1 |
B. | Wrenches | 2 |
Operation
Insert your 1⁄4" shank tool into the collet. Using the two wrenches, secure tool by tightening the collet against the spindle.
Figure 2. Lubricating directly into air fitting.
If you need help with your new pneumatic tool, call our Tech Support at: (570)
Copyright © February, 2006 By Grizzly Industrial, Inc. revised september, 2009 (BL)
Warning: No portion of this manual may be reproduced in any shape Or form without the written approval of Grizzly Industrial, inc.
#PC8031 printed in TAIWAN
