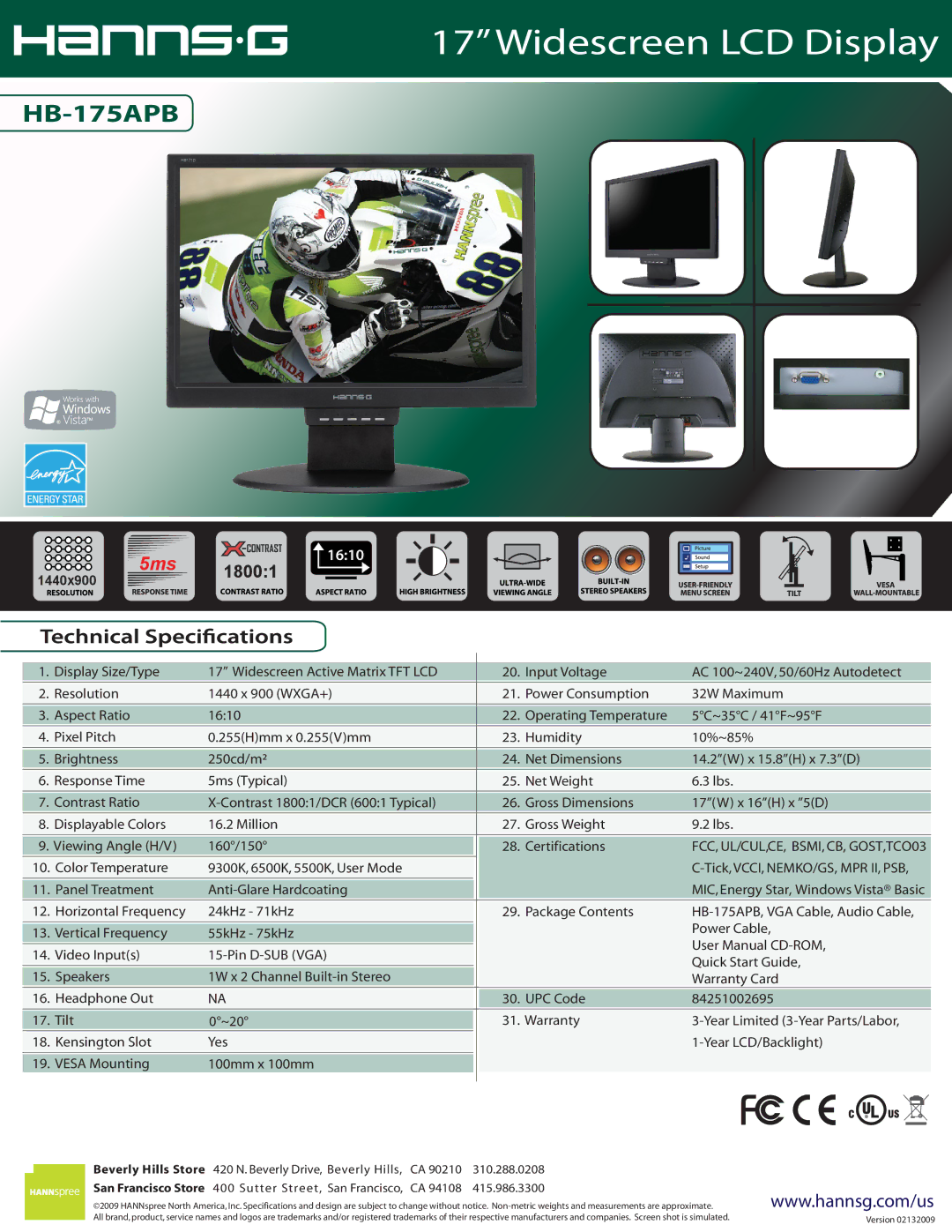

Hanns.G HB-175APB specifications 17” Widescreen LCD Display

17” Widescreen LCD Display

HB-175APB

1440x900 5ms 1800:1 16:10

1.	Display Size/Type	17” Widescreen Active Matrix TFT LCD	20.	Input Voltage	AC 100~240V, 50/60Hz Autodetect
2.	Resolution	1440 x 900 (WXGA+)	21.	Power Consumption	32W Maximum
3.	Aspect Ratio	16:10	22.	Operating Temperature	5°C~35°C / 41°F~95°F
4.	Pixel Pitch	0.255(H)mm x 0.255(V)mm	23.	Humidity	10%~85%
5.	Brightness	250cd/m²	24.	Net Dimensions	14.2”(W) x 15.8”(H) x 7.3”(D)
6.	Response Time	5ms (Typical)	25.	Net Weight	6.3 lbs.
7.	Contrast Ratio	X-Contrast 1800:1/DCR (600:1 Typical)	26.	Gross Dimensions	17”(W) x 16”(H) x ”5(D)
8.	Displayable Colors	16.2 Million	27.	Gross Weight	9.2 lbs.
9. Viewing Angle (H/V)		160°/150°	28.	Certifications	FCC, UL/CUL,CE, BSMI, CB, GOST,TCO03
10.	Color Temperature	9300K, 6500K, 5500K, User Mode			C-Tick, VCCI, NEMKO/GS, MPR II, PSB,
11.	Panel Treatment	Anti-Glare Hardcoating			MIC, Energy Star, Windows Vista® Basic
12.	Horizontal Frequency	24kHz - 71kHz	29.	Package Contents	HB-175APB, VGA Cable, Audio Cable,
					Power Cable,
13.	Vertical Frequency	55kHz - 75kHz
					User Manual CD-ROM,
14.	Video Input(s)	15-Pin D-SUB (VGA)
					Quick Start Guide,
15.	Speakers	1W x 2 Channel Built-in Stereo			Warranty Card
16.	Headphone Out	NA	30.	UPC Code	84251002695
17. Tilt		0°~20°	31. Warranty		3-Year Limited (3-Year Parts/Labor,
18.	Kensington Slot	Yes			1-Year LCD/Backlight)
19.	VESA Mounting	100mm x 100mm

Beverly Hills Store	420 N. Beverly Drive, Beverly Hills,	CA 90210	310.288.0208
San Francisco Store	400 Sutter Street, San Francisco,	CA 94108	415.986.3300

©2009 HANNspree North America, Inc. Specifications and design are subject to change without notice. Non-metric weights and measurements are approximate.

All brand, product, service names and logos are trademarks and/or registered trademarks of their respective manufacturers and companies. Screen shot is simulated.

www.hannsg.com/us

Version 02132009
