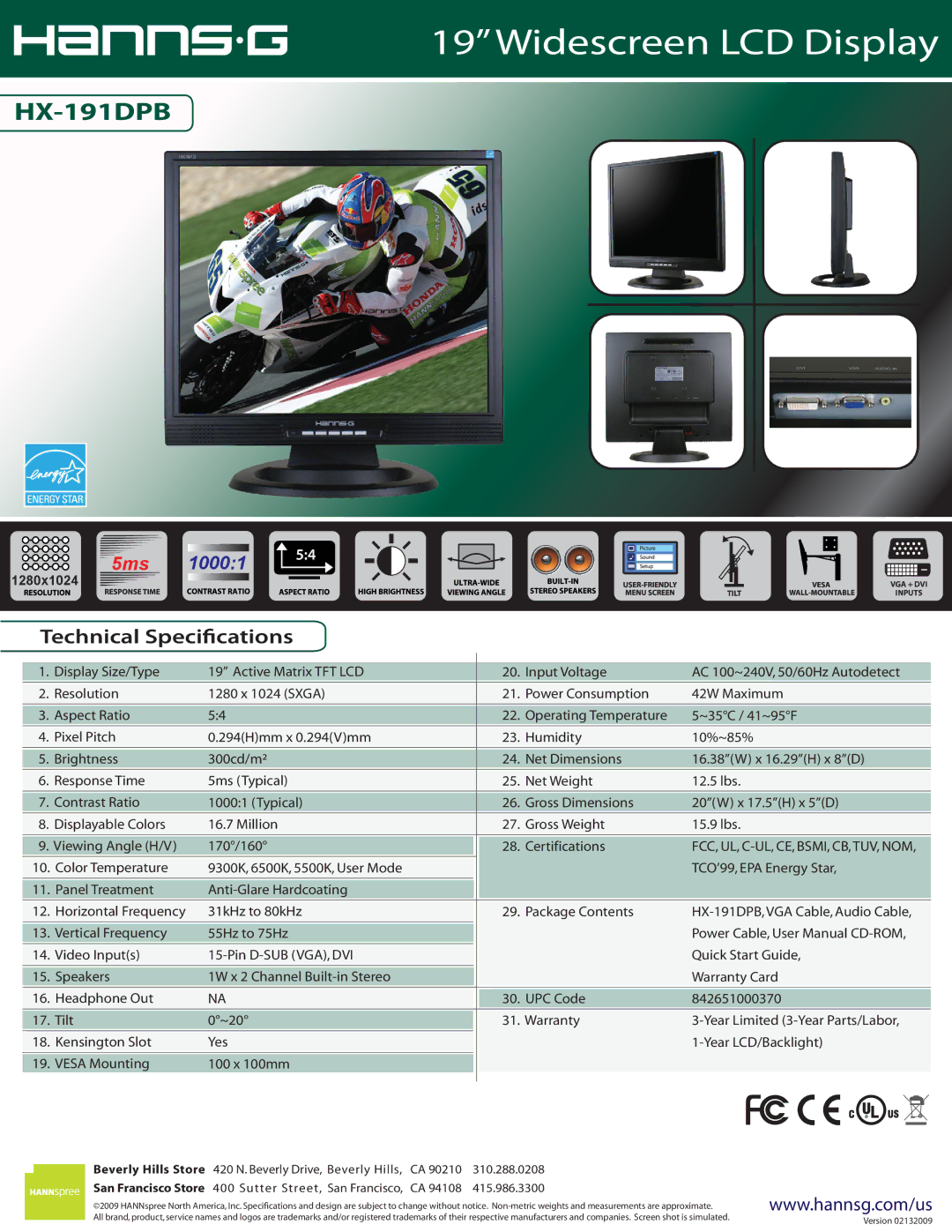

19” Widescreen LCD Display
HX-191DPB
5ms | 1000:1 | 5:4 |
| ||
1280x1024 | 700:1 |
|
|
|
VGA + DVI
INPUTS
Technical Specications
|
|
|
|
|
|
|
|
|
|
|
|
1. | Display Size/Type | 19” Active Matrix TFT LCD | 20. | Input Voltage | AC 100~240V, 50/60Hz Autodetect | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
2. | Resolution | 1280 x 1024 (SXGA) | 21. | Power Consumption | 42W Maximum | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
3. | Aspect Ratio | 5:4 |
| 22. | Operating Temperature | 5~35°C / 41~95°F | |||||
|
|
|
|
|
|
|
|
|
|
|
|
4. | Pixel Pitch | 0.294(H)mm x 0.294(V)mm | 23. | Humidity | 10%~85% |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
5. | Brightness | 300cd/m² | 24. | Net Dimensions | 16.38”(W) x 16.29”(H) x 8”(D) | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
6. | Response Time | 5ms (Typical) | 25. | Net Weight | 12.5 lbs. | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
7. | Contrast Ratio | 1000:1 (Typical) | 26. | Gross Dimensions | 20”(W) x 17.5”(H) x 5”(D) | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
8. | Displayable Colors | 16.7 Million | 27. | Gross Weight | 15.9 lbs. | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
9. Viewing Angle (H/V) | 170°/160° |
| 28. | Certifications | FCC, UL, | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
10. | Color Temperature | 9300K, 6500K, 5500K, User Mode |
|
|
| TCO’99, EPA Energy Star, | |||||
|
|
|
|
|
|
|
|
|
|
|
|
11. | Panel Treatment |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
12. | Horizontal Frequency | 31kHz to 80kHz |
| 29. | Package Contents | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
13. | Vertical Frequency | 55Hz to 75Hz |
|
|
| Power Cable, User Manual | |||||
|
|
|
|
|
|
|
|
|
|
|
|
14. | Video Input(s) |
|
|
| Quick Start Guide, | ||||||
|
|
|
|
|
|
|
|
|
|
|
|
15. | Speakers | 1W x 2 Channel |
|
|
| Warranty Card | |||||
|
|
|
|
|
|
|
|
|
|
|
|
16. | Headphone Out | NA |
| 30. | UPC Code | 842651000370 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17. Tilt | 0°~20° |
| 31. Warranty | ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
18. | Kensington Slot | Yes |
|
|
| ||||||
|
|
|
|
|
|
|
|
|
|
|
|
19. | VESA Mounting | 100 x 100mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
