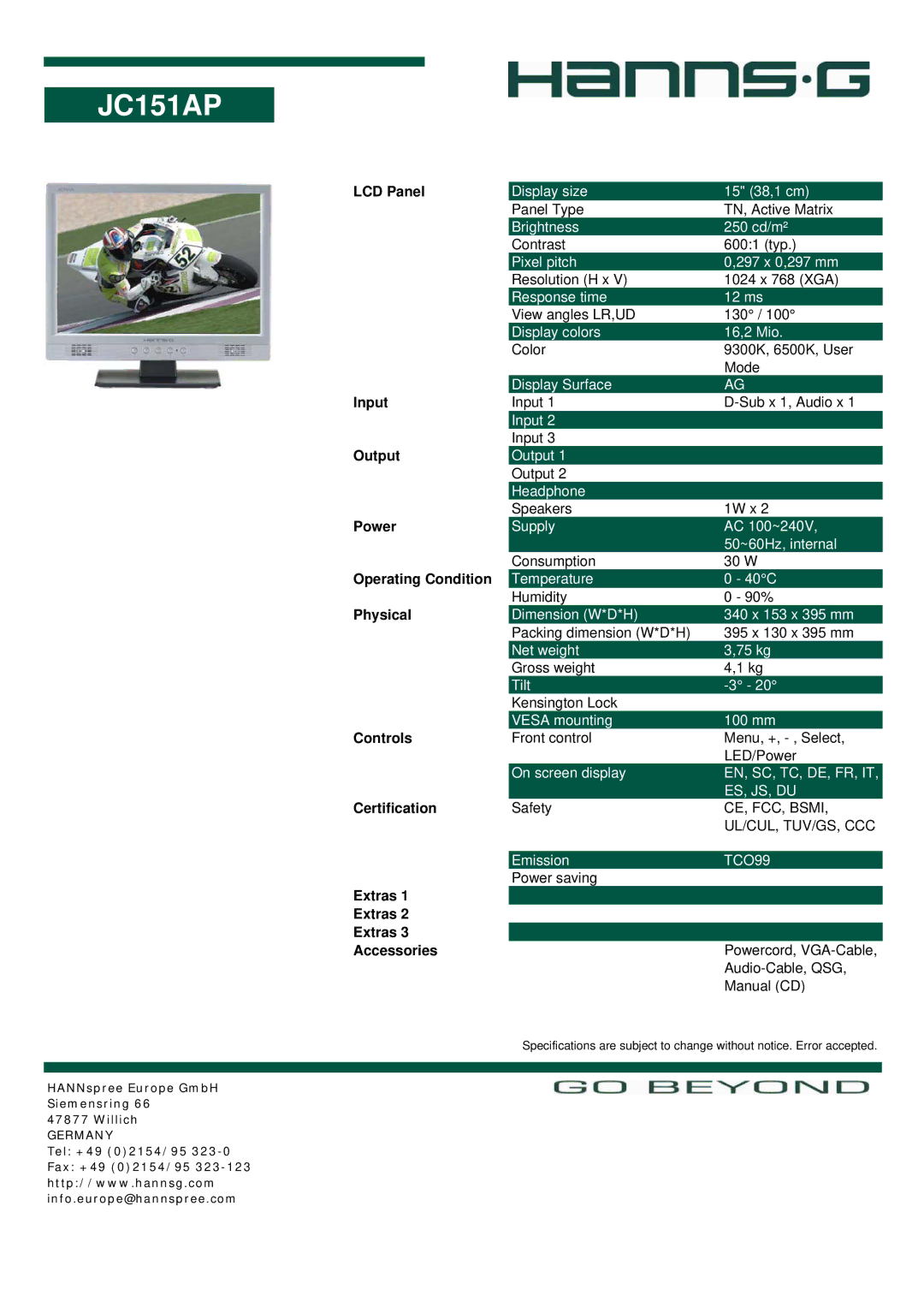

Hanns.G JC151AP specifications

JC151AP

LCD Panel	Display size	15" (38,1 cm)
	Panel Type	TN, Active Matrix
	Brightness	250 cd/m²
	Contrast	600:1 (typ.)
	Pixel pitch	0,297 x 0,297 mm
	Resolution (H x V)	1024 x 768 (XGA)
	Response time	12 ms
	View angles LR,UD	130° / 100°
	Display colors	16,2 Mio.
	Color	9300K, 6500K, User
		Mode
Input	Display Surface	AG
	Input 1	D-Sub x 1, Audio x 1
	Input 2
Output	Input 3
	Output 1
	Output 2
	Headphone
Power	Speakers	1W x 2
	Supply	AC 100~240V,
		50~60Hz, internal
Operating Condition	Consumption	30 W
	Temperature	0 - 40°C
Physical	Humidity	0 - 90%
	Dimension (W*D*H)	340 x 153 x 395 mm
	Packing dimension (W*D*H)	395 x 130 x 395 mm
	Net weight	3,75 kg
	Gross weight	4,1 kg
	Tilt	-3° - 20°
	Kensington Lock
Controls	VESA mounting	100 mm
	Front control	Menu, +, - , Select,
		LED/Power
	On screen display	EN, SC, TC, DE, FR, IT,
Certification		ES, JS, DU
	Safety	CE, FCC, BSMI,
		UL/CUL, TUV/GS, CCC
	Emission	TCO99
Extras 1	Power saving
Extras 2
Extras 3
Accessories		Powercord, VGA-Cable,
		Audio-Cable, QSG,
		Manual (CD)

Specifications are subject to change without notice. Error accepted.
