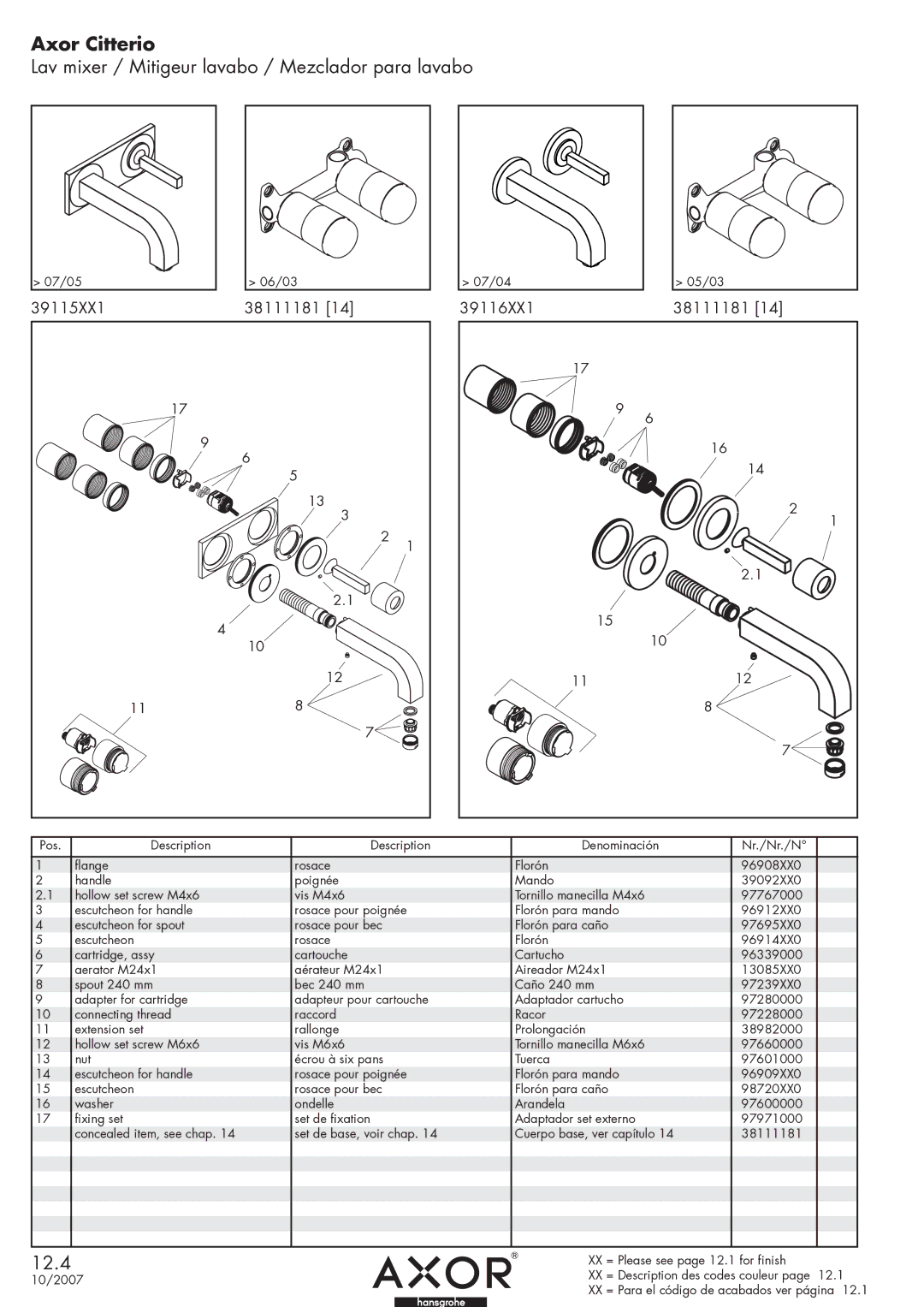

Axor Citterio
Lav mixer / Mitigeur lavabo / Mezclador para lavabo
> 07/05 | > 06/03 |
|
39115XX1 | 38111181 [14] |
|
| 17 |
|
| 9 |
|
| 6 |
|
| 5 |
|
| 13 |
|
| 3 |
|
| 2 | 1 |
|
| |
| 2.1 |
|
| 4 |
|
| 10 |
|
| 12 |
|
11 | 8 |
|
| 7 |
|
> 07/04 |
| > 05/03 |
|
39116XX1 |
| 38111181 [14] |
|
17 |
|
|
|
| 9 | 6 |
|
|
|
| |
|
| 16 |
|
|
| 14 |
|
|
| 2 | 1 |
|
|
| |
|
| 2.1 |
|
| 15 |
|
|
|
| 10 |
|
11 |
| 12 |
|
|
| 8 |
|
|
| 7 |
|
Pos. | Description | Description | Denominación | Nr./Nr./N° |
|
|
|
|
|
|
|
1 | flange | rosace | Florón | 96908XX0 |
|
2 | handle | poignée | Mando | 39092XX0 |
|
2.1 | hollow set screw M4x6 | vis M4x6 | Tornillo manecilla M4x6 | 97767000 |
|
3 | escutcheon for handle | rosace pour poignée | Florón para mando | 96912XX0 |
|
4 | escutcheon for spout | rosace pour bec | Florón para caño | 97695XX0 |
|
5 | escutcheon | rosace | Florón | 96914XX0 |
|
6 | cartridge, assy | cartouche | Cartucho | 96339000 |
|
7 | aerator M24x1 | aérateur M24x1 | Aireador M24x1 | 13085XX0 |
|
8 | spout 240 mm | bec 240 mm | Caño 240 mm | 97239XX0 |
|
9 | adapter for cartridge | adapteur pour cartouche | Adaptador cartucho | 97280000 |
|
10 | connecting thread | raccord | Racor | 97228000 |
|
11 | extension set | rallonge | Prolongación | 38982000 |
|
12 | hollow set screw M6x6 | vis M6x6 | Tornillo manecilla M6x6 | 97660000 |
|
13 | nut | écrou à six pans | Tuerca | 97601000 |
|
14 | escutcheon for handle | rosace pour poignée | Florón para mando | 96909XX0 |
|
15 | escutcheon | rosace pour bec | Florón para caño | 98720XX0 |
|
16 | washer | ondelle | Arandela | 97600000 |
|
17 | fixing set | set de fixation | Adaptador set externo | 97971000 |
|
| concealed item, see chap. 14 | set de base, voir chap. 14 | Cuerpo base, ver capítulo 14 | 38111181 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12. | XX = Please see page 12.1 for finish | |
10/2007 | XX = Description des codes couleur page 12.1 | |
XX = Para el código de acabados ver página 12.1 | ||
|
