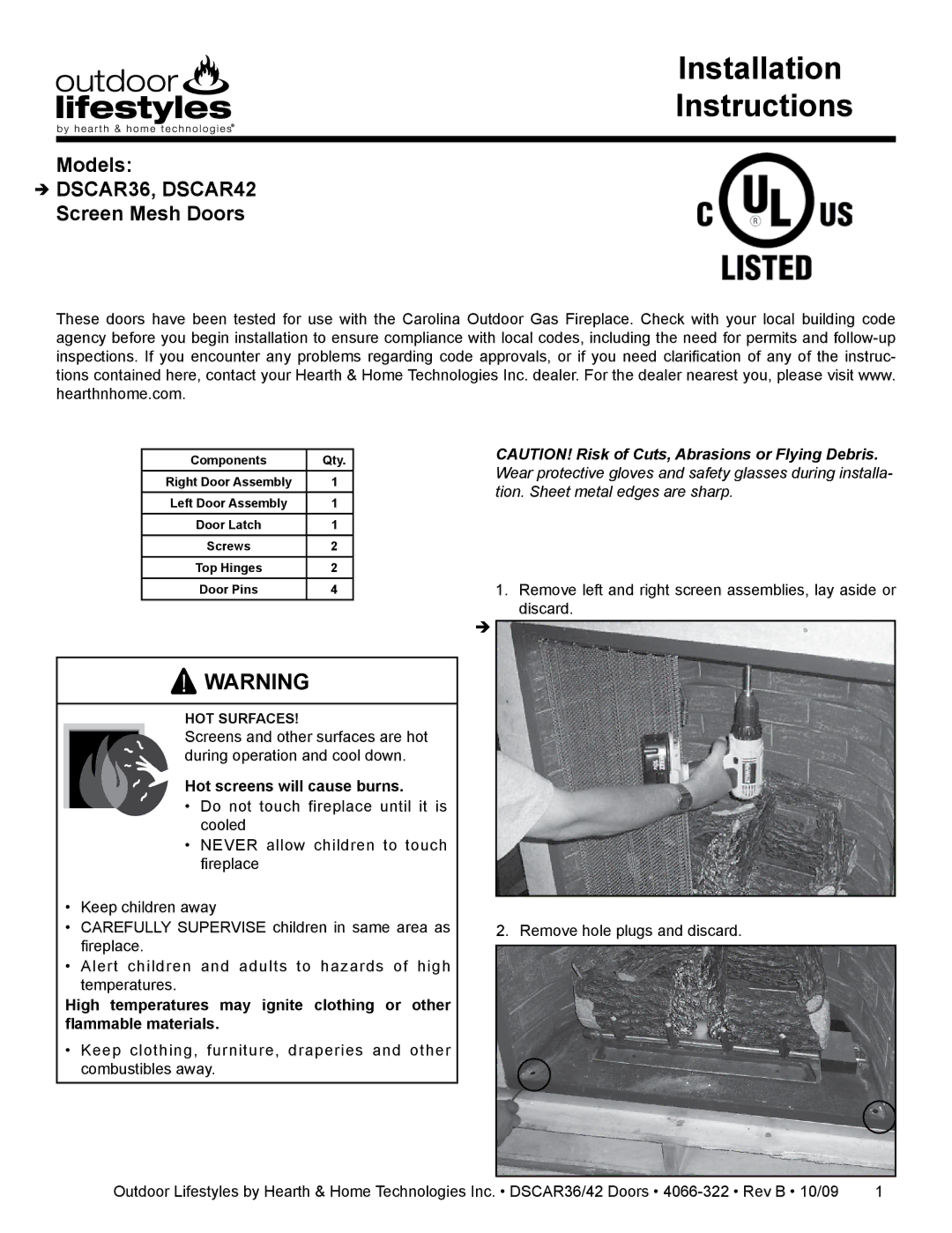

Installation

Instructions

Models:

DSCAR36, DSCAR42 Screen Mesh Doors

These doors have been tested for use with the Carolina Outdoor Gas Fireplace. Check with your local building code agency before you begin installation to ensure compliance with local codes, including the need for permits and follow-up inspections. If you encounter any problems regarding code approvals, or if you need clarification of any of the instruc- tions contained here, contact your Hearth & Home Technologies Inc. dealer. For the dealer nearest you, please visit www. hearthnhome.com.

Components

Qty.

Right Door Assembly

1

Left Door Assembly

1

Door Latch

1

Screws

2

Top Hinges

2

Door Pins

4

WARNING

HOT SURFACES!

Screens and other surfaces are hot during operation and cool down.

Hot screens will cause burns.

• Do not touch fireplace until it is cooled

NEVER allow children to touch fireplace

Keep children away

CAREFULLY SUPERVISE children in same area as fireplace.

Alert children and adults to hazards of high temperatures.

High temperatures may ignite clothing or other flammable materials.

Keep clothing, furniture, draperies and other combustibles away.

CAUTION! Risk of Cuts, Abrasions or Flying Debris. Wear protective gloves and safety glasses during installa- tion. Sheet metal edges are sharp.

1.Remove left and right screen assemblies, lay aside or discard.

2. Remove hole plugs and discard.

Outdoor Lifestyles by Hearth & Home Technologies Inc. • DSCAR36/42 Doors • 4066-322 • Rev B • 10/09

Page 1
Image 1
Hearth and Home Technologies DSCAR42 installation instructions Installation Instructions, Hot screens will cause burns

DSCAR36, DSCAR42 specifications

Hearth and Home Technologies has long been a leader in the hearth industry, and its DSCAR42 and DSCAR36 models showcase the company's commitment to quality, design, and innovation. These stunning fireplaces are part of the contemporary collection, offering a modern twist on traditional heating solutions that enhance the ambiance of any space.

The DSCAR42 and DSCAR36 models are distinguished by their elegant design, which features a clean face and a linear appearance that seamlessly fits into contemporary interiors. With their sleek lines and minimalist aesthetics, these fireplaces provide a captivating focal point that elevates the overall decor of a room. The use of high-quality materials ensures durability and longevity, making them not just a passing trend but a lasting investment.

One of the standout features of both models is the advanced technology that powers their performance. These fireplaces utilize a state-of-the-art direct vent system, allowing for efficient heating while minimizing heat loss. This ensures that users can enjoy a warm and comfortable environment without the worry of excessive energy consumption. Additionally, the DSCAR42 and DSCAR36 are equipped with high-efficiency burners that produce a superior flame presentation, creating mesmerizing visual effects and providing ample warmth.

The flames can be adjusted to suit individual preferences, allowing for a customized experience. Both models can be operated via a user-friendly remote control, giving homeowners the convenience of adjusting the heat and flame height without ever leaving their seat. This modern feature enhances usability, making the fireplaces an excellent choice for busy lifestyles.

In terms of installation, the DSCAR42 and DSCAR36 are designed for versatility. They can be installed in various settings, including walls, corners, or even as a centerpiece in a room. This flexibility enables homeowners to maximize their living space while adding aesthetic value. Additionally, the wide selection of decorative media options, such as crystal or stones, further enhances customization, allowing users to tailor the look of their fireplace to their unique tastes.

In summary, the Hearth and Home Technologies DSCAR42 and DSCAR36 models embody the perfect blend of innovation, efficiency, and style. They are designed to provide exceptional performance while simultaneously enhancing the beauty of any living space. With features that cater to modern lifestyles and a commitment to sustainability, these fireplaces are a smart choice for anyone looking to upgrade their home heating solution.
