CP-WX11000Professional Series

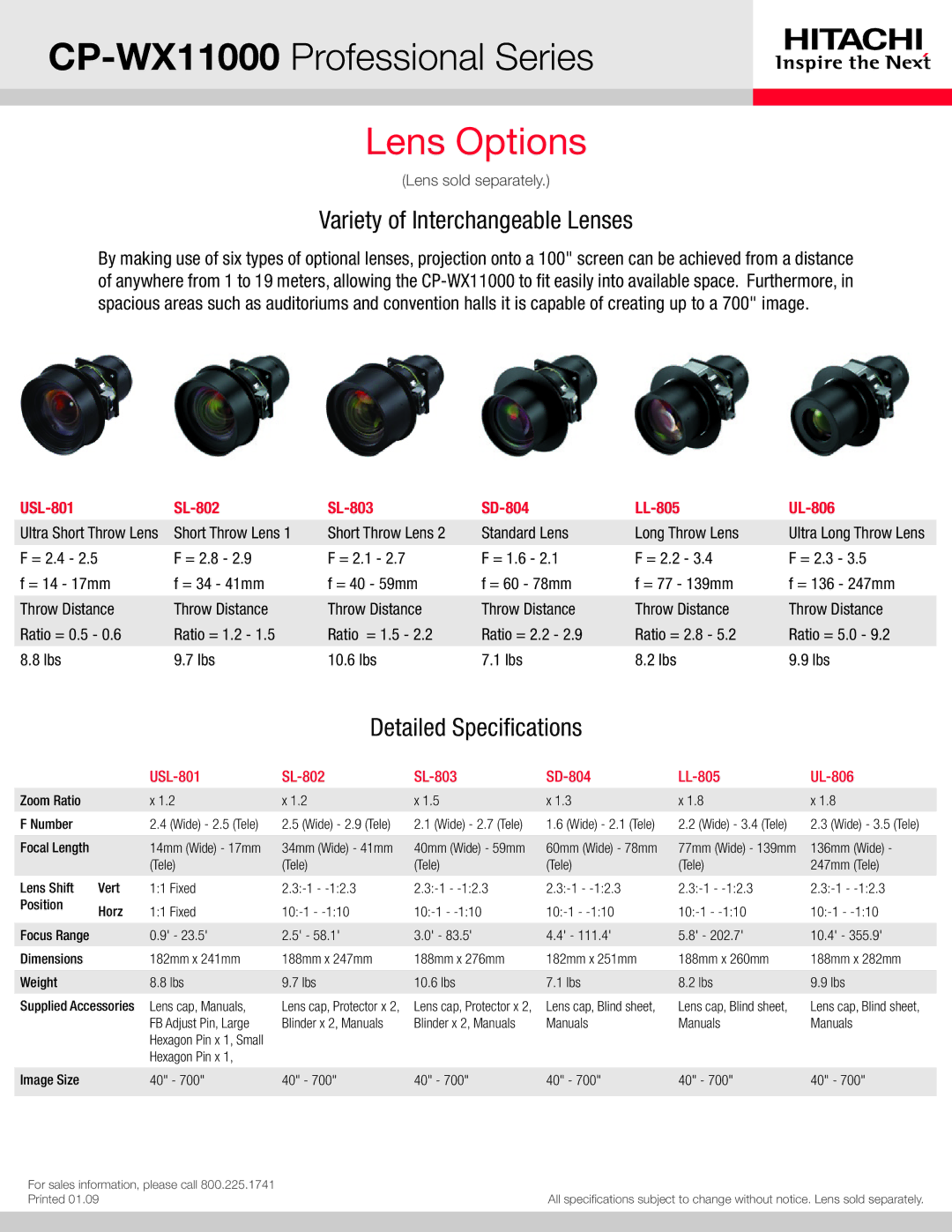

Lens Options

(Lens sold separately.)

Variety of Interchangeable Lenses

By making use of six types of optional lenses, projection onto a 100" screen can be achieved from a distance of anywhere from 1 to 19 meters, allowing the CP-WX11000 to fit easily into available space. Furthermore, in spacious areas such as auditoriums and convention halls it is capable of creating up to a 700" image.

USL-801

SL-802

SL-803

SD-804

LL-805

UL-806

Ultra Short Throw Lens

Short Throw Lens 1

Short Throw Lens 2

Standard Lens

Long Throw Lens

Ultra Long Throw Lens

F = 2.4 - 2.5

F = 2.8 - 2.9

F = 2.1 - 2.7

F = 1.6 - 2.1

F = 2.2 - 3.4

F = 2.3 - 3.5

f = 14 - 17mm

f = 34 - 41mm

f = 40 - 59mm

f = 60 - 78mm

f = 77 - 139mm

f = 136 - 247mm

Throw Distance

Throw Distance

Throw Distance

Throw Distance

Throw Distance

Throw Distance

Ratio = 0.5 - 0.6

Ratio = 1.2 - 1.5

Ratio = 1.5 - 2.2

Ratio = 2.2 - 2.9

Ratio = 2.8 - 5.2

Ratio = 5.0 - 9.2

8.8 lbs

9.7 lbs

10.6 lbs

7.1 lbs

8.2 lbs

9.9 lbs

Detailed Specifications





USL-801

SL-802

SL-803

SD-804

LL-805

UL-806

Zoom Ratio



x 1.2

x 1.2

x 1.5

x 1.3

x 1.8

x 1.8

F Number



2.4 (Wide) - 2.5 (Tele)

2.5 (Wide) - 2.9 (Tele)

2.1 (Wide) - 2.7 (Tele)

1.6 (Wide) - 2.1 (Tele)

2.2 (Wide) - 3.4 (Tele)

2.3 (Wide) - 3.5 (Tele)

Focal Length



14mm (Wide) - 17mm

34mm (Wide) - 41mm

40mm (Wide) - 59mm

60mm (Wide) - 78mm

77mm (Wide) - 139mm

136mm (Wide) -





(Tele)

(Tele)

(Tele)

(Tele)

(Tele)

247mm (Tele)

Lens Shift

Vert

1:1 Fixed

2.3:-1 - -1:2.3

2.3:-1 - -1:2.3

2.3:-1 - -1:2.3

2.3:-1 - -1:2.3

2.3:-1 - -1:2.3

Position

Horz

1:1 Fixed

10:-1 - -1:10

10:-1 - -1:10

10:-1 - -1:10

10:-1 - -1:10

10:-1 - -1:10



Focus Range



0.9' - 23.5'

2.5' - 58.1'

3.0' - 83.5'

4.4' - 111.4'

5.8' - 202.7'

10.4' - 355.9'

Dimensions



182mm x 241mm

188mm x 247mm

188mm x 276mm

182mm x 251mm

188mm x 260mm

188mm x 282mm

Weight



8.8 lbs

9.7 lbs

10.6 lbs

7.1 lbs

8.2 lbs

9.9 lbs

Supplied Accessories

Lens cap, Manuals,

Lens cap, Protector x 2,

Lens cap, Protector x 2,

Lens cap, Blind sheet,

Lens cap, Blind sheet,

Lens cap, Blind sheet,





FB Adjust Pin, Large

Blinder x 2, Manuals

Blinder x 2, Manuals

Manuals

Manuals

Manuals





Hexagon Pin x 1, Small















Hexagon Pin x 1,











Image Size



40" - 700"

40" - 700"

40" - 700"

40" - 700"

40" - 700"

40" - 700"

For sales information, please call 800.225.1741 Printed 01.09

All specifications subject to change without notice. Lens sold separately.
