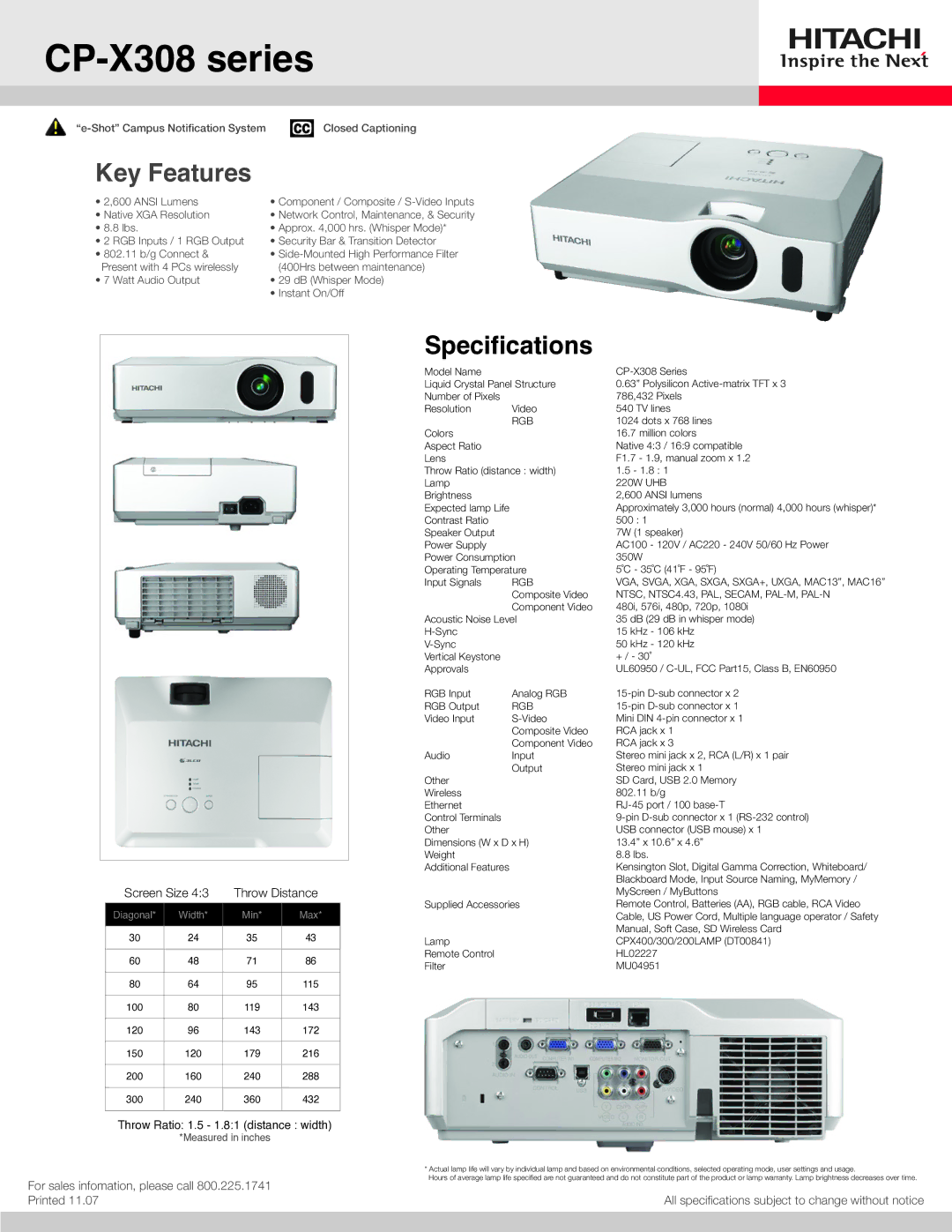

CP-X308 series

“e-Shot” Campus Notification System Closed Captioning

Key Features

• 2,600 ANSI Lumens	• Component / Composite / S-Video Inputs
• Native XGA Resolution	• Network Control, Maintenance, & Security
• 8.8 lbs.	• Approx. 4,000 hrs. (Whisper Mode)*
• 2 RGB Inputs / 1 RGB Output	• Security Bar & Transition Detector
• 802.11 b/g Connect &	• Side-Mounted High Performance Filter
Present with 4 PCs wirelessly	(400Hrs between maintenance)
• 7 Watt Audio Output	• 29 dB (Whisper Mode)
	• Instant On/Off

Screen Size 4:3		Throw Distance
Diagonal*	Width*	Min*	Max*
30	24	35	43
60	48	71	86
80	64	95	115
100	80	119	143
120	96	143	172
150	120	179	216
200	160	240	288
300	240	360	432

Throw Ratio: 1.5 - 1.8:1 (distance : width)

*Measured in inches

Specifications

Model Name		CP-X308 Series
Liquid Crystal Panel Structure		0.63” Polysilicon Active-matrix TFT x 3
Number of Pixels		786,432 Pixels
Resolution	Video	540 TV lines
	RGB	1024 dots x 768 lines
Colors		16.7 million colors
Aspect Ratio		Native 4:3 / 16:9 compatible
Lens		F1.7 - 1.9, manual zoom x 1.2
Throw Ratio (distance : width)		1.5 - 1.8 : 1
Lamp		220W UHB
Brightness		2,600 ANSI lumens
Expected lamp Life		Approximately 3,000 hours (normal) 4,000 hours (whisper)*
Contrast Ratio		500 : 1
Speaker Output		7W (1 speaker)
Power Supply		AC100 - 120V / AC220 - 240V 50/60 Hz Power
Power Consumption		350W
Operating Temperature		5˚C - 35˚C (41˚F - 95˚F)
Input Signals	RGB	VGA, SVGA, XGA, SXGA, SXGA+, UXGA, MAC13”, MAC16”
	Composite Video	NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N
	Component Video	480i, 576i, 480p, 720p, 1080i
Acoustic Noise Level		35 dB (29 dB in whisper mode)
H-Sync		15 kHz - 106 kHz
V-Sync		50 kHz - 120 kHz
Vertical Keystone		+ / - 30˚
Approvals		UL60950 / C-UL, FCC Part15, Class B, EN60950
RGB Input	Analog RGB	15-pin D-sub connector x 2
RGB Output	RGB	15-pin D-sub connector x 1
Video Input	S-Video	Mini DIN 4-pin connector x 1
	Composite Video	RCA jack x 1
	Component Video	RCA jack x 3
Audio	Input	Stereo mini jack x 2, RCA (L/R) x 1 pair
	Output	Stereo mini jack x 1
Other		SD Card, USB 2.0 Memory
Wireless		802.11 b/g
Ethernet		RJ-45 port / 100 base-T
Control Terminals		9-pin D-sub connector x 1 (RS-232 control)
Other		USB connector (USB mouse) x 1
Dimensions (W x D x H)		13.4” x 10.6” x 4.6”
Weight		8.8 lbs.
Additional Features		Kensington Slot, Digital Gamma Correction, Whiteboard/
		Blackboard Mode, Input Source Naming, MyMemory /
		MyScreen / MyButtons
Supplied Accessories		Remote Control, Batteries (AA), RGB cable, RCA Video
		Cable, US Power Cord, Multiple language operator / Safety
		Manual, Soft Case, SD Wireless Card
Lamp		CPX400/300/200LAMP (DT00841)
Remote Control		HL02227
Filter		MU04951

	* Actual lamp life will vary by individual lamp and based on environmental conditions, selected operating mode, user settings and usage.
For sales infomation, please call 800.225.1741	Hours of average lamp life specified are not guaranteed and do not constitute part of the product or lamp warranty. Lamp brightness decreases over time.
Printed 11.07	All specifications subject to change without notice
