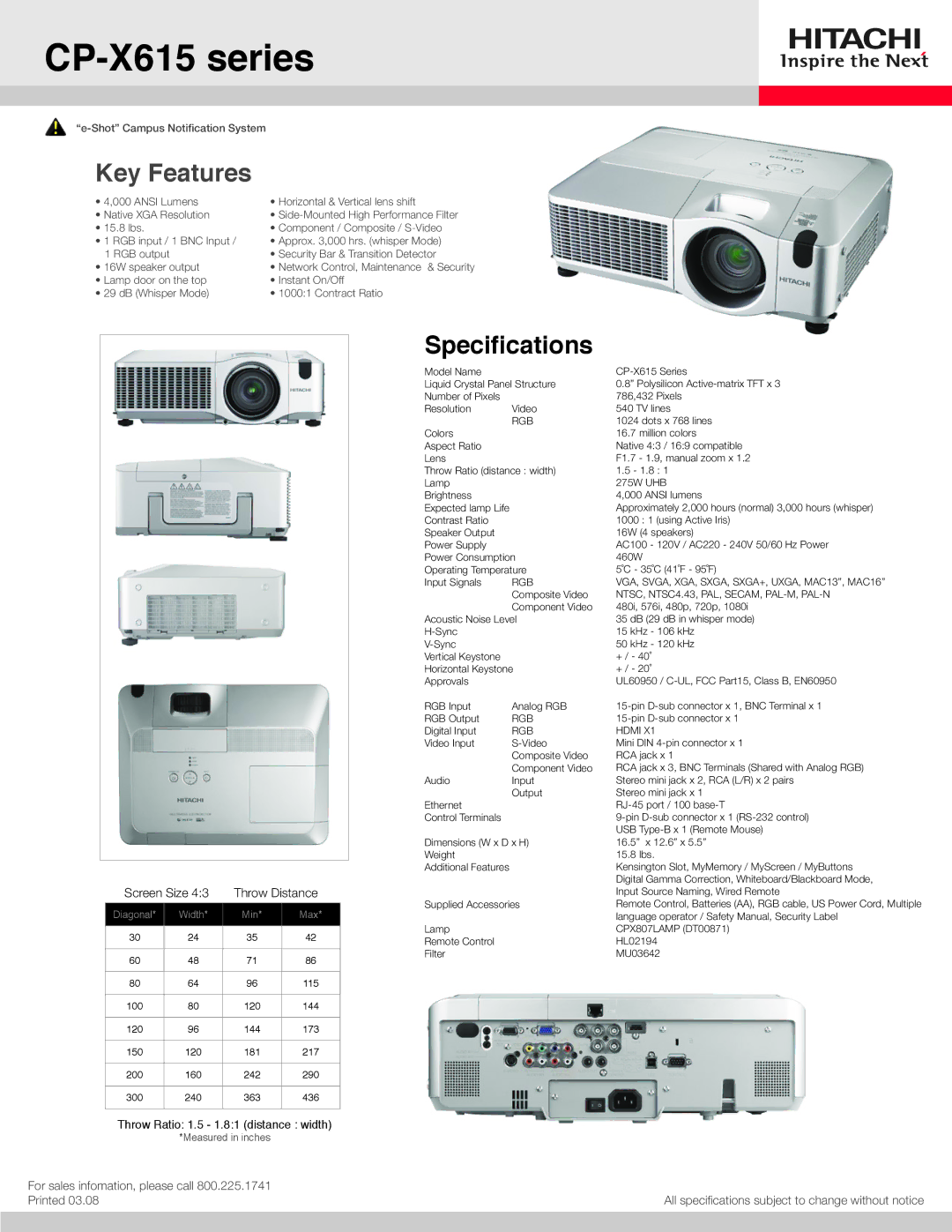

CP-X615 series

“e-Shot” Campus Notification System

Key Features

• 4,000 ANSI Lumens

• Horizontal & Vertical lens shift

• Native XGA Resolution

Side-Mounted High Performance Filter

• 15.8 lbs.

• Component / Composite / S-Video

• 1 RGB input / 1 BNC Input /

• Approx. 3,000 hrs. (whisper Mode)

1 RGB output

• Security Bar & Transition Detector

• 16W speaker output

• Network Control, Maintenance & Security

• Lamp door on the top

• Instant On/Off

• 29 dB (Whisper Mode)

• 1000:1 Contract Ratio

Screen Size 4:3

Throw Distance









Diagonal*

Width*

Min*

Max*









30

24

35

42









60

48

71

86









80

64

96

115









100

80

120

144









120

96

144

173









150

120

181

217









200

160

242

290









300

240

363

436









Throw Ratio: 1.5 - 1.8:1 (distance : width)

*Measured in inches

Specifications

Model Name



CP-X615 Series

Liquid Crystal Panel Structure

0.8” Polysilicon Active-matrix TFT x 3

Number of Pixels



786,432 Pixels

Resolution

Video

540 TV lines



RGB

1024 dots x 768 lines

Colors



16.7 million colors

Aspect Ratio



Native 4:3 / 16:9 compatible

Lens



F1.7 - 1.9, manual zoom x 1.2

Throw Ratio (distance : width)

1.5 - 1.8 : 1

Lamp



275W UHB

Brightness



4,000 ANSI lumens

Expected lamp Life



Approximately 2,000 hours (normal) 3,000 hours (whisper)

Contrast Ratio



1000 : 1 (using Active Iris)

Speaker Output



16W (4 speakers)

Power Supply



AC100 - 120V / AC220 - 240V 50/60 Hz Power

Power Consumption

460W

Operating Temperature

5˚C - 35˚C (41˚F - 95˚F)

Input Signals

RGB

VGA, SVGA, XGA, SXGA, SXGA+, UXGA, MAC13”, MAC16”



Composite Video

NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N



Component Video

480i, 576i, 480p, 720p, 1080i

Acoustic Noise Level

35 dB (29 dB in whisper mode)

H-Sync



15 kHz - 106 kHz

V-Sync



50 kHz - 120 kHz

Vertical Keystone



+ / - 40˚

Horizontal Keystone

+ / - 20˚

Approvals



UL60950 / C-UL, FCC Part15, Class B, EN60950

RGB Input

Analog RGB

15-pin D-sub connector x 1, BNC Terminal x 1

RGB Output

RGB

15-pin D-sub connector x 1

Digital Input

RGB

HDMI X1

Video Input

S-Video

Mini DIN 4-pin connector x 1



Composite Video

RCA jack x 1



Component Video

RCA jack x 3, BNC Terminals (Shared with Analog RGB)

Audio

Input

Stereo mini jack x 2, RCA (L/R) x 2 pairs



Output

Stereo mini jack x 1

Ethernet



RJ-45 port / 100 base-T

Control Terminals



9-pin D-sub connector x 1 (RS-232 control)





USB Type-B x 1 (Remote Mouse)

Dimensions (W x D x H)

16.5” x 12.6” x 5.5”

Weight



15.8 lbs.

Additional Features



Kensington Slot, MyMemory / MyScreen / MyButtons





Digital Gamma Correction, Whiteboard/Blackboard Mode,





Input Source Naming, Wired Remote

Supplied Accessories

Remote Control, Batteries (AA), RGB cable, US Power Cord, Multiple





language operator / Safety Manual, Security Label

Lamp



CPX807LAMP (DT00871)

Remote Control



HL02194

Filter



MU03642

For sales infomation, please call 800.225.1741



Printed 03.08

All specifications subject to change without notice
