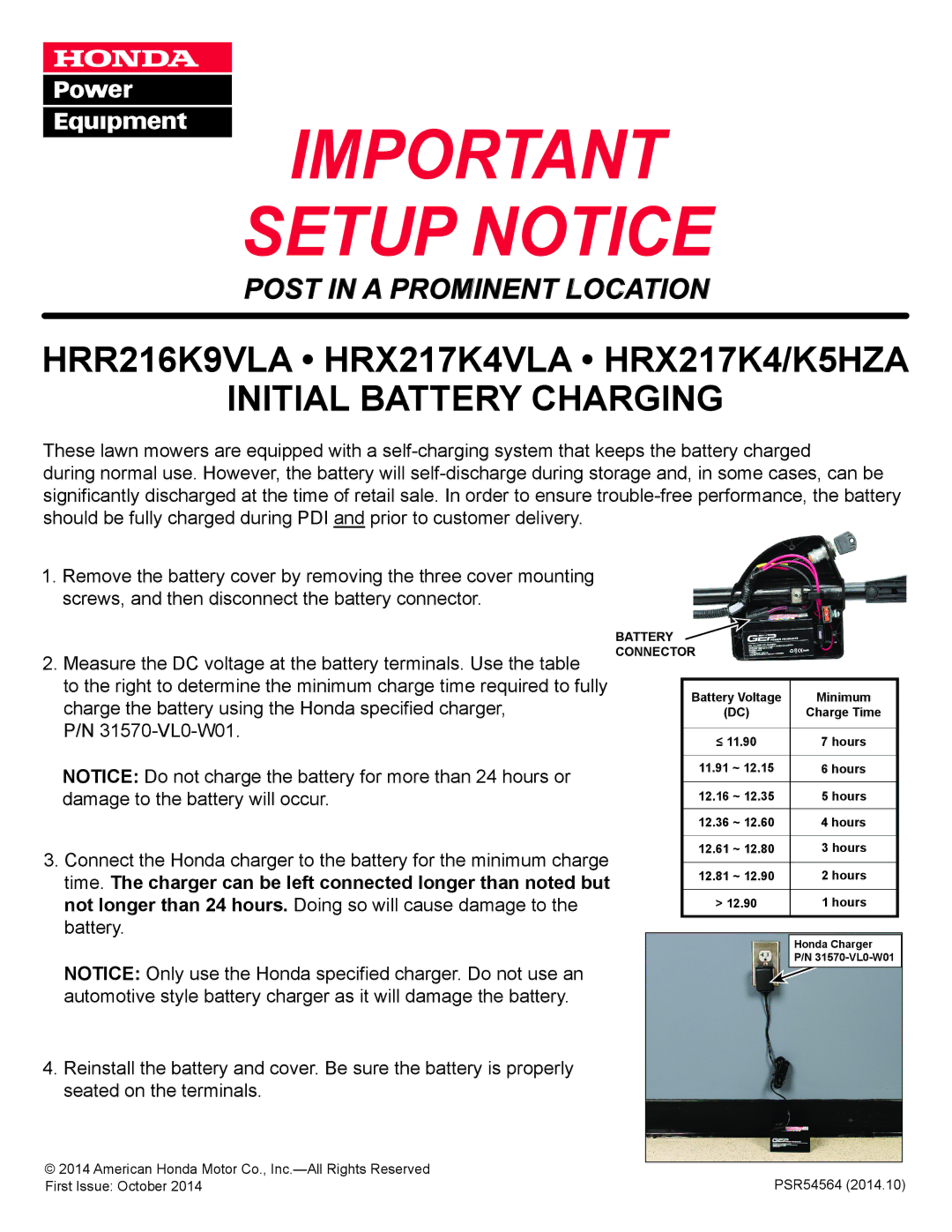

IMPORTANT SETUP NOTICE

POST IN A PROMINENT LOCATION

HRR216K9VLA • HRX217K4VLA • HRX217K4/K5HZA

INITIAL BATTERY CHARGING

These lawn mowers are equipped with a self-charging system that keeps the battery charged

during normal use. However, the battery will self-discharge during storage and, in some cases, can be significantly discharged at the time of retail sale. In order to ensure trouble-free performance, the battery should be fully charged during PDI and prior to customer delivery.

1.Remove the battery cover by removing the three cover mounting screws, and then disconnect the battery connector.

2.Measure the DC voltage at the battery terminals. Use the table

to the right to determine the minimum charge time required to fully charge the battery using the Honda specified charger,

P/N 31570-VL0-W01.

NOTICE: Do not charge the battery for more than 24 hours or damage to the battery will occur.

3.Connect the Honda charger to the battery for the minimum charge time. The charger can be left connected longer than noted but not longer than 24 hours. Doing so will cause damage to the battery.

NOTICE: Only use the Honda specified charger. Do not use an automotive style battery charger as it will damage the battery.

4.Reinstall the battery and cover. Be sure the battery is properly seated on the terminals.

BATTERY

CONNECTOR

Battery Voltage

Minimum

(DC)

Charge Time

≤ 11.90

7 hours

11.91 ~ 12.15

6 hours

12.16 ~ 12.35

5 hours

12.36 ~ 12.60

4 hours

12.61 ~ 12.80

3 hours

12.81 ~ 12.90

2 hours

> 12.90

1 hours











Honda Charger



P/N 31570-VL0-W01

© 2014 American Honda Motor Co., Inc.—All Rights Reserved

PSR54564 (2014.10)

First Issue: October 2014

Page 1
