Step 1: Identify your heating/cooling system

IMPORTANT: Thermostats are designed to work with specific heating/cooling systems, so it’s essential that you know your system type to avoid purchasing the wrong style.

Central Heat or Central Heat & Air — The most common system. Can be 24V gas or oil, hot water or electric.

Heat Pump — Heating and air conditioning combined into one unit. Can be single- or multi-stage.

Fireplace/Floor/Wall Furnace — Millivolt or 24V heating systems.

What To Look For

All thermostats share one common feature — a way to set the temperature. After that, every thermostat is different in terms of accuracy, reliability, number of features, display size and more. Here are a few features you should consider when choosing your thermostat.

Be Confident With Honeywell

Honeywell has been inventing and perfecting thermostats since 1885 and is the number one choice of homeowners and contractors. You can count on Honeywell products for superior design, engineering and efficiency.

Years

of

Superior

Comfort

Thermostats

How To Select The Right Honeywell

Electric Baseboard — Convectors, fan-forced heaters, electric baseboards and radiant ceilings.

Step 2: Choose your thermostat type

Programmable — Makes the most efficient use of your system by automatically adjusting the set temperature throughout the day. You let the thermostat know your preferred temperature

at different times of the day and night, then forget about it — the thermostat does the work. Best for people on the go or those seeking the most efficient energy savings.

See Step 3 for different programmable thermostat options.

Digital Non-Programmable — Non-programmable thermostat with a digital readout. Best for people who prefer manually

Menu-Driven Programming. Some programmable thermostats can be difficult to program, but menu-driven programming guides you through the process much like using an ATM.

Easy-To-Read Displays.

An easy-to-view dial or a backlit screen makes using the thermostat a pleasure. Many Honeywell models show both the set and current temperature, and some models also display the current time.

Auto Change From Heat To Cool. Automatically determines if your home needs heating or cooling to provide maxi- mum comfort.

4 Programmable Periods Per Day. Honeywell programmable thermo- stats allow settings for wake, leave, return and sleep to provide you with a full day of energy savings.

Precise Temperature Control.

Industry leading +/-1º accuracy maintains comfort.

Here To Help

If you have any questions about Honeywell thermostats, call our toll-free consumer hotline at 1-800-468-1502 or

visit yourhome.honeywell.com.

Thermostat For Your Comfort Zone

Whether your current thermostat simply needs replacement or you’re upgrading

for better energy efficiency, Honeywell has the right thermostat for you. For more than a century, homeowners have been depending upon Honeywell home comfort innovations. If you don’t see a thermostat you want or need more information, just visit yourhome.honeywell.com or call 1-800-468-1502.

controlled settings with the convenience of an easy-to-read LCD display.

Mechanical/Manual — Control the temperature setting manually. Best for people who are home often and prefer a fixed temperature.

Step 3

For programmable thermostats, select the options that best fit your lifestyle

7-Day— Ultimate flexibility. Set up to four program periods per day, every day. Great for people with busy schedules.

M T W T F S S

5-1-1-Day— One program for the weekdays; a separate program for Saturday and Sunday. Up to four program periods per day.

M T W T F S S

5-2-Day— Allows up to four programs per day, with separate programming for weekdays and weekends.

M T W T F S S

1 Week — One program for the entire week with 4 program periods.

M T W T F S S

Energy Savings. Save up to 33% on energy costs*

with a programmable thermostat

Smart Response® Technology. Knowing exactly how to plan your programming to make sure your home is heated or cooled at the right time can be hit or miss. Honeywell thermostats with Smart Response Technology take the guesswork out of programming to maximize comfort and energy savings.

*If used as directed. Savings may vary depending on geographic region and usage.

How To Install

Permanent Day and Time. All programming information is saved in the event of a power outage.

Filter Change Reminder. Keep your system operating at peak performance.

Designed to install in 15 minutes or less.

Automation and Control Solutions

Honeywell

1985 Douglas Drive North Golden Valley, MN 55422-3992 800-468-1502 yourhome.honeywell.com

67-5146 JJ

August 2010

© 2010 Honeywell International Inc.

A Complete Selection

From The Number One

Name In Comfort.







3 Install backplate and

4 Mount thermostat

1 Turn off power and remove

2 Label wires to match

old thermostat.



coded terminals.

connect wiring.

on backplate.











Page 1 Page 2
Page 1

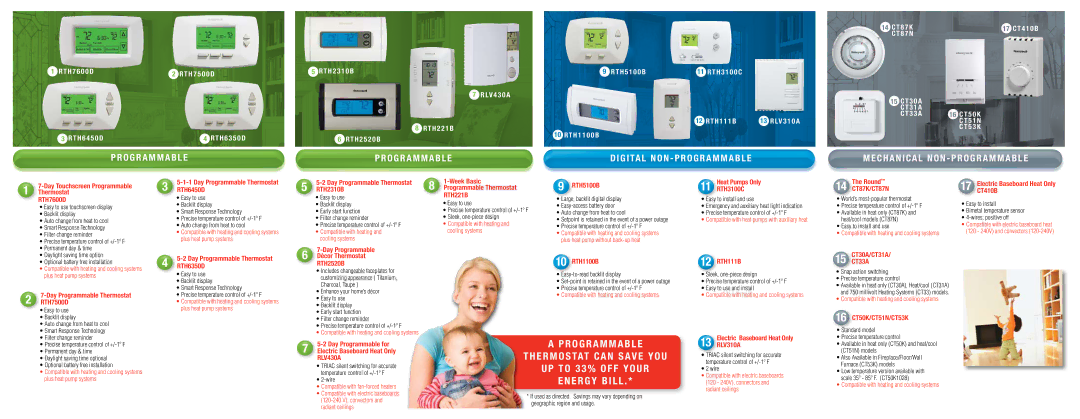

Image 1
Honeywell 67-5146 JJ manual Identify your heating/cooling system, Be Confident With Honeywell, Choose your thermostat type
Page 1 Page 2

67-5146 JJ specifications

The Honeywell 67-5146 JJ is an advanced programmable thermostat designed to offer exceptional control over home heating and cooling systems. Ideal for homeowners seeking energy efficiency and convenience, this model is equipped with a range of features that enhance its usability and functionality.

One of the standout features of the Honeywell 67-5146 JJ is its user-friendly interface, which features a large, easy-to-read digital display. This display provides clear information on the current temperature, set temperature, and system status, allowing users to make quick adjustments as needed. The intuitive controls simplify programming, making it easy for users to set daily schedules that align with their comfort preferences and energy-saving goals.

The thermostat offers flexible scheduling options, enabling users to program up to seven days of temperature settings. This feature is particularly useful for families with varying schedules, as it allows for custom heating and cooling patterns throughout the week. The setback temperatures can help homeowners save on energy bills by reducing heating or cooling when the home is unoccupied.

In terms of technology, the Honeywell 67-5146 JJ is compatible with a variety of heating and cooling systems, including gas, electric, heat pump, and some multi-stage systems. This compatibility ensures versatility in installation and usage, making it suitable for a wide range of residential settings.

Additionally, this model incorporates advanced features such as an adaptive recovery system. This system learns how long it takes to heat or cool a space and adjusts the pre-heating or pre-cooling times accordingly, ensuring that the desired temperature is reached by the programmed time. This technology not only enhances comfort but also contributes to energy efficiency.

Another notable characteristic is the thermostat's precise temperature control, which ensures that the home remains comfortable without significant fluctuations in temperature. The Honeywell 67-5146 JJ also comes with a filter change reminder, helping homeowners maintain their HVAC systems and improve overall air quality.

For those who prioritize ease of use, the Honeywell 67-5146 JJ is equipped with a backlit display, enabling visibility in low-light conditions. Users can easily monitor and adjust settings at any time of day or night.

In summary, the Honeywell 67-5146 JJ programmable thermostat combines advanced technology with user-friendly features to provide a reliable solution for home climate control, making it an excellent choice for those looking to enhance their home's efficiency and comfort.
