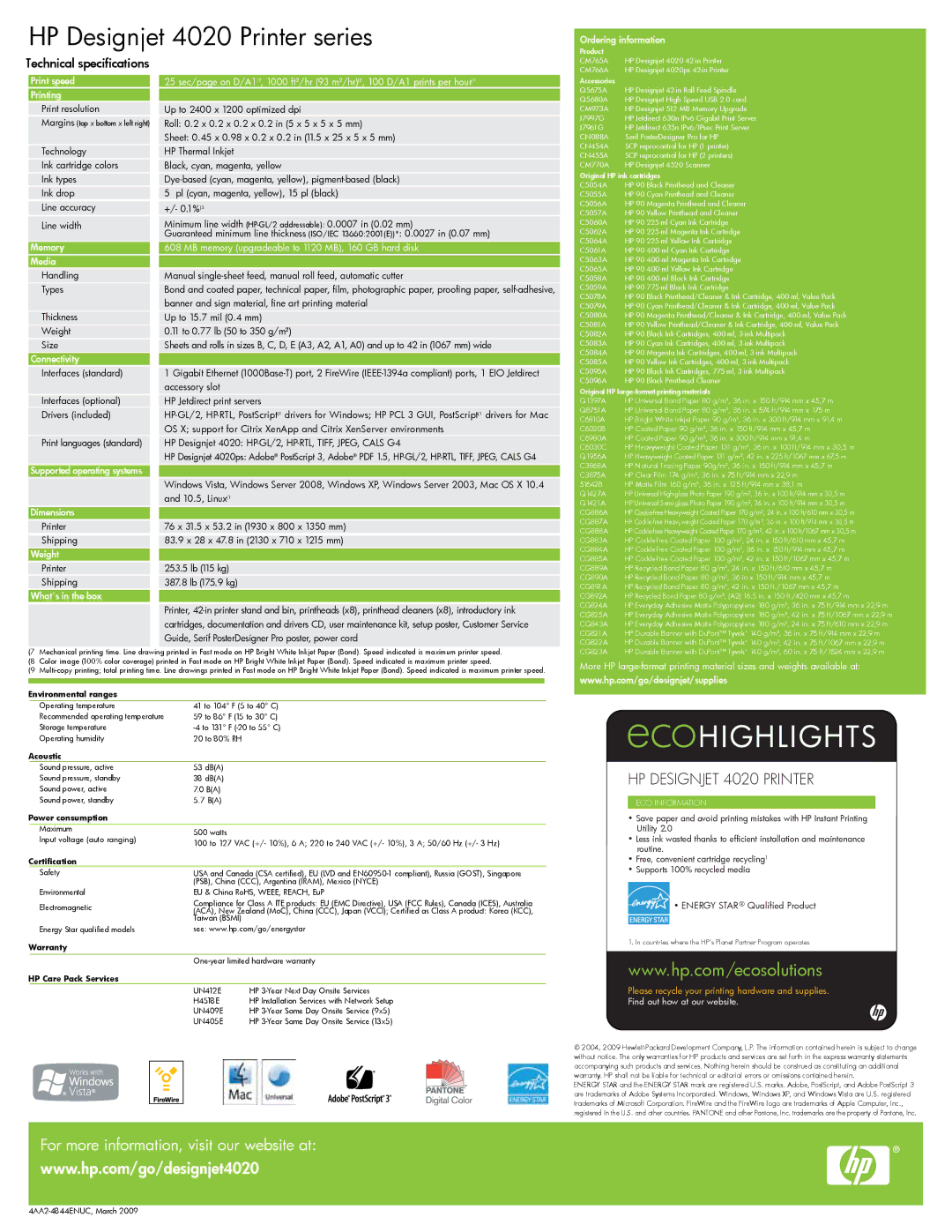

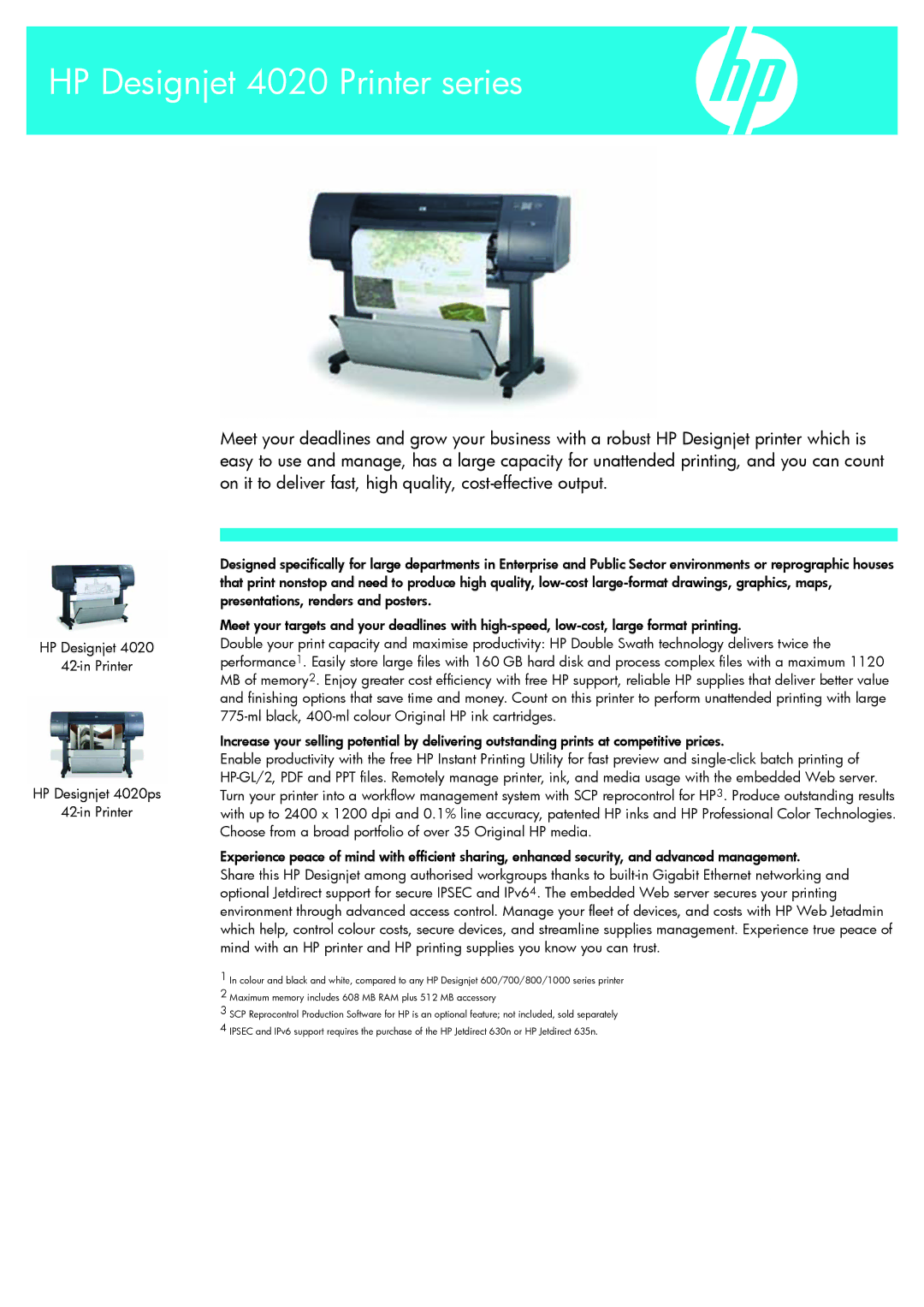

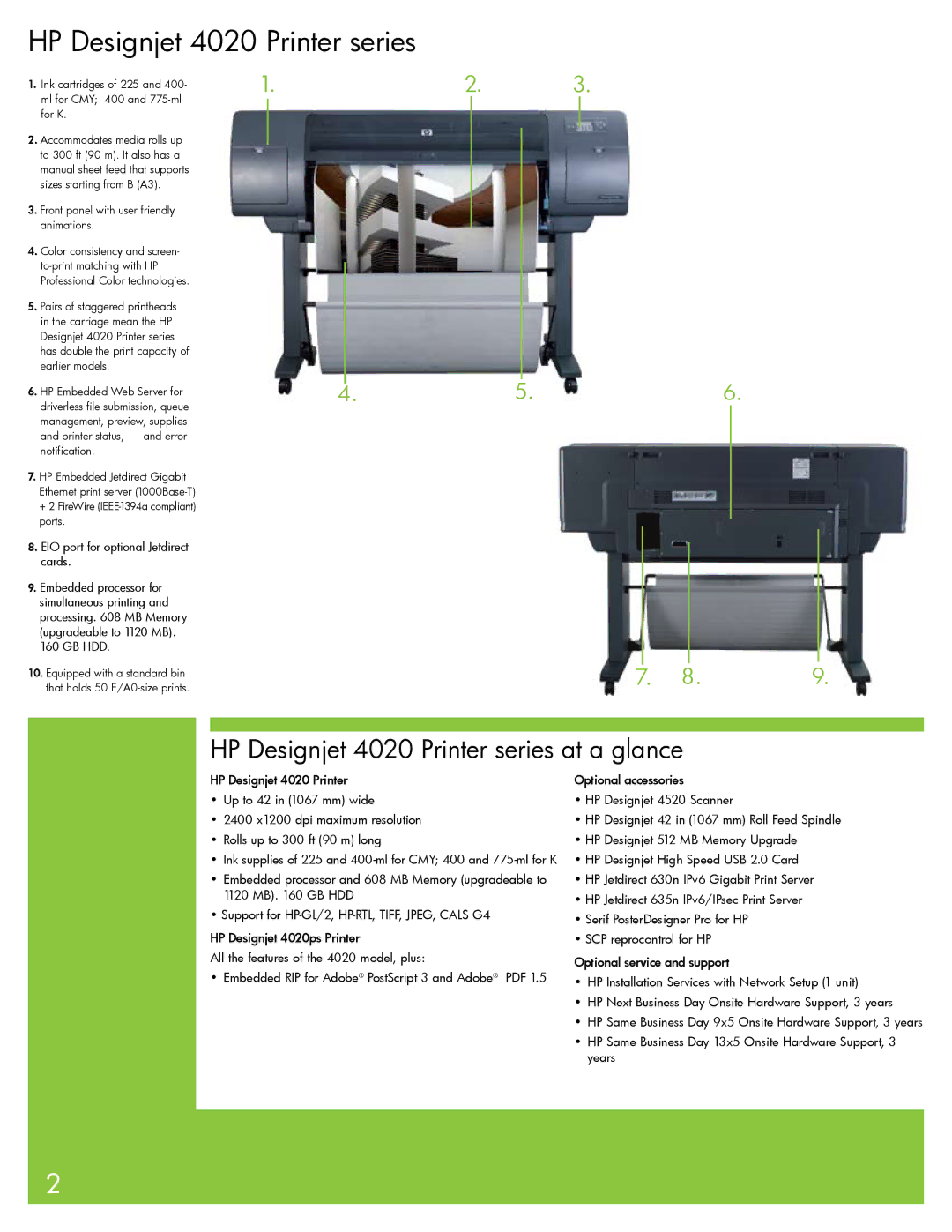

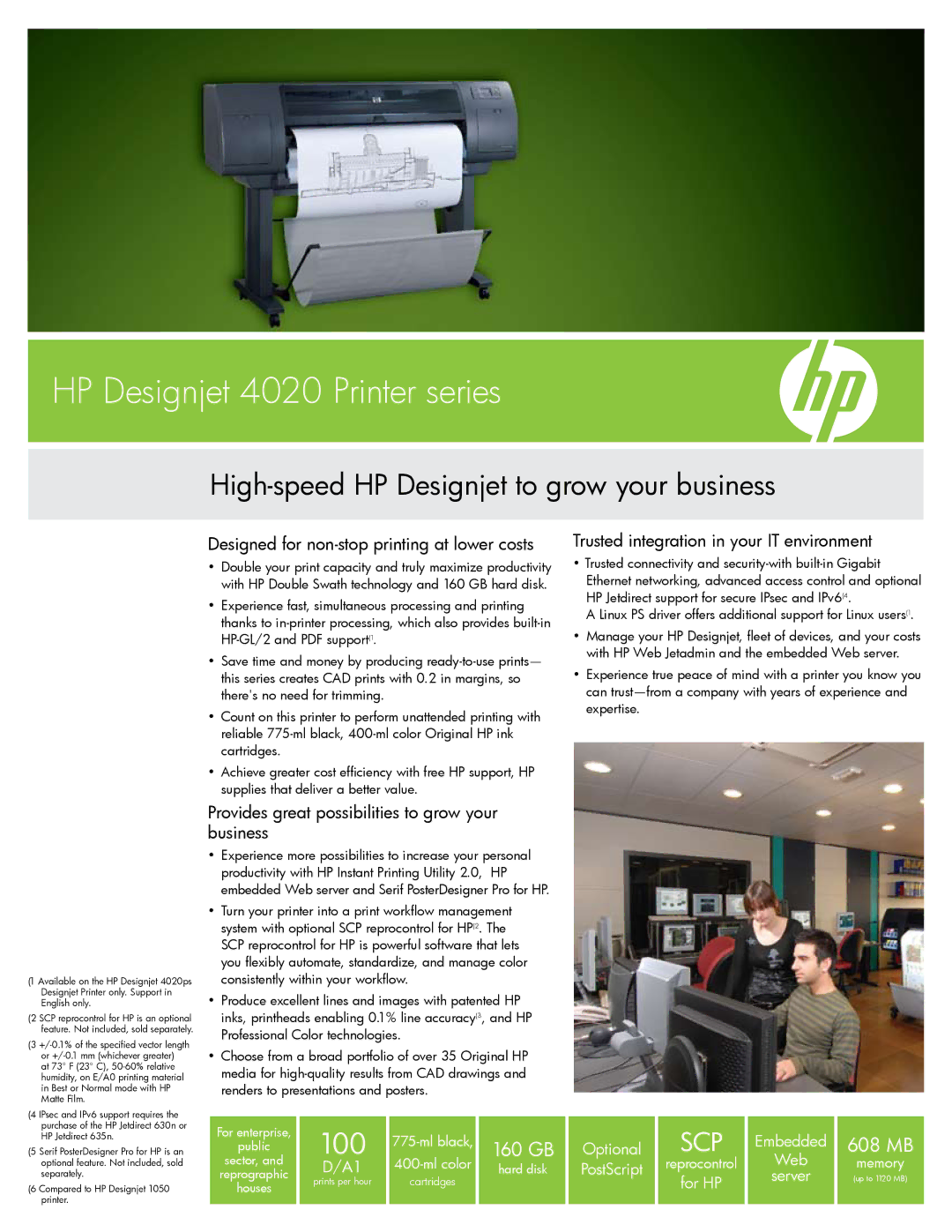

HP Designjet 4020 Printer series

Technical specifications

Print speed

25 sec/page on D/A1(7, 1000 ft²/hr (93 m²/hr)(8, 100 D/A1 prints per hour(9





Printing







Print resolution

Up to 2400 x 1200 optimized dpi





Margins (top x bottom x left right)

Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)



Sheet: 0.45 x 0.98 x 0.2 x 0.2 in (11.5 x 25 x 5 x 5 mm)





Technology

HP Thermal Inkjet





Ink cartridge colors

Black, cyan, magenta, yellow





Ink types

Dye-based (cyan, magenta, yellow), pigment-based (black)





Ink drop

5 pl (cyan, magenta, yellow), 15 pl (black)





Line accuracy

+/- 0.1%(3





Line width

Minimum line width (HP-GL/2 addressable): 0.0007 in (0.02 mm)



Guaranteed minimum line thickness (ISO/IEC 13660:2001(E))*: 0.0027 in (0.07 mm)

Memory

608 MB memory (upgradeable to 1120 MB), 160 GB hard disk

Media







Handling

Manual single-sheet feed, manual roll feed, automatic cutter

Types

Bond and coated paper, technical paper, film, photographic paper, proofing paper, self-adhesive,



banner and sign material, fine art printing material





Thickness

Up to 15.7 mil (0.4 mm)





Weight

0.11 to 0.77 lb (50 to 350 g/m²)





Size

Sheets and rolls in sizes B, C, D, E (A3, A2, A1, A0) and up to 42 in (1067 mm) wide





Connectivity







Interfaces (standard)

1 Gigabit Ethernet (1000Base-T) port, 2 FireWire (IEEE-1394a compliant) ports, 1 EIO Jetdirect



accessory slot





Interfaces (optional)

HP Jetdirect print servers

Drivers (included)

HP-GL/2, HP-RTL, PostScript(1 drivers for Windows; HP PCL 3 GUI, PostScript(1 drivers for Mac



OS X; support for Citrix XenApp and Citrix XenServer environments

Print languages (standard)

HP Designjet 4020: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4



HP Designjet 4020ps: Adobe® PostScript 3, Adobe® PDF 1.5, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4





Supported operating systems





Windows Vista, Windows Server 2008, Windows XP, Windows Server 2003, Mac OS X 10.4



and 10.5, Linux(1





Dimensions







Printer

76 x 31.5 x 53.2 in (1930 x 800 x 1350 mm)





Shipping

83.9 x 28 x 47.8 in (2130 x 710 x 1215 mm)

Weight







Printer

253.5 lb (115 kg)





Shipping

387.8 lb (175.9 kg)





What's in the box



Printer, 42-in printer stand and bin, printheads (x8), printhead cleaners (x8), introductory ink cartridges, documentation and drivers CD, user maintenance kit, setup poster, Customer Service Guide, Serif PosterDesigner Pro poster, power cord

(7 Mechanical printing time. Line drawing printed in Fast mode on HP Bright White Inkjet Paper (Bond). Speed indicated is maximum printer speed. (8 Color image (100% color coverage) printed in Fast mode on HP Bright White Inkjet Paper (Bond). Speed indicated is maximum printer speed.

(9 Multi-copy printing; total printing time. Line drawings printed in Fast mode on HP Bright White Inkjet Paper (Bond). Speed indicated is maximum printer speed.

Environmental ranges















Operating temperature



41 to 104° F (5 to 40° C)

Recommended operating temperature



59 to 86° F (15 to 30° C)

Storage temperature



-4 to 131° F (-20 to 55° C)

Operating humidity



20 to 80% RH











Acoustic















Sound pressure, active



53 dB(A)











Sound pressure, standby



38 dB(A)











Sound power, active



7.0 B(A)











Sound power, standby



5.7 B(A)











Power consumption















Maximum



500 watts











Input voltage (auto ranging)















100 to 127 VAC (+/- 10%), 6 A; 220 to 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)









Certification















Safety



USA and Canada (CSA certified), EU (LVD and EN60950-1 compliant), Russia (GOST), Singapore









(PSB), China (CCC), Argentina (IRAM), Mexico (NYCE)

Environmental



EU & China RoHS, WEEE, REACH, EuP

Electromagnetic



Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia



(ACA), New Zealand (MoC), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC),









Taiwan (BSMI)











Energy Star qualified models



see: www.hp.com/go/energystar

Warranty









































One-year limited hardware warranty

HP Care Pack Services























UN412E

HP 3-Year Next Day Onsite Services









H4518E

HP Installation Services with Network Setup









UN409E

HP 3-Year Same Day Onsite Service (9x5)









UN405E

HP 3-Year Same Day Onsite Service (13x5)













































































































































For more information, visit our website at:
www.hp.com/go/designjet4020

Ordering information

Product

CM765A HP Designjet 4020 42-in Printer

CM766A HP Designjet 4020ps 42-in Printer

Accessories

Q5675A HP Designjet 42-in Roll Feed Spindle

Q5680A HP Designjet High Speed USB 2.0 card

CM973A HP Designjet 512 MB Memory Upgrade

J7997G HP Jetdirect 630n IPv6 Gigabit Print Server

J7961G HP Jetdirect 635n IPv6/IPsec Print Server

CN088A Serif PosterDesigner Pro for HP

CN454A SCP reprocontrol for HP (1 printer)

CN455A SCP reprocontrol for HP (2 printers)

CM770A HP Designjet 4520 Scanner

Original HP ink cartridges

C5054A HP 90 Black Printhead and Cleaner

C5055A HP 90 Cyan Printhead and Cleaner

C5056A HP 90 Magenta Printhead and Cleaner

C5057A HP 90 Yellow Printhead and Cleaner

C5060A HP 90 225-ml Cyan Ink Cartridge

C5062A HP 90 225-ml Magenta Ink Cartridge

C5064A HP 90 225-ml Yellow Ink Cartridge

C5061A HP 90 400-ml Cyan Ink Cartridge

C5063A HP 90 400-ml Magenta Ink Cartridge

C5065A HP 90 400-ml Yellow Ink Cartridge

C5058A HP 90 400-ml Black Ink Cartridge

C5059A HP 90 775-ml Black Ink Cartridge

C5078A HP 90 Black Printhead/Cleaner & Ink Cartridge, 400-ml, Value Pack

C5079A HP 90 Cyan Printhead/Cleaner & Ink Cartridge, 400-ml, Value Pack

C5080A HP 90 Magenta Printhead/Cleaner & Ink Cartridge, 400-ml, Value Pack

C5081A HP 90 Yellow Printhead/Cleaner & Ink Cartridge, 400-ml, Value Pack

C5082A HP 90 Black Ink Cartridges, 400-ml, 3-ink Multipack

C5083A HP 90 Cyan Ink Cartridges, 400-ml, 3-ink Multipack

C5084A HP 90 Magenta Ink Cartridges, 400-ml, 3-ink Multipack

C5085A HP 90 Yellow Ink Cartridges, 400-ml, 3-ink Multipack

C5095A HP 90 Black Ink Cartridges, 775-ml, 3-ink Multipack

C5096A HP 90 Black Printhead Cleaner

Original HP large-format printing materials

Q1397A HP Universal Bond Paper 80 g/m², 36 in. x 150 ft/914 mm x 45,7 m

Q8751A HP Universal Bond Paper 80 g/m², 36 in. x 574 ft/914 mm x 175 m

C6810A HP Bright White Inkjet Paper 90 g/m2, 36 in. x 300 ft/914 mm x 91,4 m

C6020B HP Coated Paper 90 g/m², 36 in. x 150 ft/914 mm x 45,7 m

C6980A HP Coated Paper 90 g/m², 36 in. x 300 ft/914 mm x 91,4 m

C6030C HP Heavyweight Coated Paper 131 g/m², 36 in. x 100 ft/914 mm x 30,5 m

Q1956A HP Heavyweight Coated Paper 131 g/m², 42 in. x 225 ft/1067 mm x 67,5 m

C3868A HP Natural Tracing Paper 90g/m², 36 in. x 150 ft/914 mm x 45,7 m

C3875A HP Clear Film 174 g/m², 36 in. x 75 ft/914 mm x 22,9 m

51642B HP Matte Film 160 g/m², 36 in. x 125 ft/914 mm x 38,1 m

Q1427A HP Universal High-gloss Photo Paper 190 g/m², 36 in. x 100 ft/914 mm x 30,5 m

Q1421A HP Universal Semi-gloss Photo Paper 190 g/m², 36 in. x 100 ft/914 mm x 30,5 m

CG886A HP Cockle-free Heavyweight Coated Paper 170 g/m², 24 in. x 100 ft/610 mm x 30,5 m

CG887A HP Cockle-free Heavyweight Coated Paper 170 g/m², 36 in. x 100 ft/914 mm x 30,5 m

CG888A HP Cockle-free Heavyweight Coated Paper 170 g/m², 42 in. x 100 ft/1067 mm x 30,5 m

CG883A HP Cockle-free Coated Paper 100 g/m², 24 in. x 150 ft/610 mm x 45,7 m

CG884A HP Cockle-free Coated Paper 100 g/m², 36 in. x 150 ft/914 mm x 45,7 m

CG885A HP Cockle-free Coated Paper 100 g/m², 42 in. x 150 ft/1067 mm x 45,7 m

CG889A HP Recycled Bond Paper 80 g/m², 24 in. x 150 ft/610 mm x 45,7 m

CG890A HP Recycled Bond Paper 80 g/m², 36 in x 150 ft/914 mm x 45,7 m

CG891A HP Recycled Bond Paper 80 g/m², 42 in. x 150 ft./1067 mm x 45,7 m

CG892A HP Recycled Bond Paper 80 g/m², (A2) 16.5 in. x 150 ft./420 mm x 45,7 m

CG824A HP Everyday Adhesive Matte Polypropylene 180 g/m², 36 in. x 75 ft/914 mm x 22,9 m

CG825A HP Everyday Adhesive Matte Polypropylene 180 g/m², 42 in. x 75 ft/1067 mm x 22,9 m

CG843A HP Everyday Adhesive Matte Polypropylene 180 g/m², 24 in. x 75 ft/610 mm x 22,9 m

CG821A HP Durable Banner with DuPont™ Tyvek® 140 g/m², 36 in. x 75 ft/914 mm x 22,9 m

CG822A HP Durable Banner with DuPont™ Tyvek® 140 g/m², 42 in. x 75 ft/1067 mm x 22,9 m

CG823A HP Durable Banner with DuPont™ Tyvek® 140 g/m², 60 in. x 75 ft/1524 mm x 22,9 m

More HP large-format printing material sizes and weights available at: www.hp.com/go/designjet/supplies

HP DESIGNJET 4020 PRINTER

ECO INFORMATION

•Save paper and avoid printing mistakes with HP Instant Printing Utility 2.0

•Less ink wasted thanks to efficient installation and maintenance routine.

•Free, convenient cartridge recycling1

•Supports 100% recycled media

• ENERGY STAR® Qualified Product

1.In countries where the HP’s Planet Partner Program operates

www.hp.com/ecosolutions

Please recycle your printing hardware and supplies.

Find out how at our website.
