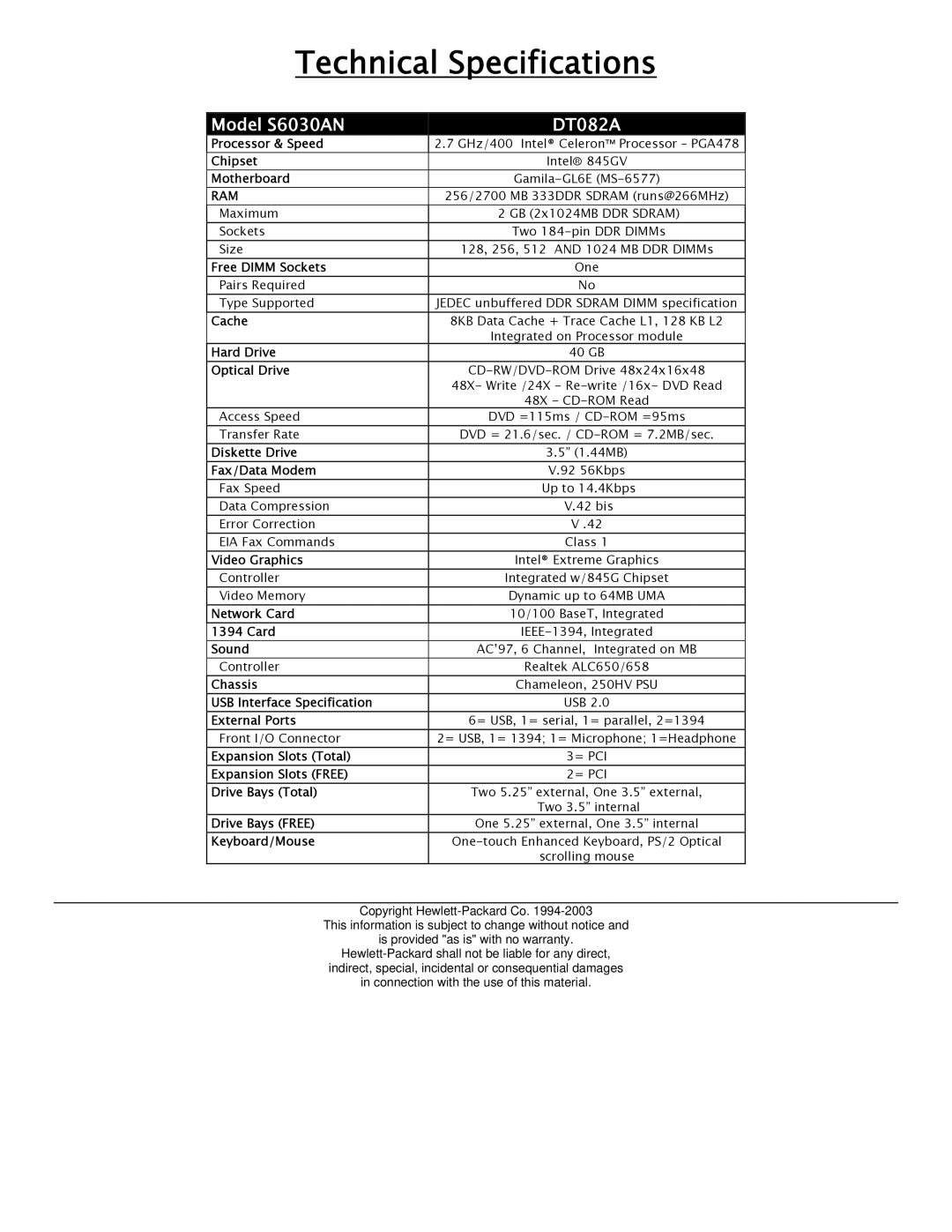

Technical Specifications



Model S6030AN



DT082A





Processor & Speed



2.7 GHz/400 Intel® CeleronProcessor – PGA478





Chipset



Intel® 845GV





Motherboard

Gamila-GL6E (MS-6577)





RAM

256/2700 MB 333DDR SDRAM (runs@266MHz)





Maximum

2 GB (2x1024MB DDR SDRAM)





Sockets

Two 184-pin DDR DIMMs





Size

128, 256, 512 AND 1024 MB DDR DIMMs





Free DIMM Sockets

One





Pairs Required

No





Type Supported

JEDEC unbuffered DDR SDRAM DIMM specification





Cache

8KB Data Cache + Trace Cache L1, 128 KB L2









Integrated on Processor module





Hard Drive

40 GB





Optical Drive

CD-RW/DVD-ROM Drive 48x24x16x48









48X- Write /24X - Re-write /16x- DVD Read









48X - CD-ROM Read





Access Speed

DVD =115ms / CD-ROM =95ms





Transfer Rate

DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.





Diskette Drive

3.5” (1.44MB)





Fax/Data Modem

V.92 56Kbps





Fax Speed

Up to 14.4Kbps





Data Compression

V.42 bis





Error Correction

V .42





EIA Fax Commands

Class 1





Video Graphics

Intel® Extreme Graphics





Controller

Integrated w/845G Chipset





Video Memory

Dynamic up to 64MB UMA





Network Card

10/100 BaseT, Integrated





1394 Card

IEEE-1394, Integrated





Sound

AC’97, 6 Channel, Integrated on MB





Controller

Realtek ALC650/658





Chassis

Chameleon, 250HV PSU





USB Interface Specification

USB 2.0





External Ports

6= USB, 1= serial, 1= parallel, 2=1394





Front I/O Connector

2= USB, 1= 1394; 1= Microphone; 1=Headphone





Expansion Slots (Total)

3= PCI





Expansion Slots (FREE)

2= PCI





Drive Bays (Total)

Two 5.25” external, One 3.5” external,









Two 3.5” internal





Drive Bays (FREE)

One 5.25” external, One 3.5” internal





Keyboard/Mouse

One-touch Enhanced Keyboard, PS/2 Optical









scrolling mouse



Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Page 1
