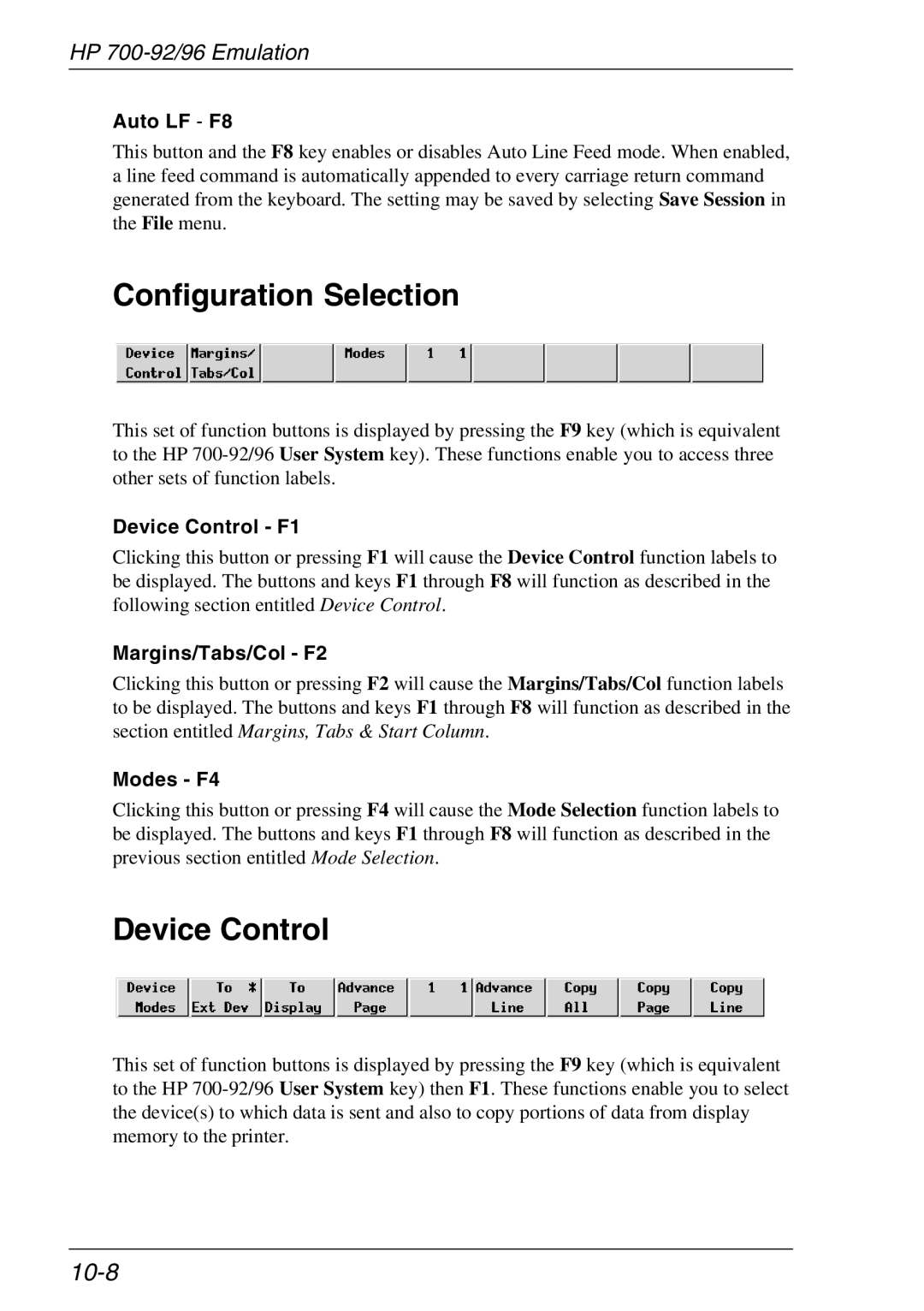

HP Teemtalk Licenses, Teemtalk LTU and Media manual Configuration Selection, Device Control, 10-8

HP 700-92/96 Emulation

Auto LF - F8

This button and the F8 key enables or disables Auto Line Feed mode. When enabled, a line feed command is automatically appended to every carriage return command generated from the keyboard. The setting may be saved by selecting Save Session in the File menu.

Configuration Selection

This set of function buttons is displayed by pressing the F9 key (which is equivalent to the HP 700-92/96 User System key). These functions enable you to access three other sets of function labels.

Device Control - F1

Clicking this button or pressing F1 will cause the Device Control function labels to be displayed. The buttons and keys F1 through F8 will function as described in the following section entitled Device Control.

Margins/Tabs/Col - F2

Clicking this button or pressing F2 will cause the Margins/Tabs/Col function labels to be displayed. The buttons and keys F1 through F8 will function as described in the section entitled Margins, Tabs & Start Column.

Modes - F4

Clicking this button or pressing F4 will cause the Mode Selection function labels to be displayed. The buttons and keys F1 through F8 will function as described in the previous section entitled Mode Selection.

Device Control

This set of function buttons is displayed by pressing the F9 key (which is equivalent to the HP 700-92/96 User System key) then F1. These functions enable you to select the device(s) to which data is sent and also to copy portions of data from display memory to the printer.

10-8
