Materiales

(no dibujados a escala)

x 2

3” Tornillo, de madera

x 2

1.5” Tornillo,

de madera

x 4

Arandela, plana

x 2

Tornillo de fijación

x 4

Tornillo, de campana

x 4

Aislador de montaje



x 9

Tornillo prisionero



x 13

Tornillo, de armadura



de soporte de paleta



x 13

Tornillo, de conjunto



de paleta

x 1

Kit de



equilibrado





x 3

Tornillo, del conjunto



de la caja del interruptor

x 4

Empalme



plástico





x 3

Tornillo



mecánico, 6-32

Piezas del ventilador

(no dibujadas a escala)

Conjunto del soporte de suspensión

de conjunto de paleta

Conjunto del interruptor/ alojamiento

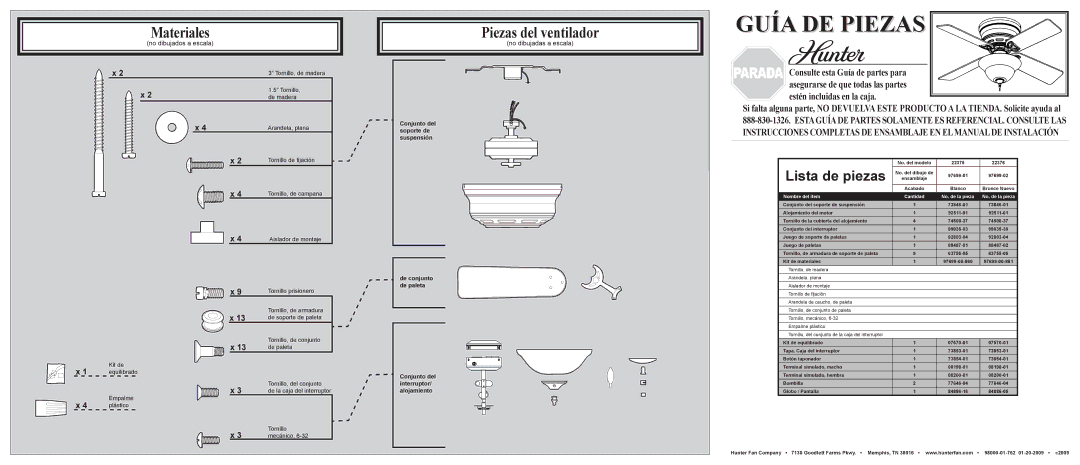

GUÍA DE PIEZAS

PARADA Consulte esta Guía de partes para asegurarse de que todas las partes estén incluidas en la caja.

Si falta alguna parte, NO DEVUELVA ESTE PRODUCTO A LA TIENDA. Solicite ayuda al 888-830-1326. ESTAGUÍADE PARTES SOLAMENTE ES REFERENCIAL. CONSULTE LAS INSTRUCCIONES COMPLETAS DE ENSAMBLAJE EN ELMANUALDE INSTALACIÓN





No. del modelo

22375

22376



Lista de piezas

No. del dibujo de

97699-01

97699-02









ensamblaje























Acabado

Blanco

Bronce Nuevo



Nombre del ítem

Cantidad

No. de la pieza

No. de la pieza



Conjunto del soporte de suspensión

1

73846-01

73846-01



Alojamiento del motor

1

92511-01

92511-01



Tornillo de la cubierta del alojamiento

4

74508-37

74508-37



Conjunto del interruptor

1

99035-03

99035-30



Juego de soporte de paletas

1

92803-04

92803-04



Juego de paletas

1

88487-01

88487-02



Tornillo, de armadura de soporte de paleta

9

63755-05

63755-05



Kit de materiales

1

97699-00-860

97699-00-861



Tornillo, de madera



















Arandela, plana









Aislador de montaje



















Tornillo de fijación









Arandela de caucho, de paleta









Tornillo, de conjunto de paleta



















Tornillo, mecánico, 6-32









Empalme plástico



















Tornillo, del conjunto de la caja del interruptor









Kit de equilibrado

1

07570-01

07570-01



Tapa, Caja del interruptor

1

73853-01

73853-01



Botón taponador

1

73854-01

73854-01



Terminal simulado, macho

1

08198-01

08198-01



Terminal simulado, hembra

1

08200-01

08200-01



Bombilla

2

77646-04

77646-04



Globo / Pantalla

1

84886-16

84886-05

Hunter Fan Company • 7130 Goodlett Farms Pkwy. • Memphis, TN 38016 • www.hunterfan.com • 98000-01-762 01-20-2009©2009
