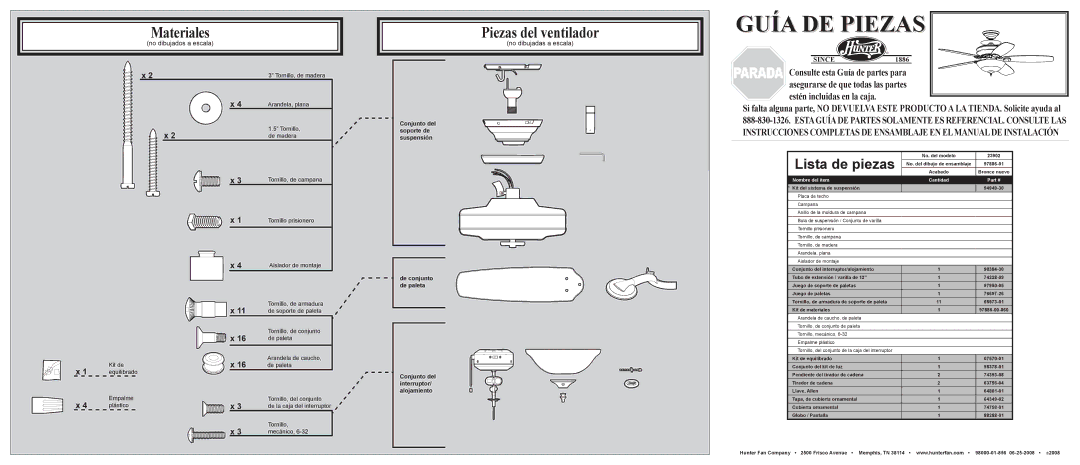

Hardware

(Drawn to Scale)

x 2

3” Wood Screw

x 4

Flat Washer

x 2

1.5” Wood Screw

x 3

Canopy Screw

x 1

Setscrew

x 4

Mounting

Isololator





x 11

Screw, Blade





Iron Armature





x 16

Screw, Blade





Assembly





x 16

Blade



Balancing

Grommet

x 1





Kit







Wire

x 3

Screw, Switch

x 4

Housing Assembly

Connector









x 3

Screw,





Machine, 6-32

Fan Parts

(Not Drawn to Scale)

Hanger

Bracket

Assembly

Blade

Assembly

Switch

Housing

Assembly

PARTS GUIDE



R

SINCE

1886

Using this Parts Guide, make sure all parts are included in the box.

If parts are missing, DO NOT RETURN THIS ITEM TO THE STORE, call 888-830-1326 for assistance.

THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULLASSEMBLY INSTRUCTIONS.



Parts List

Model #

23902



Finish

New Bronze





Asm. Dwg. #

97886-01











Item Name

Qnty

Part #

* Hanging System Kit



94949-30



Ceiling Plate















Canopy







Canopy Trim Ring















Hanger Ball / Downrod Assembly







Setscrew















Canopy Screw







Wood Screw















Flat Washer















Mounting Isolator







Switch/Housing Assembly

1

98384-30



Extension Pipe / 12” Downrod

1

74228-09



Blade Iron Set

1

97950-05



Blade Set

1

76697-26



Screw, Blade Iron Armature

11

65973-01



Hardware Kit

1

97886-00-860



Blade Grommet







Blade Assembly Screw















Screw, Machine, 6-32







Wire Connector















Screw, Switch Housing Assembly







Balancing Kit

1

07570-01



Light Kit Assembly

1

98378-01



Pull Chain Pendant

2

74393-08



Pull Chain

2

63756-04



Allen Wrench

1

64801-01



Cap, Finial

1

64349-02



Finial

1

74758-01



Globe/Shade

1

88288-01

Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com • 98000-01-856 06-25-2008©2008

Page 1
