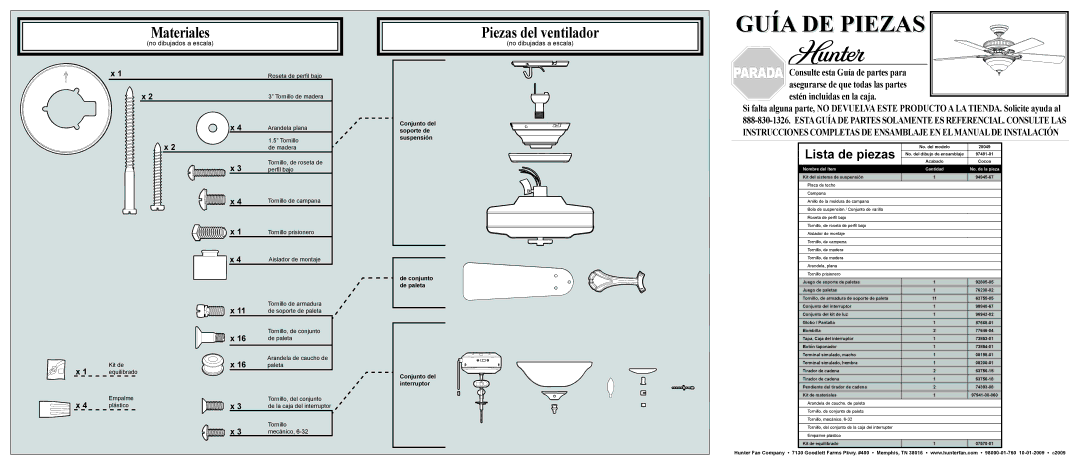

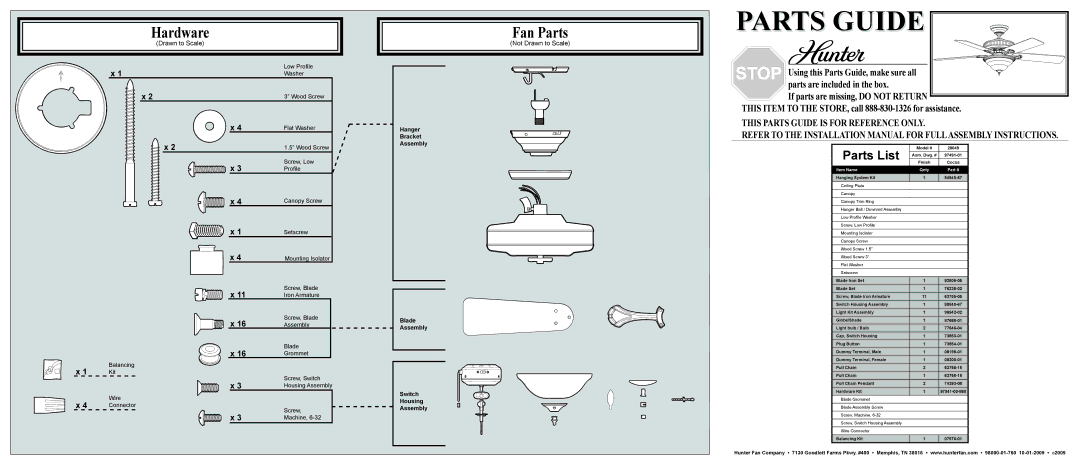

Hardware

(Drawn to Scale)

x 1

Low Profile

Washer

x 2

3” Wood Screw

x 4

Flat Washer

x 2

1.5” Wood Screw

x 3

Screw, Low

Profile

x 4

Canopy Screw

x 1

Setscrew

x 4

Mounting Isolator



x 11

Screw, Blade



Iron Armature



x 16

Screw, Blade



Assembly



x 16

Blade



Grommet

x 1

Balancing



Kit

Screw, Switch



x 3



Housing Assembly

x 4

Wire



Connector

Screw,



x 3



Machine, 6-32

Fan Parts

(Not Drawn to Scale)

Hanger

Bracket

Assembly

Blade

Assembly

Switch

Housing

Assembly

PARTS GUIDE

Using this Parts Guide, make sure all parts are included in the box.

If parts are missing, DO NOT RETURN THIS ITEM TO THE STORE, call 888-830-1326 for assistance.

THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULLASSEMBLY INSTRUCTIONS.



Parts List

Model #

28049



Finish

Cocoa





Asm. Dwg. #

97491-01











Item Name

Qnty

Part #











Hanging System Kit

1

94945-67











Ceiling Plate















Canopy















Canopy Trim Ring















Hanger Ball / Downrod Assembly















Low Profile Washer















Screw, Low Profile















Mounting Isolator















Canopy Screw















Wood Screw 1.5”















Wood Screw 3”















Flat Washer















Setscrew















Blade Iron Set

1

92805-05











Blade Set

1

76238-02











Screw, Blade Iron Armature

11

63755-05











Switch Housing Assembly

1

98840-67



Light Kit Assembly

1

96942-02



Globe/Shade

1

87668-01



Light bulb / Bulb

2

77646-04



Cap, Switch Housing

1

73853-01



Plug Button

1

73854-01



Dummy Terminal, Male

1

08198-01



Dummy Terminal, Female

1

08200-01



Pull Chain

2

63756-15



Pull Chain

1

63756-18



Pull Chain Pendant

2

74393-08



Hardware Kit

1

97941-00-860











Blade Grommet















Blade Assembly Screw















Screw, Machine, 6-32















Screw, Switch Housing Assembly















Wire Connector















Balancing Kit

1

07570-01

Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-760 10-01-2009©2009

Page 1
