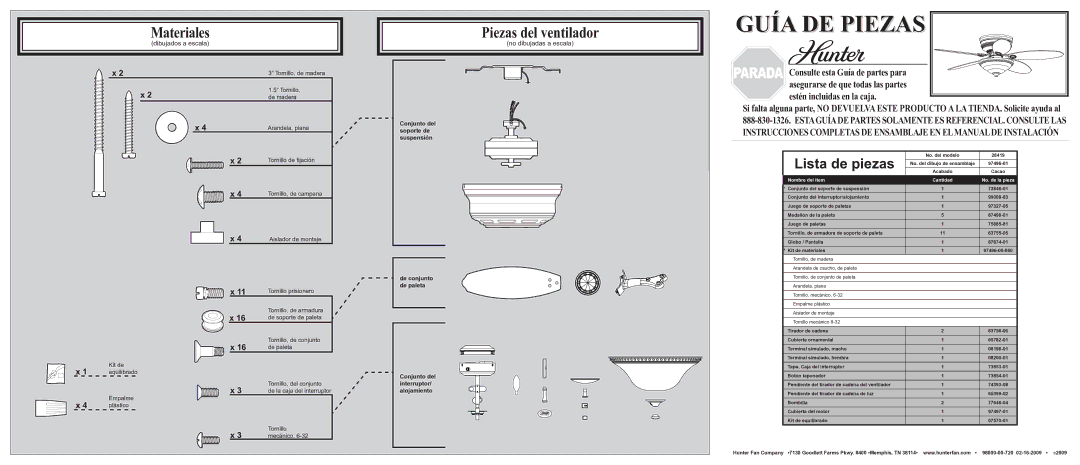

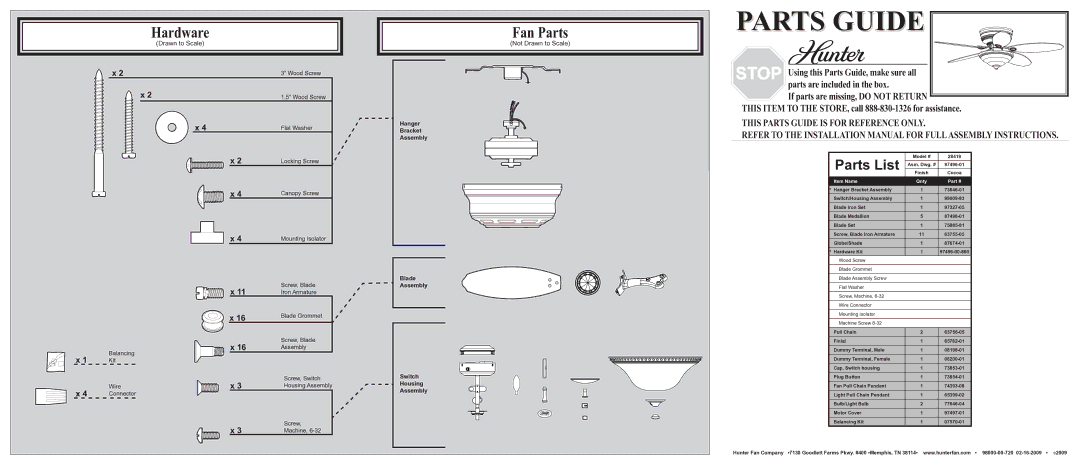

Hardware

(Drawn to Scale)

x 2

3” Wood Screw

x 2

1.5” Wood Screw

x 4

Flat Washer

x 2

Locking Screw

x 4

Canopy Screw

x 4

Mounting Isolator





x 11

Screw, Blade





Iron Armature





x 16

Blade Grommet











x 16

Screw, Blade



Balancing

Assembly

x 1





Kit









x 3

Screw, Switch

x 4

Wire

Housing Assembly

Connector









x 3

Screw,





Machine, 6-32

Fan Parts

(Not Drawn to Scale)

Hanger

Bracket

Assembly

Blade

Assembly

Switch

Housing

Assembly

PARTS GUIDE

Using this Parts Guide, make sure all parts are included in the box.

If parts are missing, DO NOT RETURN THIS ITEM TO THE STORE, call 888-830-1326 for assistance.

THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULLASSEMBLY INSTRUCTIONS.



Parts List

Model #

28419



Finish

Cocoa





Asm. Dwg. #

97496-01











Item Name

Qnty

Part #









*

Hanger Bracket Assembly

1

73846-01



Switch/Housing Assembly

1

99009-83











Blade Iron Set

1

97327-05











Blade Medallion

5

87498-01











Blade Set

1

75885-81











Screw, Blade Iron Armature

11

63755-05



Globe/Shade

1

87674-01









*

Hardware Kit

1

97496-00-860



Wood Screw















Blade Grommet















Blade Assembly Screw















Flat Washer















Screw, Machine, 6-32















Wire Connector















Mounting Isolator















Machine Screw 8-32















Pull Chain

2

63756-05











Finial

1

65782-01











Dummy Terminal, Male

1

08198-01











Dummy Terminal, Female

1

08200-01











Cap, Switch housing

1

73853-01











Plug Button

1

73854-01



Fan Pull Chain Pendant

1

74393-08











Light Pull Chain Pendant

1

65399-02











Bulb/Light Bulb

2

77646-04











Motor Cover

1

97497-01











Balancing Kit

1

07570-01

Hunter Fan Company •7130 Goodlett Farms Pkwy. #400 •Memphis, TN 38114• www.hunterfan.com • 98000-00-720 02-16-2009©2009

Page 1
