Hardware

(Drawn to Scale)

x 1

Low Profile

Washer

x 2

3” Wood Screw

x 4

Flat Washer

x 2

1.5” Wood Screw

x 3

Locking Screw

x 3

Canopy Screw

x 1

Set Screw

x 4

Mounting

Isolator







x 11

Screw, Blade







Iron Armature

x 1

Allen







Wrench



x 16

Screw, Blade







Assembly







x 16

Blade





Balancing

Grommet



x 1







Kit









Wire

x 3

Screw, Switch



x 4

Housing Assembly



Connector













x 3

Screw,







Machine, 6-32

Fan Parts

(Not Drawn to Scale)

Hanger

Bracket

Assembly

Blade

Assembly

Switch

Housing

Assembly

PARTS GUIDE

R

SINCE1886

Using this Parts Guide, make sure all parts are included in the box.

If parts are missing, DO NOT RETURN THIS ITEM TO THE STORE, call 888-830-1326 for assistance.

THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULLASSEMBLY INSTRUCTIONS.



Parts List

Model #

28488



Finish

Cocoa





Asm. Dwg. #

96605-01











Item Name

Qnty

Part #

*

Hanging System Kit



94945-67



Ceiling Plate







Canopy















Canopy Trim Ring







Hanger Ball / Downrod Assembly







Setscrew







Low Profile Washer







Canopy Screw















Wood Screw







Flat Washer















Mounting Isolator





*

Locking Screw















Switch Housing, Upper

1

84934-01



Switch Housing, Lower

1

85088-03



Blade Iron Set

1

98483-05



Blade Medallion

1

88450-05



Blade Set

1

75539-75



Screw, Blade Iron Armature

11

63755-05



Hardware Kit

1

96605-00-860



Blade Grommet







Blade Assembly Screw







Screw, Machine, 6-32















Wire Connector







Screw, Switch Housing Assembly















Balancing Kit

1

07570-01



Allen Wrench

1

64801-01



Remote Control Receiver

1

85069-01



Remote Control Transmitter

1

85095-01



Remote Control Cradle

1

85093-01



12 Volt Battery (GP27A)

1

64626-01



Threaded Rod

1

74907-01



Bottom Cap

1

74906-01



Finial

1

64350-01

Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com • 98000-01-538 05-20-2008©2008

Page 1

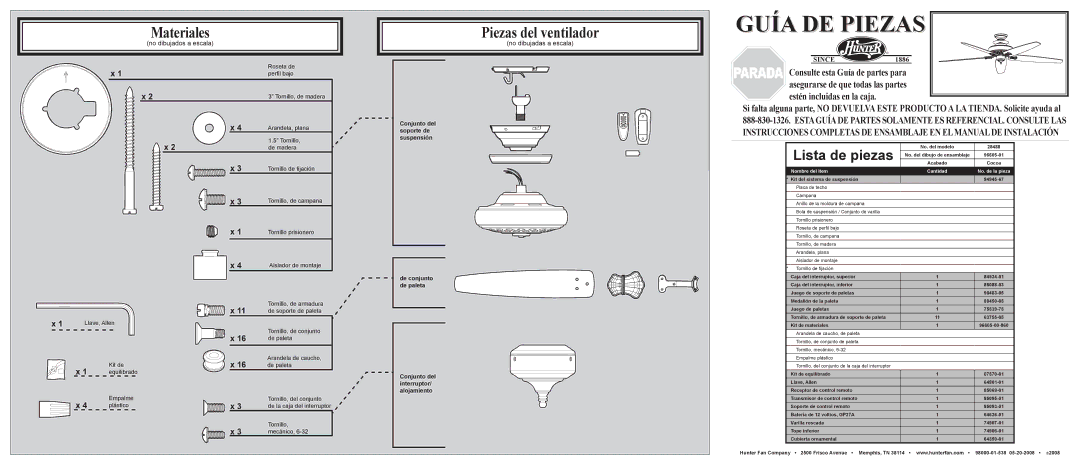

Image 1
