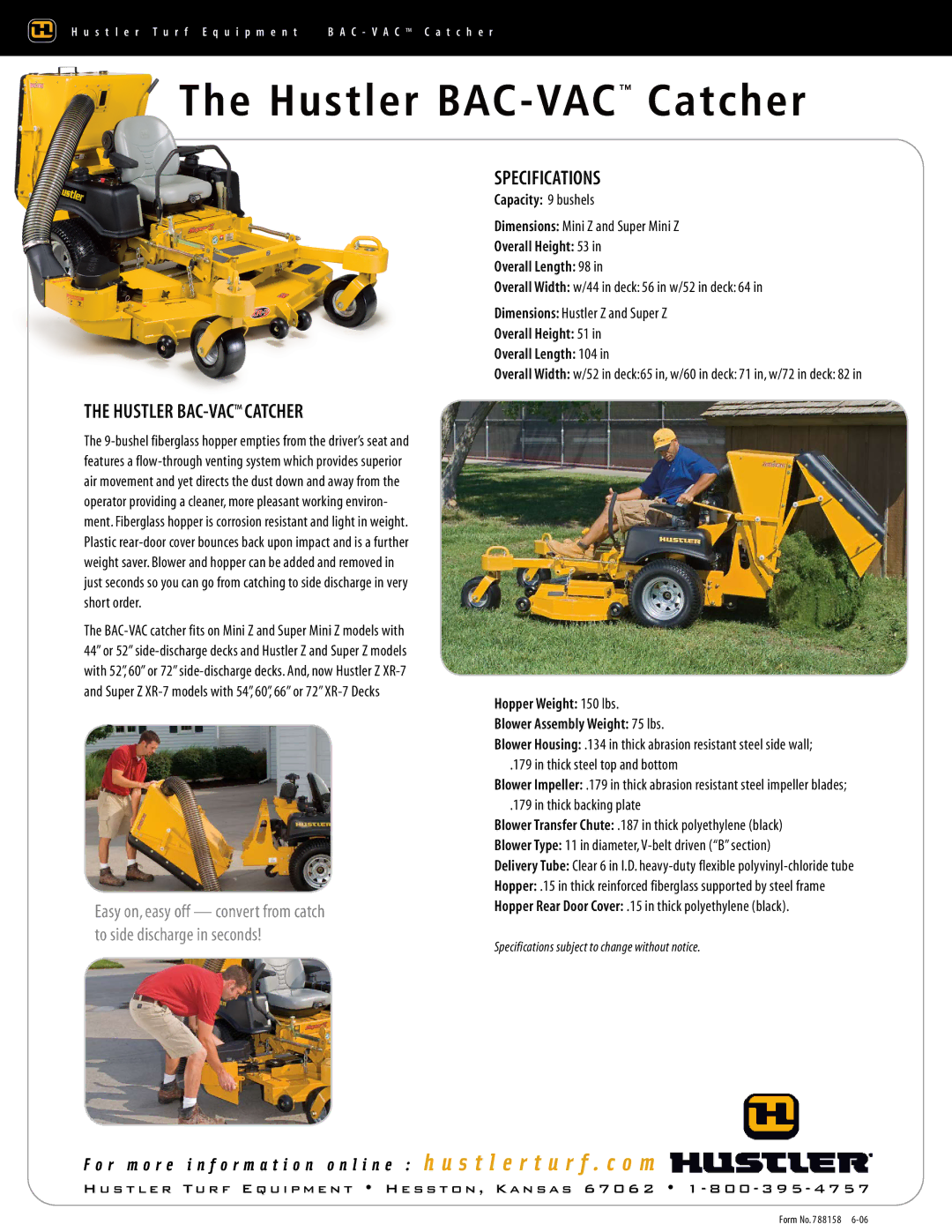

Hustler Turf BAC-VAC specifications The Hustler Bac-Vac Catcher, Specifications

THE HUSTLER BAC-VAC™CATCHER

The 9-bushel fiberglass hopper empties from the driver’s seat and features a flow-through venting system which provides superior air movement and yet directs the dust down and away from the operator providing a cleaner, more pleasant working environ- ment. Fiberglass hopper is corrosion resistant and light in weight. Plastic rear-door cover bounces back upon impact and is a further weight saver. Blower and hopper can be added and removed in just seconds so you can go from catching to side discharge in very short order.

The BAC-VAC catcher fits on Mini Z and Super Mini Z models with 44” or 52” side-discharge decks and Hustler Z and Super Z models with 52”, 60” or 72” side-discharge decks. And, now Hustler Z XR-7 and Super Z XR-7 models with 54”, 60”, 66” or 72” XR-7 Decks

Easy on, easy off — convert from catch to side discharge in seconds!

SPECIFICATIONS

Capacity: 9 bushels

Dimensions: Mini Z and Super Mini Z

Overall Height: 53 in

Overall Length: 98 in

Overall Width: w/44 in deck: 56 in w/52 in deck: 64 in

Dimensions: Hustler Z and Super Z

Overall Height: 51 in

Overall Length: 104 in

Overall Width: w/52 in deck:65 in, w/60 in deck: 71 in, w/72 in deck: 82 in

Hopper Weight: 150 lbs.

Blower Assembly Weight: 75 lbs.

Blower Housing: .134 in thick abrasion resistant steel side wall;

.179 in thick steel top and bottom

Blower Impeller: .179 in thick abrasion resistant steel impeller blades;

.179 in thick backing plate

Blower Transfer Chute: .187 in thick polyethylene (black)

Blower Type: 11 in diameter, V-belt driven (“B” section)

Delivery Tube: Clear 6 in I.D. heavy-duty flexible polyvinyl-chloride tube

Hopper: .15 in thick reinforced fiberglass supported by steel frame

Hopper Rear Door Cover: .15 in thick polyethylene (black).

Specifications subject to change without notice.

F o r m o r e i n f o r m a t i o n o n l i n e : h u s t l e r t u r f . c o m

H U S T L E R TU R F E Q U I P M E N T • H E SS T O N , KA N SA S 6 7 0 6 2 • 1 - 8 0 0 - 3 9 5 - 4 7 5 7

Form No. 78 8158 6-06
