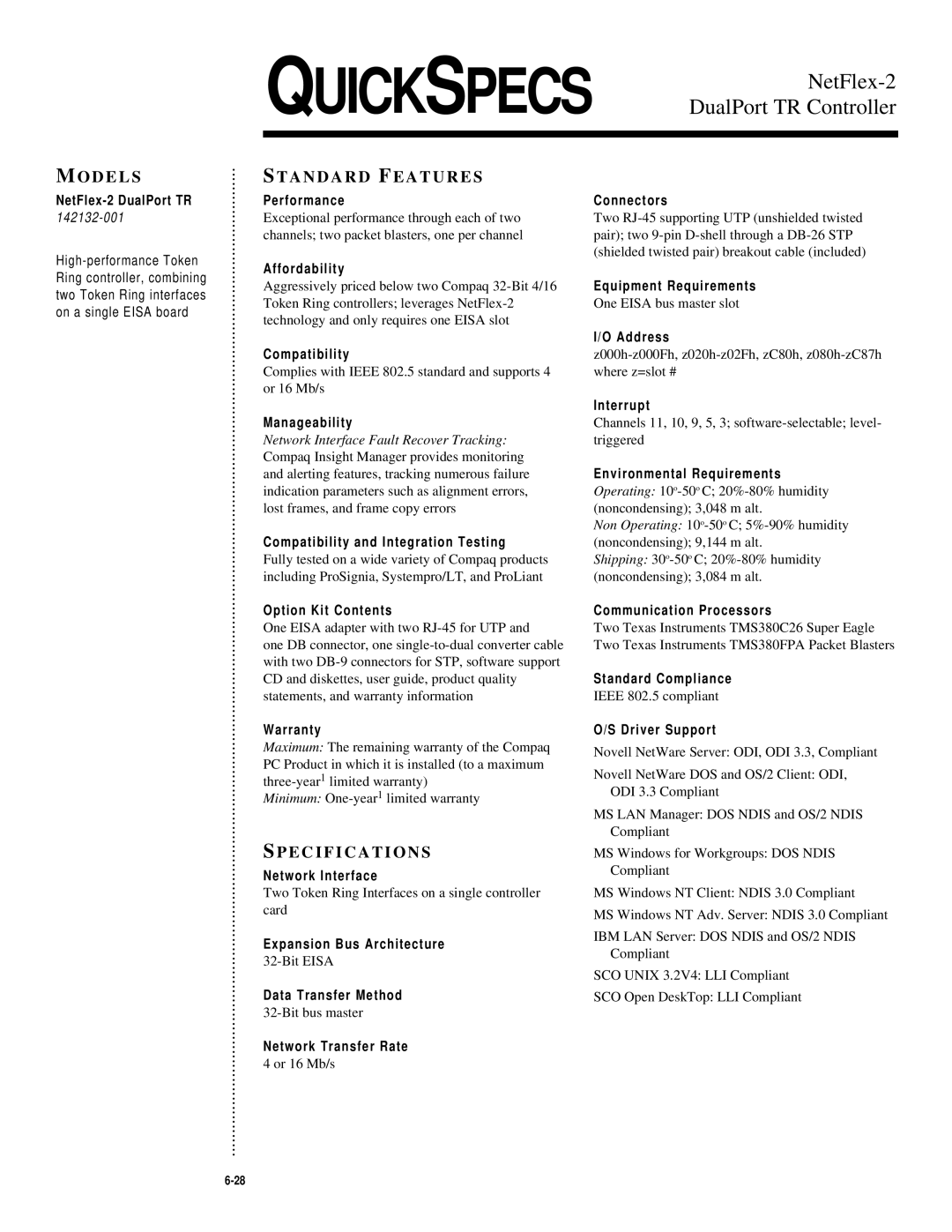

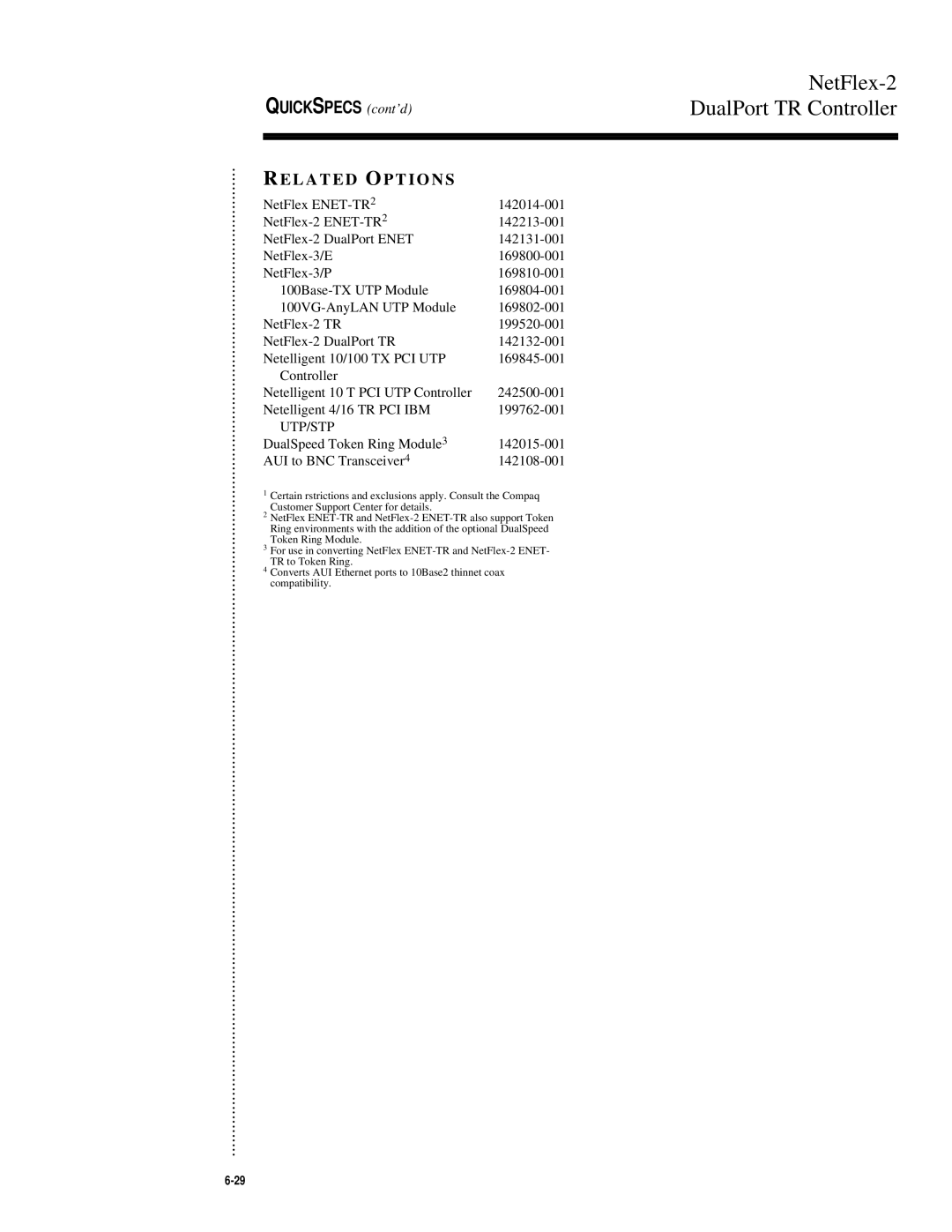

QUICKSPECS NetFlex-2 DualPort TR Controller

M O D E L S

NetFlex-2 DualPort TR

142132-001

High-performance Token Ring controller, combining two Token Ring interfaces on a single EISA board

....................................................................................................................................................................................................................

6-28

S TANDARD F E A T U R E S

Performance

Exceptional performance through each of two channels; two packet blasters, one per channel

Affordability

Aggressively priced below two Compaq 32-Bit 4/16 Token Ring controllers; leverages NetFlex-2 technology and only requires one EISA slot

Compatibility

Complies with IEEE 802.5 standard and supports 4 or 16 Mb/s

Manageability

Network Interface Fault Recover Tracking: Compaq Insight Manager provides monitoring and alerting features, tracking numerous failure indication parameters such as alignment errors, lost frames, and frame copy errors

Compatibility and Integration Testing

Fully tested on a wide variety of Compaq products including ProSignia, Systempro/LT, and ProLiant

Option Kit Contents

One EISA adapter with two RJ-45 for UTP and

one DB connector, one single-to-dual converter cable with two DB-9 connectors for STP, software support CD and diskettes, user guide, product quality statements, and warranty information

Warranty

Maximum: The remaining warranty of the Compaq PC Product in which it is installed (to a maximum three-year1limited warranty)

Minimum: One-year1limited warranty

SPECIFICATIONS

Network Interface

Two Token Ring Interfaces on a single controller card

Expansion Bus Architecture

32-Bit EISA

Data Transfer Method

32-Bit bus master

Network Transfer Rate

4 or 16 Mb/s

Connectors

Two RJ-45 supporting UTP (unshielded twisted pair); two 9-pin D-shell through a DB-26 STP (shielded twisted pair) breakout cable (included)

Equipment Requirements

One EISA bus master slot

I/O Address

z000h-z000Fh, z020h-z02Fh, zC80h, z080h-zC87h where z=slot #

Interrupt

Channels 11, 10, 9, 5, 3; software-selectable; level- triggered

Environmental Requirements

Operating: 10o-50oC; 20%-80% humidity (noncondensing); 3,048 m alt.

Non Operating: 10o-50oC; 5%-90% humidity (noncondensing); 9,144 m alt.

Shipping: 30o-50oC; 20%-80% humidity (noncondensing); 3,084 m alt.

Communication Processors

Two Texas Instruments TMS380C26 Super Eagle Two Texas Instruments TMS380FPA Packet Blasters

Standard Compliance

IEEE 802.5 compliant

O/S Driver Support

Novell NetWare Server: ODI, ODI 3.3, Compliant

Novell NetWare DOS and OS/2 Client: ODI, ODI 3.3 Compliant

MS LAN Manager: DOS NDIS and OS/2 NDIS Compliant

MS Windows for Workgroups: DOS NDIS Compliant

MS Windows NT Client: NDIS 3.0 Compliant

MS Windows NT Adv. Server: NDIS 3.0 Compliant

IBM LAN Server: DOS NDIS and OS/2 NDIS Compliant

SCO UNIX 3.2V4: LLI Compliant

SCO Open DeskTop: LLI Compliant
