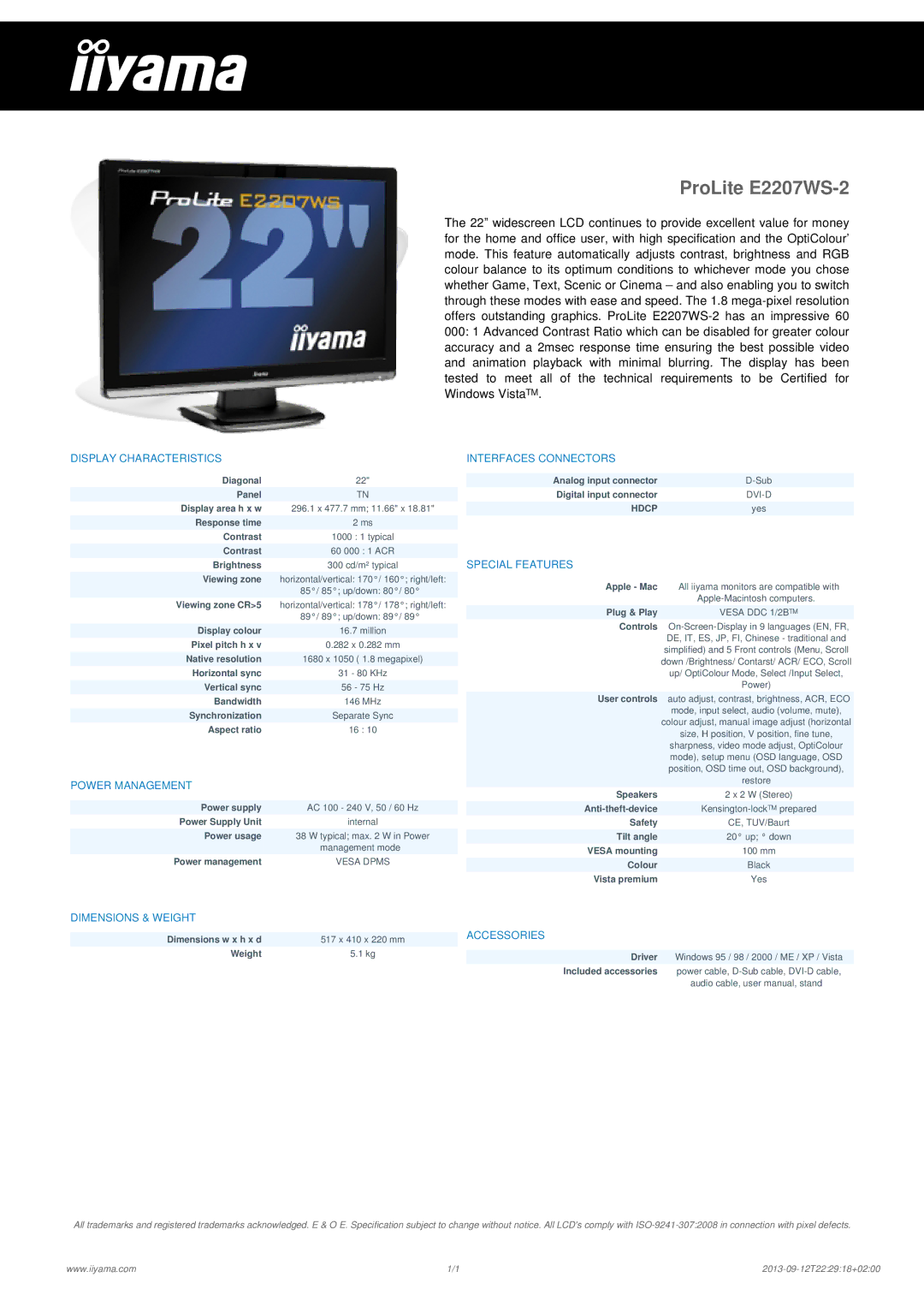

ProLite E2207WS-2
The 22” widescreen LCD continues to provide excellent value for money for the home and office user, with high specification and the OptiColour’ mode. This feature automatically adjusts contrast, brightness and RGB colour balance to its optimum conditions to whichever mode you chose whether Game, Text, Scenic or Cinema – and also enabling you to switch through these modes with ease and speed. The 1.8
000:1 Advanced Contrast Ratio which can be disabled for greater colour accuracy and a 2msec response time ensuring the best possible video and animation playback with minimal blurring. The display has been tested to meet all of the technical requirements to be Certified for Windows Vista™.
DISPLAY CHARACTERISTICS
Diagonal | 22" |
Panel | TN |
Display area h x w | 296.1 x 477.7 mm; 11.66" x 18.81" |
Response time | 2 ms |
Contrast | 1000 : 1 typical |
Contrast | 60 000 : 1 ACR |
Brightness | 300 cd/m² typical |
Viewing zone | horizontal/vertical: 170°/ 160°; right/left: |
| 85°/ 85°; up/down: 80°/ 80° |
Viewing zone CR>5 | horizontal/vertical: 178°/ 178°; right/left: |
| 89°/ 89°; up/down: 89°/ 89° |
Display colour | 16.7 million |
Pixel pitch h x v | 0.282 x 0.282 mm |
Native resolution | 1680 x 1050 ( 1.8 megapixel) |
Horizontal sync | 31 - 80 KHz |
Vertical sync | 56 - 75 Hz |
Bandwidth | 146 MHz |
Synchronization | Separate Sync |
Aspect ratio | 16 : 10 |
POWER MANAGEMENT
Power supply | AC 100 - 240 V, 50 / 60 Hz |
Power Supply Unit | internal |
Power usage | 38 W typical; max. 2 W in Power |
| management mode |
Power management | VESA DPMS |
INTERFACES CONNECTORS
Analog input connector | |
Digital input connector | |
HDCP | yes |
SPECIAL FEATURES
Apple - Mac | All iiyama monitors are compatible with |
| |
Plug & Play | VESA DDC 1/2B™ |
Controls
up/ OptiColour Mode, Select /Input Select,
Power)
User controls auto adjust, contrast, brightness, ACR, ECO mode, input select, audio (volume, mute),
colour adjust, manual image adjust (horizontal
size, H position, V position, fine tune,
sharpness, video mode adjust, OptiColour mode), setup menu (OSD language, OSD position, OSD time out, OSD background), restore
Speakers | 2 x 2 W (Stereo) |
Safety | CE, TUV/Baurt |
Tilt angle | 20° up; ° down |
VESA mounting | 100 mm |
Colour | Black |
Vista premium | Yes |
DIMENSIONS & WEIGHT
|
|
| ACCESSORIES | ||
Dimensions w x h x d | 517 x 410 x 220 mm | ||||
Weight | 5.1 kg |
|
|
|
|
| Driver | Windows 95 / 98 / 2000 / ME / XP / Vista | |||
|
|
| Included accessories |
| power cable, |
|
|
|
|
| audio cable, user manual, stand |
All trademarks and registered trademarks acknowledged. E & O E. Specification subject to change without notice. All LCD's comply with
