Caster Seat To Floor Caster Mtg Rear Wheel Size Rear Wheel Space Saver Arm
Position Position (9000 - order as required)
LDR96LI Cyclical Lever Drive - Left Hand $797.00
For a 9000 Series Chair with 6'' Casters
LDR98LI Cyclical Lever Drive - Left Hand 797.00
For a 9000 Series Chair with 8'' Casters
LDR96RI Cyclical Lever Drive - Right Hand 797.00
For a 9000 Series Chair with 6'' Casters
LDR98RI Cyclical Lever Drive - Right Hand 797.00
For a 9000 Series Chair with 8'' Casters
6'' 15 1/2'' top 20'' top required
6'' 16 1/2'' middle 22'' top required
6'' 17 1/2'' bottom 24'' top required
6'' 17 1/2'' bottom 20'' bottom no
8'' 17 1/2'' top 20'' bottom no
8'' 17 1/2'' top 24''. top required
8'' 18 1/2''. middle 22'' bottom no
8'' 19 1/2'' bottom 24'' bottom no

Footnotes

1. Not available on aSuper Low seat-to-floor height of 14 1/2''.
2. Only available on 16'',17'',18''deep 9000 XDT.
3. Not available with 9 spoke rear wheels.
4. Not available with urethane tires.
5. Not available on a 9000XT recliner.
6. Client weight not to exceed 250 lbs.on all chair models.
7. Seat-to-floor heights,see chart below for specific requirements.
8. Hemi seat-to-floor positions require the use of space-saver arms due
to interference.
*Note: All specifications and dimensions are approximate.
Specifications
Weight Limit 250 lbs.
Mechanism Weight 9.1 lbs.
Added Width to Chair 1 1/2''
Stroke Length 15'' - 16''
Grip Height Adjustment 15'' - 18''
(from seat rail of 9000XT)
Mechanism Color Black / Chrome
Warranty Two Years
Service and Maintenance Requirements
There are no service requirements for the CLD but the service
requirements of the 9000 series wheelchair apply without change. Installation
Right-handed or left-handed configuration. Dealer Installed Kit.
Cyclical LeverDrive Suggested
List
Model# Description Price

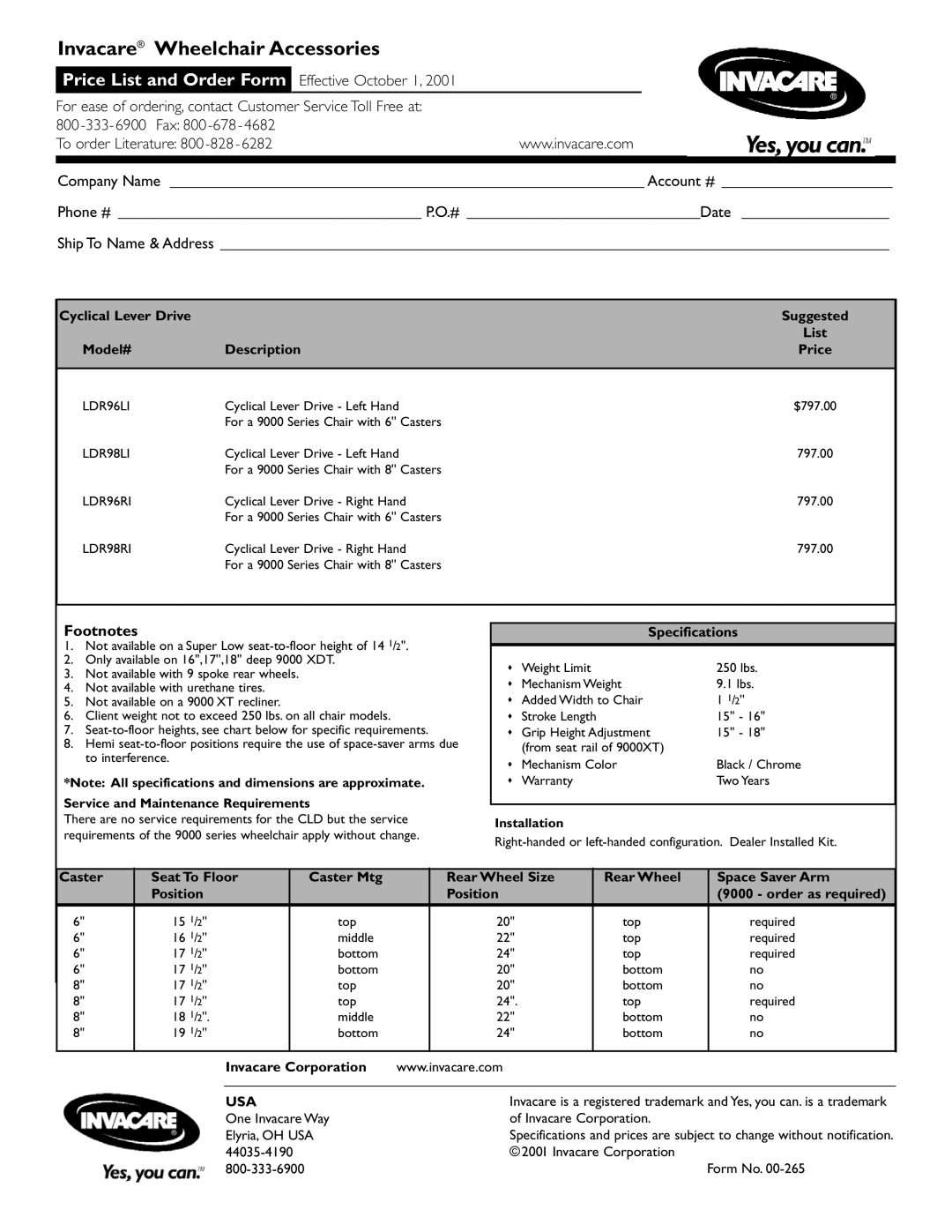

Price List and Order Form Effective October 1,2001

For ease of ordering, contact Customer Service Toll Free at:

800-333-6900 Fax: 800-678 -4682

To order Literature:800-828 -6282 www.invacare.com

Invacare®Wheelchair Accessories

Company Name _____________________________________________________________Account # ______________________

Phone # _______________________________________ P.O.# ______________________________Date ___________________

Ship To Name & Address ______________________________________________________________________________________

USA
One Invacare Way
Elyria,OH USA
44035-4190
800-333-6900
Invacare is a registered trademark and Yes,you can. is a trademark
of Invacare Corporation.
Specifications and prices are subject to change without notification.
©2001 Invacare Corporation
Form No.00-265
