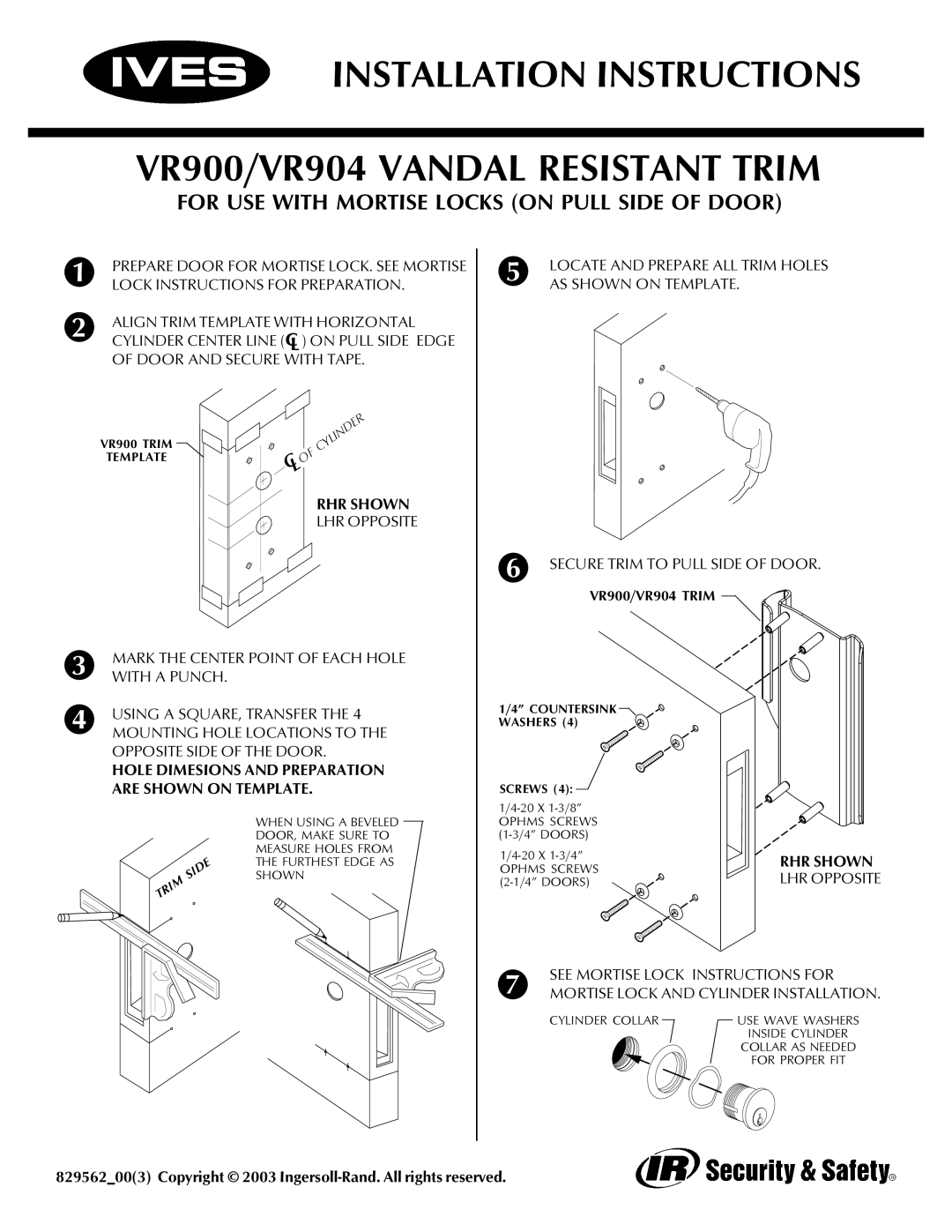

INSTALLATION INSTRUCTIONS

VR900/VR904 VANDAL RESISTANT TRIM

FOR USE WITH MORTISE LOCKS (ON PULL SIDE OF DOOR)

1

2

PREPARE DOOR FOR MORTISE LOCK. SEE MORTISE LOCK INSTRUCTIONS FOR PREPARATION.

ALIGN TRIM TEMPLATE WITH HORIZONTAL

CYLINDER CENTER LINE (C ) ON PULL SIDE EDGE

L

OF DOOR AND SECURE WITH TAPE.

5LOCATE AND PREPARE ALL TRIM HOLES AS SHOWN ON TEMPLATE.

VR900 TRIM



CYLINDER

TEMPLATE

OF









C





L



RHR SHOWN

LHR OPPOSITE

3MARK THE CENTER POINT OF EACH HOLE WITH A PUNCH.

4

USING A SQUARE, TRANSFER THE 4



MOUNTING HOLE LOCATIONS TO THE



OPPOSITE SIDE OF THE DOOR.



HOLE DIMESIONS AND PREPARATION



ARE SHOWN ON TEMPLATE.







WHEN USING A BEVELED







DOOR, MAKE SURE TO







MEASURE HOLES FROM





SIDE

THE FURTHEST EDGE AS



TRIM

SHOWN







6SECURE TRIM TO PULL SIDE OF DOOR.

VR900/VR904 TRIM

1/4” COUNTERSINK WASHERS (4)

SCREWS (4):

1/4-20 X 1-3/8”

OPHMS SCREWS (1-3/4” DOORS)

1/4-20 X 1-3/4”

RHR SHOWN

OPHMS SCREWS

LHR OPPOSITE

(2-1/4” DOORS)

7SEE MORTISE LOCK INSTRUCTIONS FOR MORTISE LOCK AND CYLINDER INSTALLATION.

CYLINDER COLLAR

USE WAVE WASHERS



INSIDE CYLINDER



COLLAR AS NEEDED



FOR PROPER FIT

829562_00(3) Copyright © 2003 Ingersoll-Rand. All rights reserved.

Page 1
Image 1
Ives installation instructions Installation Instructions VR900/VR904 Vandal Resistant Trim, RHR Shown
