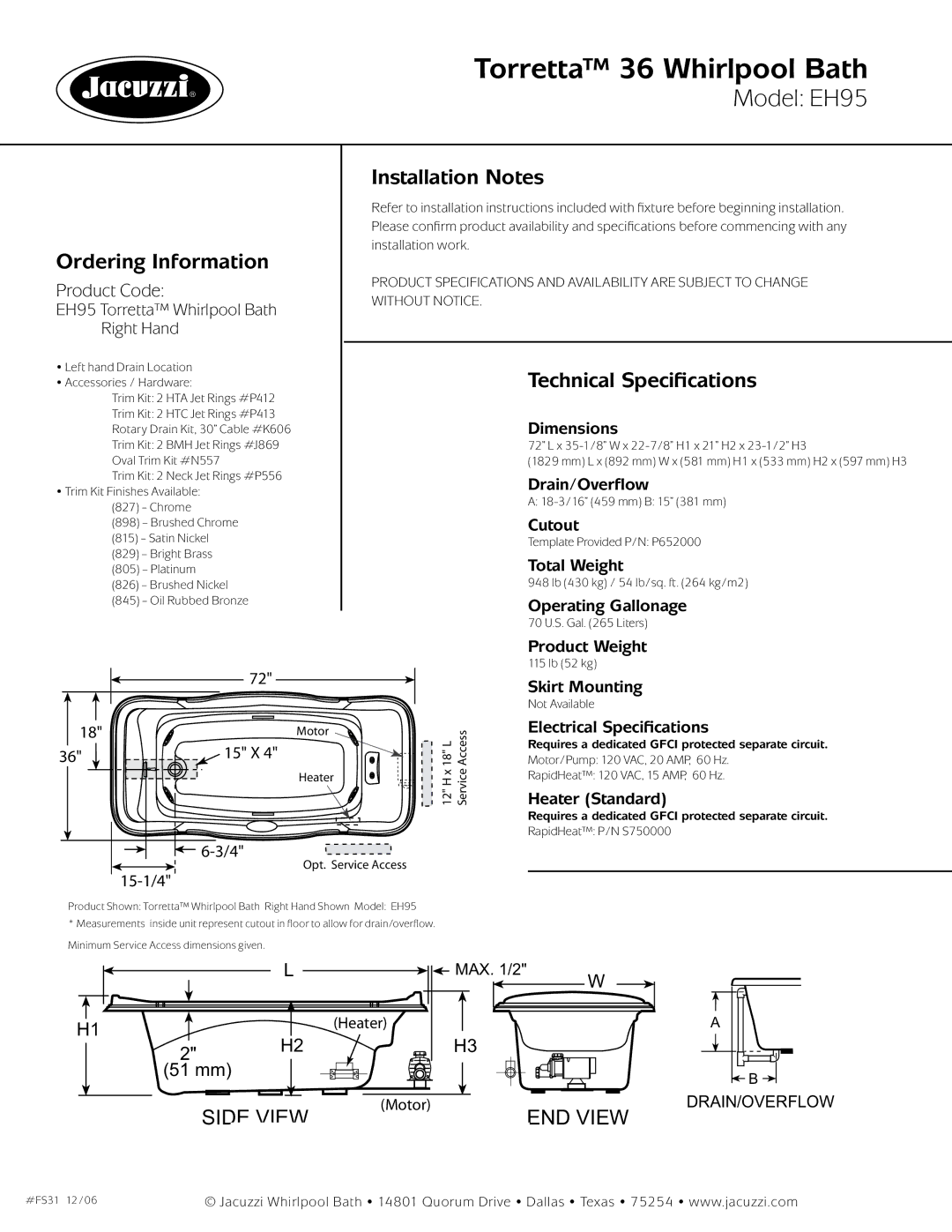

Jacuzzi Torretta 36 Whirlpool Bath, Model EH95, Ordering Information, Installation Notes

Torretta™ 36 Whirlpool Bath

Model: EH95

Ordering Information

Product Code:EH95 Torretta™ Whirlpool Bath Right Hand

•Left hand Drain Location

•Accessories / Hardware:

Trim Kit: 2 HTA Jet Rings #P412

Trim Kit: 2 HTC Jet Rings #P413 Rotary Drain Kit, 30” Cable #K606 Trim Kit: 2 BMH Jet Rings #J869 Oval Trim Kit #N557

Trim Kit: 2 Neck Jet Rings #P556

•Trim Kit Finishes Available:

(827)– Chrome

(898)– Brushed Chrome

(815)– Satin Nickel

(829)– Bright Brass

(805)– Platinum

(826)– Brushed Nickel

(845)– Oil Rubbed Bronze

Installation Notes

Refer to installation instructions included with fixture before beginning installation. Please confirm product availability and specifications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Technical Specifications

Dimensions

72” L x 35-1/8” W x 22-7/8” H1 x 21” H2 x 23-1/2” H3

(1829 mm) L x (892 mm) W x (581 mm) H1 x (533 mm) H2 x (597 mm) H3

Drain/Overflow

A: 18-3/16” (459 mm) B: 15” (381 mm)

Cutout

Template Provided P/N: P652000

Total Weight

948 lb (430 kg) / 54 lb/sq. ft. (264 kg/m2)

Operating Gallonage

70 U.S. Gal. (265 Liters)

	72"
18"		Motor	Access
36"	15" X 4"	18" L
		Heater	Service
		12" Hx
	6-3/4"	Opt. Service Access
	15-1/4"

Product Weight

115 lb (52 kg)

Skirt Mounting

Not Available

Electrical Specifications

Requires a dedicated GFCI protected separate circuit. Motor/Pump: 120 VAC, 20 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Standard)

Requires a dedicated GFCI protected separate circuit. RapidHeat™: P/N S750000

Product Shown: Torretta™ Whirlpool Bath Right Hand Shown Model: EH95

*Measurements inside unit represent cutout in floor to allow for drain/overflow. Minimum Service Access dimensions given.

		L	MAX. 1/2"
			W
H1		(Heater)	A
		H2	H3
	2"
	(51 mm)		B
		(Motor)	DRAIN/OVERFLOW
		SIDE VIEW	END VIEW

TORRETTA 36

#FS31 12/06 © Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
