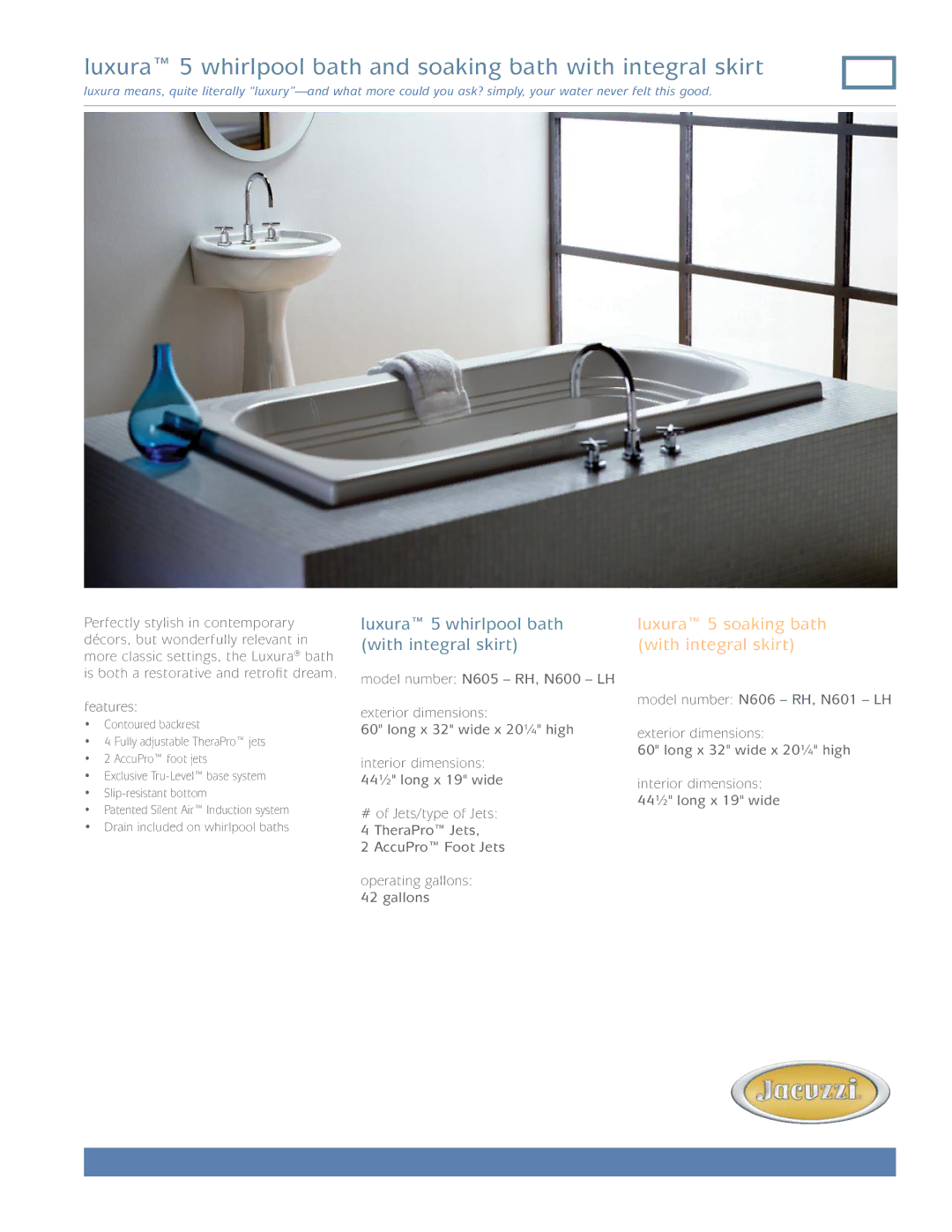

Luxura™ 5 Whirlpool Bath with Integral Skirt

Model: N600, N605

Luxura™ 5 Bath with Integral Skirt

Model: N601, N606

Ordering Information

Product Code:

N600 Luxura™ 5 Whirlpool Bath with Integral Skirt Left Hand

N605 Luxura™ 5 Whirlpool Bath with Integral Skirt Right Hand

N606 Luxura™ 5 Bath with Integral Skirt Right Hand

N601 Luxura™ 5 Bath with Integral Skirt Left Hand

Right and Left Hand Drain Location

Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

HTC Jet Trim Kit: #D095

BMH Jet Trim Kit: #J869

Trim Kit Finishes Available:

(827)– Chrome

(898)– Brushed Chrome

(815)– Satin Nickel

(829)– Bright Brass

(805)– Platinum

(826)– Brushed Nickel

(845)– Oil Rubbed Bronze

Installation Notes

Refer to installation instructions included with fixture before beginning installation. Please confirm product availability and specifications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Electrical Components and Electrical Specifications do not apply to non-jetted baths.

Technical Specifications

Dimensions

60” L x 32” W x 20-1/4” H

(1524 mm) L x (813 mm) W x (514 mm) H

Drain/Overflow

A: 15-1/4” (387 mm) B: 8-1/4” (210 mm)

Cutout

Not Applicable

Total Weight

N600, N605: 700 lb (318 kg) / 53 lb/sq. ft. (259 kg/m2)

N601, N606: 675 lb (306 kg) / 51 lb/sq. ft. (247 kg/m2)

Operating Gallonage



60"



8-1/4"

15-3/8"

12" x 5"*





32"



Motor

2-1/2"



5-1/4"

2-1/2"

Product Shown: Luxura™ 5 Whirlpool Bath with Integral Skirt Left Hand Model: N600 * Measurements inside unit represent cutout in floor to allow for drain/overflow.

L

1"

H

N601, N605: 42 U.S. Gal. (159 Liters)

N601, N605: Max. 50 U.S. Gal. (189 Liters)

Product Weight

N600, N605: 100 lb (45 kg)

N601, N606: 75 lb (34 kg)

Skirt Mounting

Integral

Electrical Specifications Models N600, N605 only

Requires a dedicated GFCI protected separate circuit. Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models N600, N605 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

W

A

B

SIDE VIEW

END VIEW

DRAIN/OVERFLOW

#FR60 12/06

© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
