JBL manual Specifications, GTO1014 GTO1014D GTO1214 GTO1214D GTO1514 GTO1514D

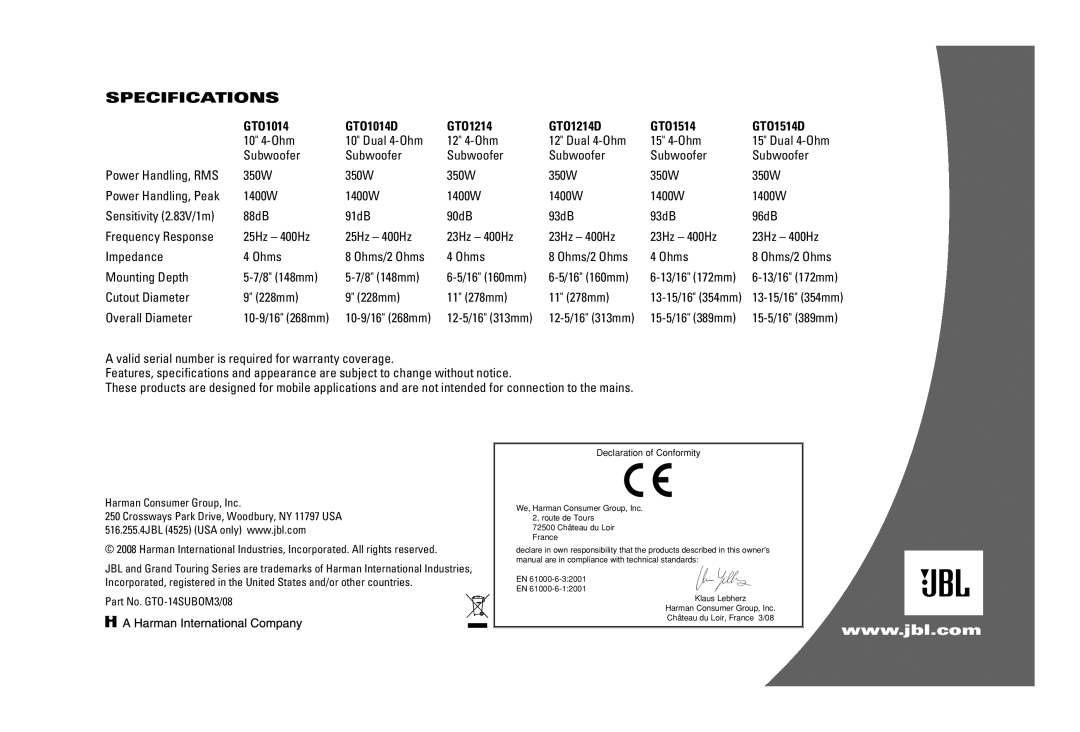

SPECIFICATIONS

	GTO1014	GTO1014D	GTO1214	GTO1214D	GTO1514	GTO1514D
	10" 4-Ohm	10" Dual 4-Ohm	12" 4-Ohm	12" Dual 4-Ohm	15" 4-Ohm	15" Dual 4-Ohm
	Subwoofer	Subwoofer	Subwoofer	Subwoofer	Subwoofer	Subwoofer
Power Handling, RMS	350W	350W	350W	350W	350W	350W
Power Handling, Peak	1400W	1400W	1400W	1400W	1400W	1400W
Sensitivity (2.83V/1m)	88dB	91dB	90dB	93dB	93dB	96dB
Frequency Response	25Hz – 400Hz	25Hz – 400Hz	23Hz – 400Hz	23Hz – 400Hz	23Hz – 400Hz	23Hz – 400Hz
Impedance	4 Ohms	8 Ohms/2 Ohms	4 Ohms	8 Ohms/2 Ohms	4 Ohms	8 Ohms/2 Ohms
Mounting Depth	5-7/8" (148mm)	5-7/8" (148mm)	6-5/16" (160mm)	6-5/16" (160mm)	6-13/16" (172mm)	6-13/16" (172mm)
Cutout Diameter	9" (228mm)	9" (228mm)	11" (278mm)	11" (278mm)	13-15/16" (354mm)	13-15/16" (354mm)
Overall Diameter	10-9/16" (268mm)	10-9/16" (268mm)	12-5/16" (313mm)	12-5/16" (313mm)	15-5/16" (389mm)	15-5/16" (389mm)

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

These products are designed for mobile applications and are not intended for connection to the mains.

Harman Consumer Group, Inc.

250 Crossways Park Drive, Woodbury, NY 11797 USA 516.255.4JBL (4525) (USA only) www.jbl.com

© 2008 Harman International Industries, Incorporated. All rights reserved.

JBL and Grand Touring Series are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.

Part No. GTO-14SUBOM3/08

Declaration of Conformity

We, Harman Consumer Group, Inc.

2, route de Tours

72500 Château du Loir

France

declare in own responsibility that the products described in this owner’s manual are in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Klaus Lebherz

Harman Consumer Group, Inc. Château du Loir, France 3/08
