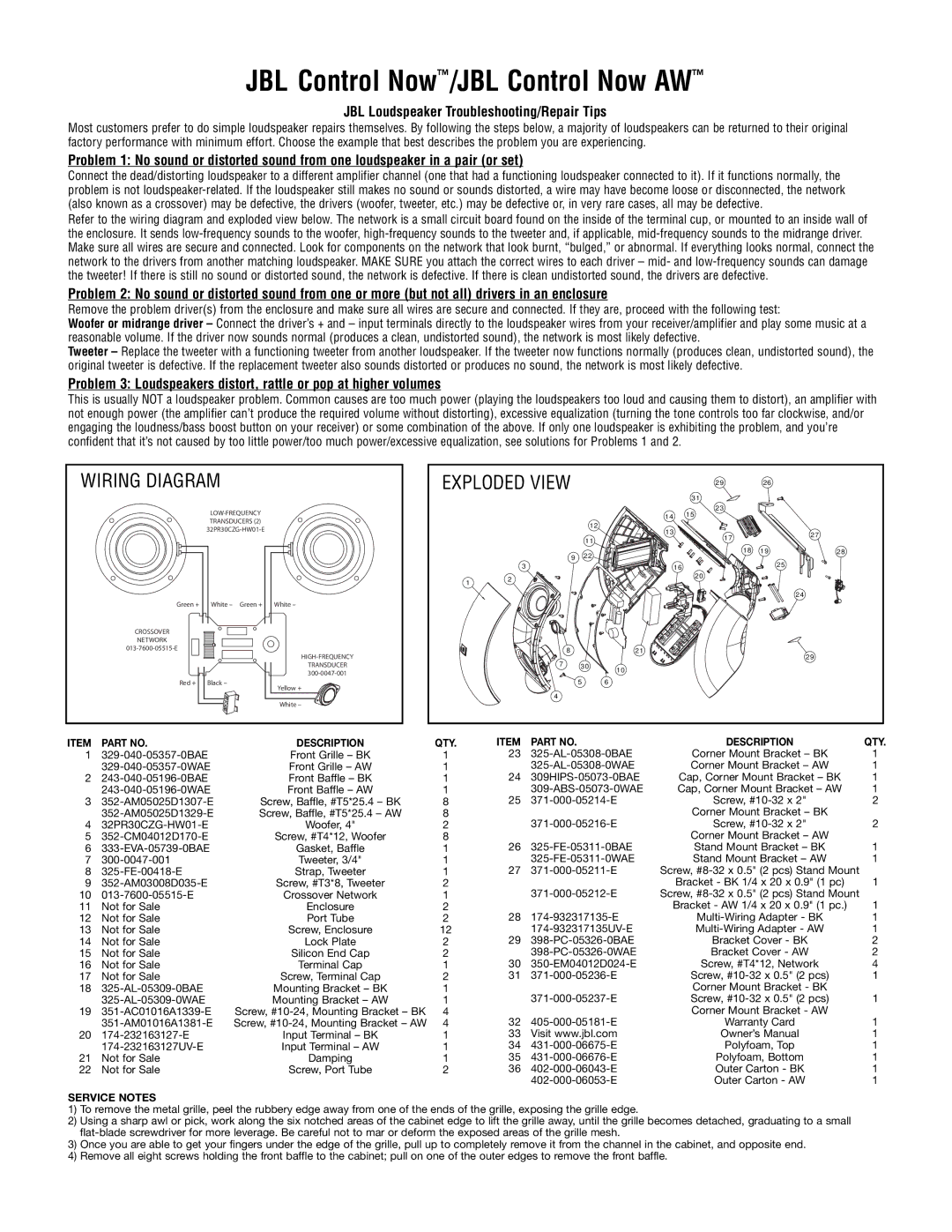

JBL Control Now/JBL Control Now AW

JBL Loudspeaker Troubleshooting/Repair Tips

Most customers prefer to do simple loudspeaker repairs themselves. By following the steps below, a majority of loudspeakers can be returned to their original factory performance with minimum effort. Choose the example that best describes the problem you are experiencing.

Problem 1: No sound or distorted sound from one loudspeaker in a pair (or set)

Connect the dead/distorting loudspeaker to a different amplifier channel (one that had a functioning loudspeaker connected to it). If it functions normally, the problem is not loudspeaker-related. If the loudspeaker still makes no sound or sounds distorted, a wire may have become loose or disconnected, the network (also known as a crossover) may be defective, the drivers (woofer, tweeter, etc.) may be defective or, in very rare cases, all may be defective.

Refer to the wiring diagram and exploded view below. The network is a small circuit board found on the inside of the terminal cup, or mounted to an inside wall of the enclosure. It sends low-frequency sounds to the woofer, high-frequency sounds to the tweeter and, if applicable, mid-frequency sounds to the midrange driver. Make sure all wires are secure and connected. Look for components on the network that look burnt, “bulged,” or abnormal. If everything looks normal, connect the network to the drivers from another matching loudspeaker. MAKE SURE you attach the correct wires to each driver – mid- and low-frequency sounds can damage the tweeter! If there is still no sound or distorted sound, the network is defective. If there is clean undistorted sound, the drivers are defective.

Problem 2: No sound or distorted sound from one or more (but not all) drivers in an enclosure

Remove the problem driver(s) from the enclosure and make sure all wires are secure and connected. If they are, proceed with the following test:

Woofer or midrange driver – Connect the driver’s + and – input terminals directly to the loudspeaker wires from your receiver/amplifier and play some music at a reasonable volume. If the driver now sounds normal (produces a clean, undistorted sound), the network is most likely defective.

Tweeter – Replace the tweeter with a functioning tweeter from another loudspeaker. If the tweeter now functions normally (produces clean, undistorted sound), the original tweeter is defective. If the replacement tweeter also sounds distorted or produces no sound, the network is most likely defective.

Problem 3: Loudspeakers distort, rattle or pop at higher volumes

This is usually NOT a loudspeaker problem. Common causes are too much power (playing the loudspeakers too loud and causing them to distort), an amplifier with not enough power (the amplifier can’t produce the required volume without distorting), excessive equalization (turning the tone controls too far clockwise, and/or engaging the loudness/bass boost button on your receiver) or some combination of the above. If only one loudspeaker is exhibiting the problem, and you’re confident that it’s not caused by too little power/too much power/excessive equalization, see solutions for Problems 1 and 2.

WIRING DIAGRAM

EXPLODED VIEW

29

26

31





23



LOW-FREQUENCY TRANSDUCERS (2) 32PR30CZG-HW01-E

Green +

White –

Green +

CROSSOVER

NETWORK

013-7600-05515-E

Red + Black –

White –

HIGH-FREQUENCY

TRANSDUCER 300-0047-001

Yellow +

White –









14

15

























12

13















17



27







11



































9

22



18

19

28











25



3





16





1

2







20













































24





8



21





29



7













30

10



































5



6









4













ITEM

PART NO.

DESCRIPTION

QTY.

ITEM

PART NO.

DESCRIPTION

QTY.

1

329-040-05357-0BAE

Front Grille – BK

1

23

325-AL-05308-0BAE

Corner Mount Bracket – BK

1



329-040-05357-0WAE

Front Grille – AW

1



325-AL-05308-0WAE

Corner Mount Bracket – AW

1

2

243-040-05196-0BAE

Front Baffle – BK

1

24

309HIPS-05073-0BAE

Cap, Corner Mount Bracket – BK

1



243-040-05196-0WAE

Front Baffle – AW

1



309-ABS-05073-0WAE

Cap, Corner Mount Bracket – AW

1

3

352-AM05025D1307-E

Screw, Baffle, #T5*25.4 – BK

8

25

371-000-05214-E

Screw, #10-32 x 2"

2



352-AM05025D1329-E

Screw, Baffle, #T5*25.4 – AW

8





Corner Mount Bracket – BK



4

32PR30CZG-HW01-E

Woofer, 4"

2



371-000-05216-E

Screw, #10-32 x 2"

2

5

352-CM04012D170-E

Screw, #T4*12, Woofer

8





Corner Mount Bracket – AW



6

333-EVA-05739-0BAE

Gasket, Baffle

1

26

325-FE-05311-0BAE

Stand Mount Bracket – BK

1

7

300-0047-001

Tweeter, 3/4"

1



325-FE-05311-0WAE

Stand Mount Bracket – AW

1

8

325-FE-00418-E

Strap, Tweeter

1

27

371-000-05211-E

Screw, #8-32 x 0.5" (2 pcs) Stand Mount



9

352-AM03008D035-E

Screw, #T3*8, Tweeter

2





Bracket - BK 1/4 x 20 x 0.9" (1 pc)

1

10

013-7600-05515-E

Crossover Network

1



371-000-05212-E

Screw, #8-32 x 0.5" (2 pcs) Stand Mount



11

Not for Sale

Enclosure

2





Bracket - AW 1/4 x 20 x 0.9" (1 pc.)

1

12

Not for Sale

Port Tube

2

28

174-932317135-E

Multi-Wiring Adapter - BK

1

13

Not for Sale

Screw, Enclosure

12



174-932317135UV-E

Multi-Wiring Adapter - AW

1

14

Not for Sale

Lock Plate

2

29

398-PC-05326-0BAE

Bracket Cover - BK

2

15

Not for Sale

Silicon End Cap

2



398-PC-05326-0WAE

Bracket Cover - AW

2

16

Not for Sale

Terminal Cap

1

30

350-EM04012D024-E

Screw, #T4*12, Network

4

17

Not for Sale

Screw, Terminal Cap

2

31

371-000-05236-E

Screw, #10-32 x 0.5" (2 pcs)

1

18

325-AL-05309-0BAE

Mounting Bracket – BK

1





Corner Mount Bracket - BK





325-AL-05309-0WAE

Mounting Bracket – AW

1



371-000-05237-E

Screw, #10-32 x 0.5" (2 pcs)

1

19

351-AC01016A1339-E

Screw, #10-24, Mounting Bracket – BK

4





Corner Mount Bracket - AW





351-AM01016A1381-E

Screw, #10-24, Mounting Bracket – AW

4

32

405-000-05181-E

Warranty Card

1

20

174-232163127-E

Input Terminal – BK

1

33

Visit www.jbl.com

Owner’s Manual

1



174-232163127UV-E

Input Terminal – AW

1

34

431-000-06675-E

Polyfoam, Top

1

21

Not for Sale

Damping

1

35

431-000-06676-E

Polyfoam, Bottom

1

22

Not for Sale

Screw, Port Tube

2

36

402-000-06043-E

Outer Carton - BK

1











402-000-06053-E

Outer Carton - AW

1

SERVICE NOTES

1)To remove the metal grille, peel the rubbery edge away from one of the ends of the grille, exposing the grille edge.

2)Using a sharp awl or pick, work along the six notched areas of the cabinet edge to lift the grille away, until the grille becomes detached, graduating to a small flat-blade screwdriver for more leverage. Be careful not to mar or deform the exposed areas of the grille mesh.

3)Once you are able to get your fingers under the edge of the grille, pull up to completely remove it from the channel in the cabinet, and opposite end.

4)Remove all eight screws holding the front baffle to the cabinet; pull on one of the outer edges to remove the front baffle.
