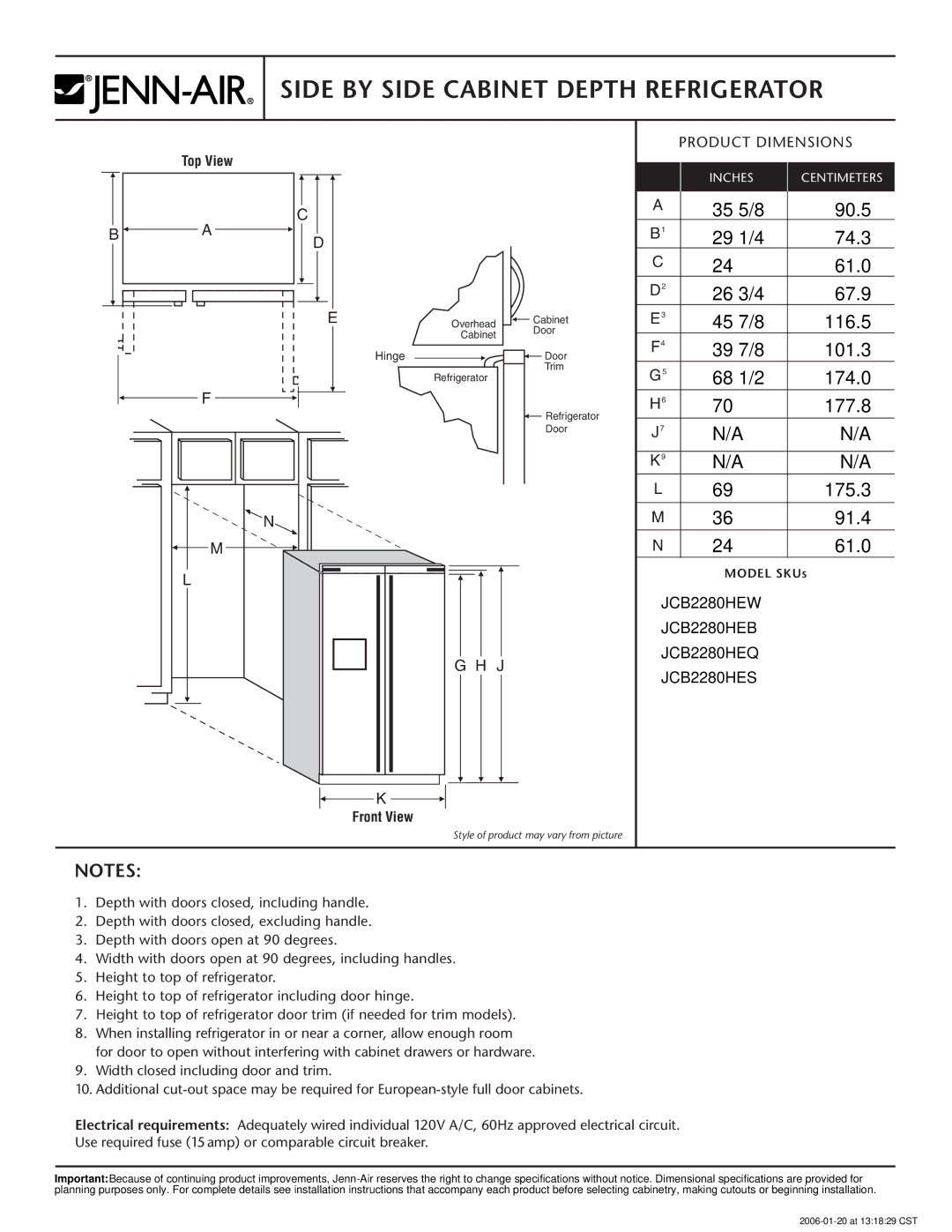

SIDE BY SIDE CABINET DEPTH REFRIGERATOR

Top View

PRODUCT DIMENSIONS

B

A



C

D

E

Overhead



Cabinet



Hinge



Refrigerator

Cabinet

Door

Door Trim



INCHES

CENTIMETERS







A

35 5/8

90.5

B1

29 1/4

74.3

C

24

61.0

D2

26 3/4

67.9

E3

45 7/8

116.5

F4

39 7/8

101.3

G5

68 1/2

174.0

F

N

M

L

Refrigerator

Door

H6

70

177.8

J7

N/A

N/A







K9

N/A

N/A

L

69

175.3

M

36

91.4

N

24

61.0

MODEL SKUs

JCB2280HEW

JCB2280HEB

G H J

K

Front View

Style of product may vary from picture

JCB2280HEQ

JCB2280HES

NOTES:

1.Depth with doors closed, including handle.

2.Depth with doors closed, excluding handle.

3.Depth with doors open at 90 degrees.

4.Width with doors open at 90 degrees, including handles.

5.Height to top of refrigerator.

6.Height to top of refrigerator including door hinge.

7.Height to top of refrigerator door trim (if needed for trim models).

8.When installing refrigerator in or near a corner, allow enough room for door to open without interfering with cabinet drawers or hardware.

9.Width closed including door and trim.

10.Additional cut-out space may be required for European-style full door cabinets.

Electrical requirements: Adequately wired individual 120V A/C, 60Hz approved electrical circuit.

Use required fuse (15 amp) or comparable circuit breaker.

Important:Because of continuing product improvements, Jenn-Air reserves the right to change specifications without notice. Dimensional specifications are provided for planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.

2006-01-20 at 13:18:29 CST

Page 1
Image 1
Jenn-Air dimensions Side by Side Cabinet Depth Refrigerator, JCB2280HEW JCB2280HEB, JCB2280HEQ JCB2280HES

JCB2280HEB, JCB2280HES, JCB2280HEW, JCB2280HEQ specifications

The Jenn-Air JCB2280 series is a remarkable collection of built-in refrigerators that embodies luxury, functionality, and cutting-edge technology. This series consists of four models: JCB2280HEW, JCB2280HES, JCB2280HEB, and JCB2280HEQ, each offering a unique aesthetic and innovative features suited for modern kitchens.

At the core of these appliances is their spacious capacity, providing ample room for food storage while maintaining a sleek and seamless design. The JCB2280 series features a generous interior layout, making organization easy and efficient. With adjustable shelves and door bins, users can customize the refrigerator's storage space to accommodate a variety of items, from large platters to small jars.

One of the standout technologies in the JCB2280 series is the Twin Cooling Plus system. This technology ensures that the refrigerator and freezer maintain optimal humidity levels, preventing freezer burn and keeping food fresh for longer periods. The separate cooling systems for the fridge and freezer also eliminate the transfer of odors between compartments, preserving the integrity of flavors.

Additionally, the series includes an advanced temperature control system that allows users to adjust settings to their precise needs. Using digital controls, it is easy to monitor and modify temperatures, ensuring that food is stored at ideal conditions.

Energy efficiency is paramount in today's appliances, and the Jenn-Air JCB2280 models excel in this area. They are designed to operate with minimal energy consumption without compromising performance. The Energy Star certification highlights their commitment to meeting energy efficiency standards.

The JCB2280 series also offers smart technology features. Through Wi-Fi connectivity, users can monitor and control their refrigerator remotely via a smartphone app. This feature provides alerts for door openings, temperature fluctuations, and even a shopping list tool, revolutionizing the way consumers manage their kitchen.

Aesthetically, the Jenn-Air JCB2280 line presents a stunning array of finishes, including classic white, elegant stainless steel, and bold black options. This versatility allows the refrigerators to complement a wide range of kitchen designs, from traditional to contemporary.

In summary, the Jenn-Air JCB2280HEW, JCB2280HES, JCB2280HEB, and JCB2280HEQ models combine spacious design, advanced cooling technologies, energy efficiency, and smart features. Whether it’s the enhanced food preservation capabilities or the modern aesthetic, this series is designed for consumers who seek both functionality and style in their kitchen.
