DOUBLE WALL OVEN
|
|
|
| PRODUCT DIMENSIONS |
| ||
|
|
|
| INCHES | CENTIMETERS | ||
B |
|
| A | 30 min | 76.2 | ||
A |
| B | 24 min | 61.0 |
| ||
|
|
| |||||
|
|
|
| ||||
|
|
| C | 51 7/8 | 1/16 | 131.8 | 0.1 |
|
|
| D | 24 min | 61.0 |
| |
|
|
| E | 28 1/2 | 1/16 | 72.4 | 0.1 |
|
| D | F | 52 1/4 min | 132.7 | ||
|
| G | 29 1/2 | 74.9 |
| ||
|
|
|
| ||||
|
|
| H1 | 25 1/2 | 64.8 | ||
| E |
| J | 4 - 10 | 10.2 - 25.4 | ||
C | 1 2 |
|
| MODEL SKUs |
| ||
|
|
| JJW8630DDB |
|
|
| |
|
|
| JJW8630DDS |
|
|
| |
|
|
| JJW8630DDW |
|
| ||
|
|
| F |
|
|
|
|
|
|
| J |
|
|
|
|
G
4

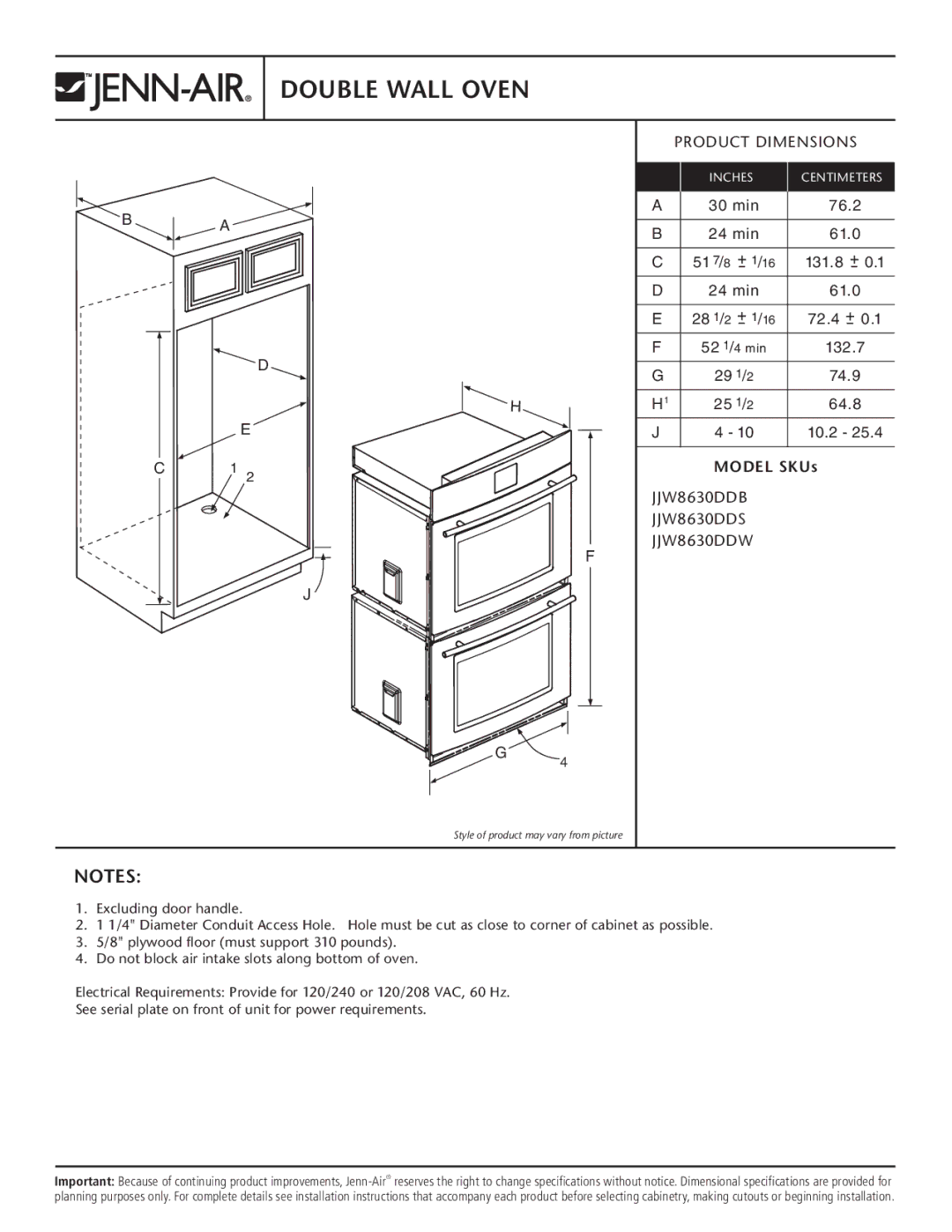

Style of product may vary from picture
NOTES:
1.Excluding door handle.
2.1 1/4" Diameter Conduit Access Hole. Hole must be cut as close to corner of cabinet as possible.
3.5/8" plywood floor (must support 310 pounds).
4.Do not block air intake slots along bottom of oven.
Electrical Requirements: Provide for 120/240 or 120/208 VAC, 60 Hz.
See serial plate on front of unit for power requirements.
Important: Because of continuing product improvements,
