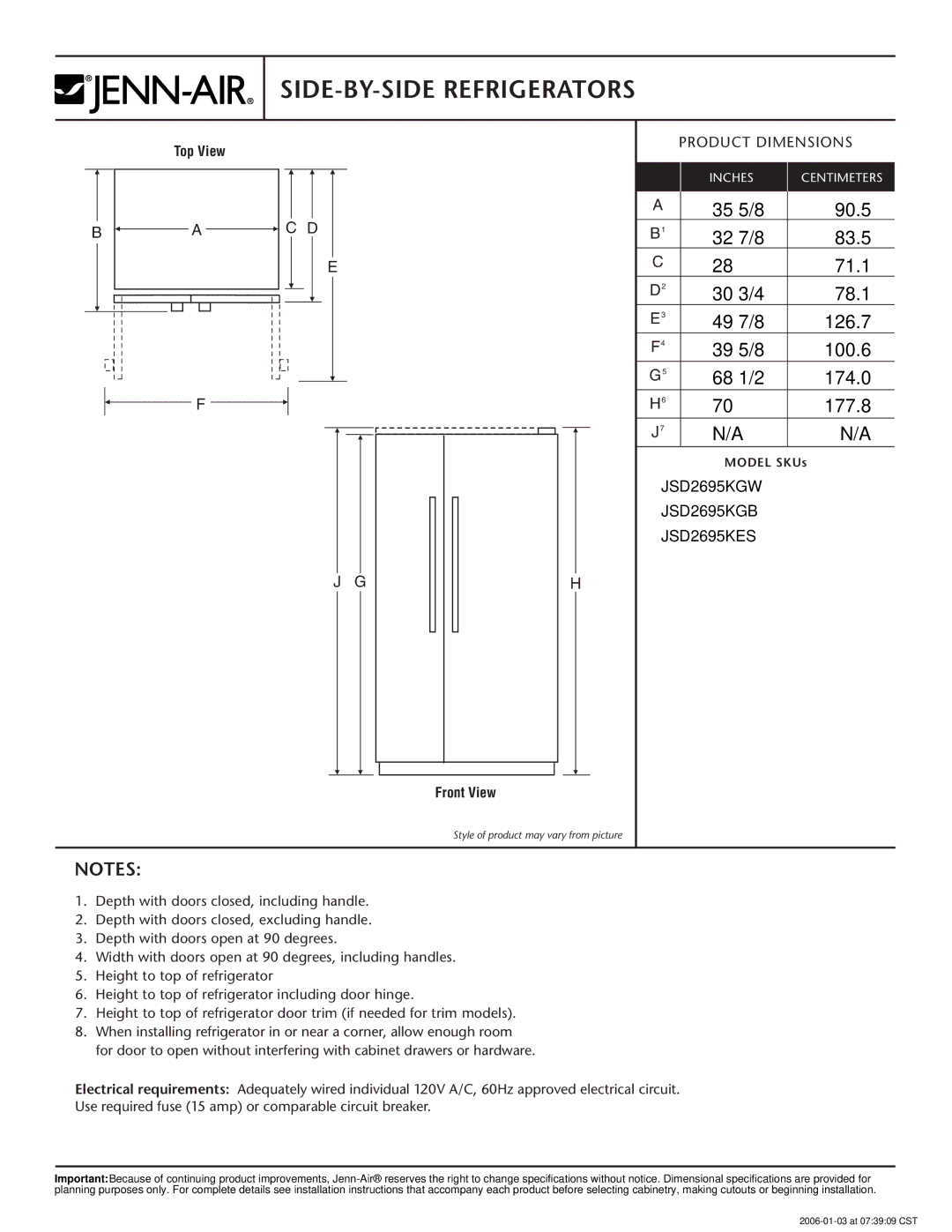

Jenn-Air dimensions SIDE-BY-SIDE Refrigerators, JSD2695KGW JSD2695KGB JSD2695KES, Top View

SIDE-BY-SIDE REFRIGERATORS

Top View

B A C D

E

F

J G

H

PRODUCT DIMENSIONS

	INCHES	CENTIMETERS
A	35 5/8	90.5
B1	32 7/8	83.5
C	28	71.1
D2	30 3/4	78.1
E3	49 7/8	126.7
F4	39 5/8	100.6
G5	68 1/2	174.0
H6	70	177.8
J7	N/A	N/A

MODEL SKUs

JSD2695KGW

JSD2695KGB

JSD2695KES

Front View

Style of product may vary from picture

NOTES:

1.Depth with doors closed, including handle.

2.Depth with doors closed, excluding handle.

3.Depth with doors open at 90 degrees.

4.Width with doors open at 90 degrees, including handles.

5.Height to top of refrigerator

6.Height to top of refrigerator including door hinge.

7.Height to top of refrigerator door trim (if needed for trim models).

8.When installing refrigerator in or near a corner, allow enough room for door to open without interfering with cabinet drawers or hardware.

Electrical requirements: Adequately wired individual 120V A/C, 60Hz approved electrical circuit.

Use required fuse (15 amp) or comparable circuit breaker.

Important:Because of continuing product improvements, Jenn-Air® reserves the right to change specifications without notice. Dimensional specifications are provided for planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.

2006-01-03 at 07:39:09 CST
