EN 59
Power Switch
To
AV
To
Connector

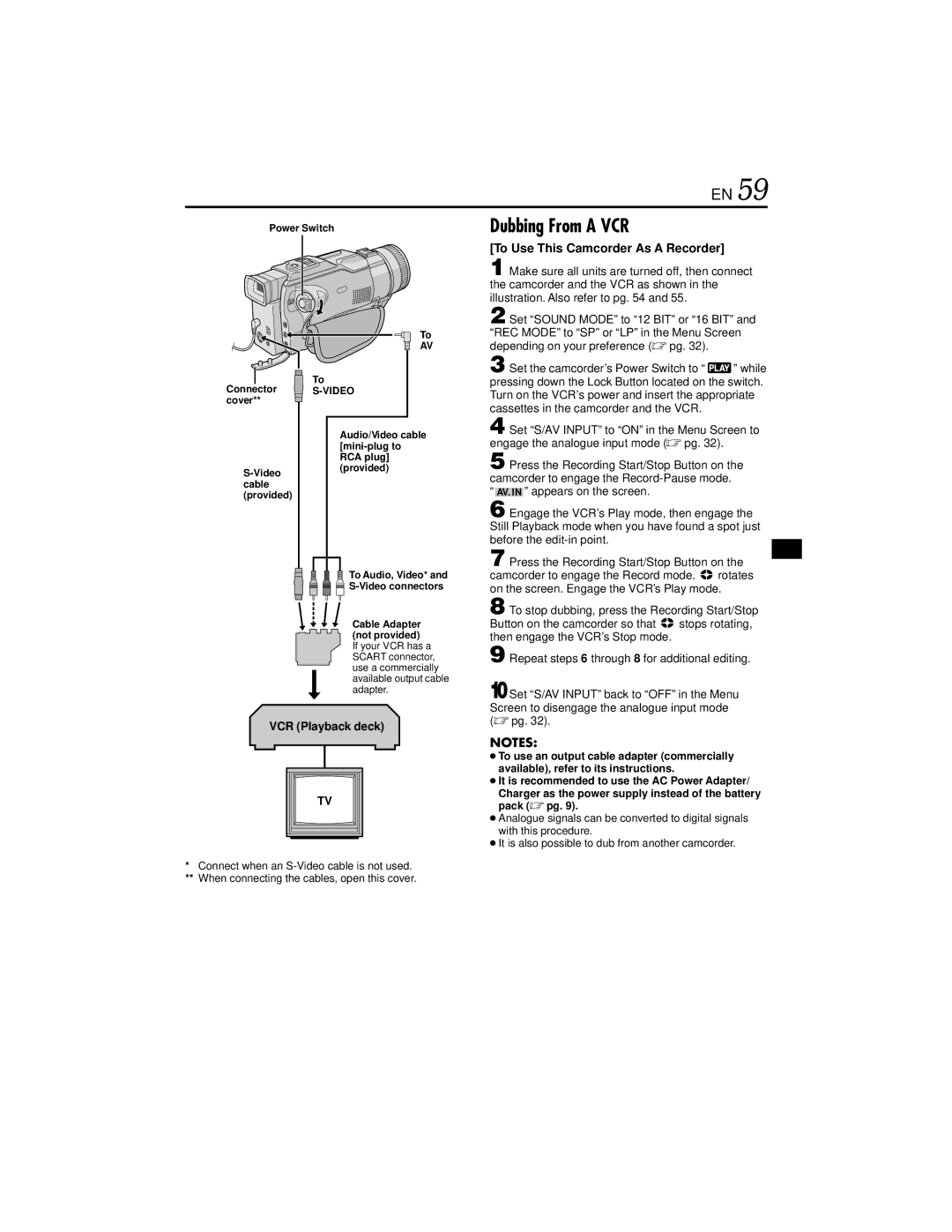

Dubbing From A VCR
[To Use This Camcorder As A Recorder]
1Make sure all units are turned off, then connect the camcorder and the VCR as shown in the illustration. Also refer to pg. 54 and 55.
2Set “SOUND MODE” to “12 BIT” or “16 BIT” and
“REC MODE” to “SP” or “LP” in the Menu Screen depending on your preference ( pg. 32).
3Set the camcorder’s Power Switch to “ ![[To Use This Camcorder As A Recorder]](/images/new-backgrounds/186882/1868823xi2.webp){kind=small}
” while pressing down the Lock Button located on the switch. Turn on the VCR’s power and insert the appropriate cassettes in the camcorder and the VCR.
Audio/Video cable
To Audio, Video* and
Cable Adapter (not provided)
If your VCR has a SCART connector, use a commercially available output cable adapter.
4Set “S/AV INPUT” to “ON” in the Menu Screen to engage the analogue input mode ( pg. 32).
5Press the Recording Start/Stop Button on the camcorder to engage the
AV. IN ” appears on the screen.
6Engage the VCR’s Play mode, then engage the Still Playback mode when you have found a spot just before the
7Press the Recording Start/Stop Button on the
camcorder to engage the Record mode.
rotates on the screen. Engage the VCR’s Play mode.
8To stop dubbing, press the Recording Start/Stop
Button on the camcorder so that
stops rotating, then engage the VCR’s Stop mode.
9Repeat steps 6 through 8 for additional editing.
10Set “S/AV INPUT” back to “OFF” in the Menu Screen to disengage the analogue input mode ( pg. 32).
VCR (Playback deck)
TV |
*Connect when an
**When connecting the cables, open this cover.
NOTES:
●To use an output cable adapter (commercially available), refer to its instructions.
●It is recommended to use the AC Power Adapter/
Charger as the power supply instead of the battery pack ( pg. 9).
●Analogue signals can be converted to digital signals with this procedure.
●It is also possible to dub from another camcorder.
