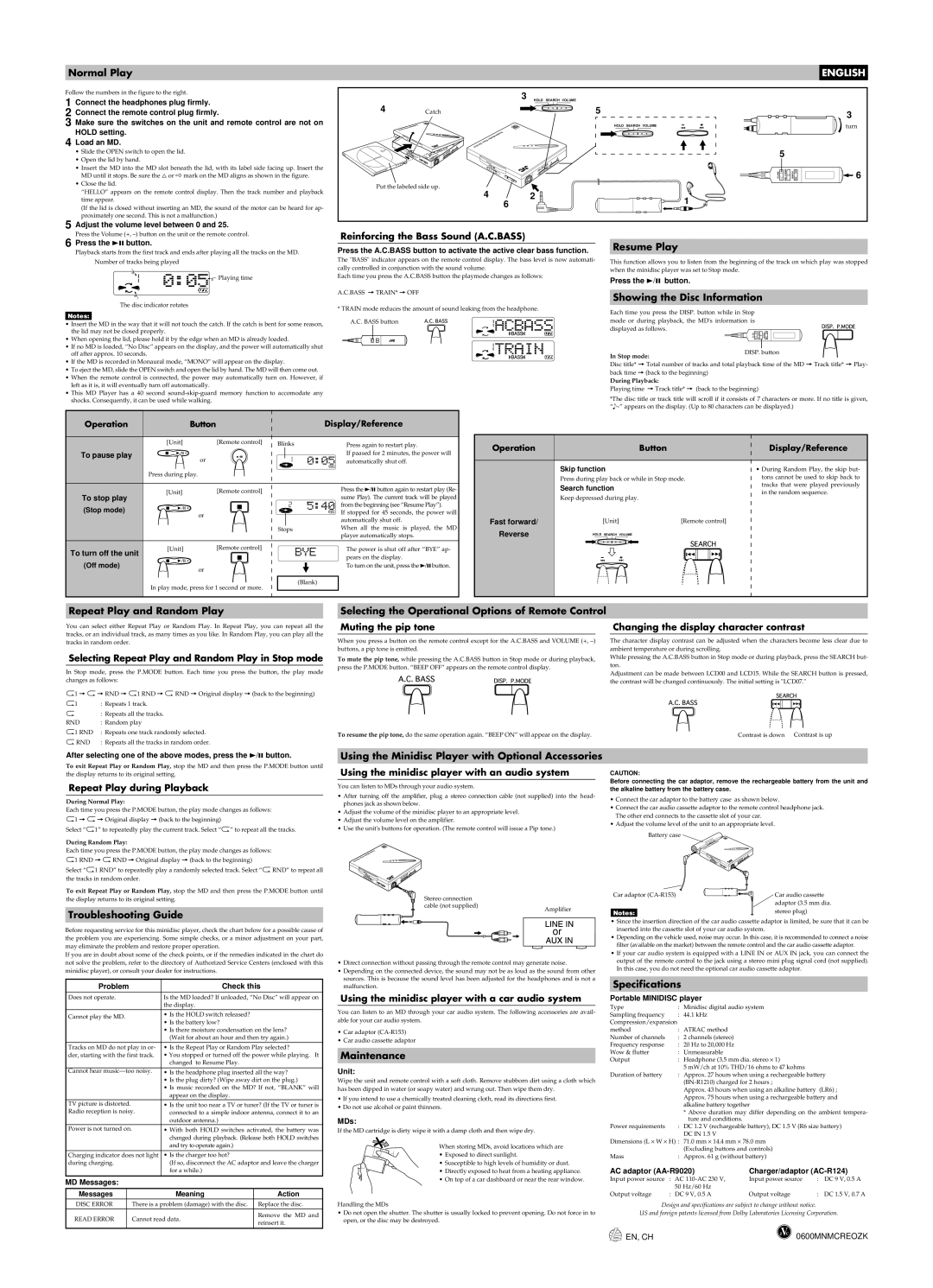

Normal Play ENGLISH

Follow the numbers in the figure to the right.

1 Connect the headphones plug firmly.

2 Connect the remote control plug firmly.

3 Make sure the switches on the unit and remote control are not on HOLD setting.

4 Load an MD.

•Slide the OPEN switch to open the lid.

•Open the lid by hand.

•Insert the MD into the MD slot beneath the lid, with its label side facing up. Insert the MD until it stops. Be sure the %or ]mark on the MD aligns as shown in the figure.

•Close the lid.

“HELLO” appears on the remote control display. Then the track number and playback time appear.

(If the lid is closed without inserting an MD, the sound of the motor can be heard for ap- proximately one second. This is not a malfunction.)

5 Adjust the volume level between 0 and 25.

	3	HOLD SEARCH VOLUME
4	Catch	5

HOLD SEARCH VOLUME

Put the labeled side up.

4 6 2 1

5

VOLUME DISP. P.MODE SEARCH

3

turn

6

Press the Volume (+, –) button on the unit or the remote control.

6 Press the 38 button.

Playback starts from the first track and ends after playing all the tracks on the MD.

Number of tracks being played

Playing time

The disc indicator rotates

Notes:

• Insert the MD in the way that it will not touch the catch. If the catch is bent for some reason,

Reinforcing the Bass Sound (A.C.BASS)

Press the A.C.BASS button to activate the active clear bass function.

The "BASS" indicator appears on the remote control display. The bass level is now automati- cally controlled in conjunction with the sound volume.

Each time you press the A.C.BASS button the playmode changes as follows:

A.C.BASS =TRAIN* =OFF

* TRAIN mode reduces the amount of sound leaking from the headphone.

A.C. BASS button

Resume Play

This function allows you to listen from the beginning of the track on which play was stopped when the minidisc player was set to Stop mode.

Press the 3/8 button.

Showing the Disc Information

Each time you press the DISP. button while in Stop mode or during playback, the MD's information is displayed as follows.

the lid may not be closed properly.

• When opening the lid, please hold it by the edge when an MD is already loaded.

• If no MD is loaded, “No Disc” appears on the display, and the power will automatically shut

off after approx. 10 seconds.

• If the MD is recorded in Monaural mode, “MONO” will appear on the display.

A.C.BASS

In Stop mode:

VOLUME DISP. P.MODE SEARCH

DISP. button

• To eject the MD, slide the OPEN switch and open the lid by hand. The MD will then come out.

• When the remote control is connected, the power may automatically turn on. However, if

left as it is, it will eventually turn off automatically.

• This MD Player has a 40 second sound-skip-guard memory function to accomodate any

shocks. Consequently, it can be used while walking.

Disc title* = Total number of tracks and total playback time of the MD = Track title* = Play- back time =(back to the beginning)

During Playback:

Playing time =Track title* = (back to the beginning)

*The disc title or track title will scroll if it consists of 7 characters or more. If no title is given, “e~” appears on the display. (Up to 80 characters can be displayed.)

Operation		Button		Display/Reference
	[Unit]	[Remote control]	Blinks	Press again to restart play.
To pause play		or		If paased for 2 minutes, the power will
				automatically shut off.
	Press during play.
To stop play	[Unit]	[Remote control]		Press the 3/8button again to restart play (Re-
				sume Play). The current track will be played
(Stop mode)				from the beginning (see “Resume Play”).
		or		If stopped for 45 seconds, the power will
				automatically shut off.
			Stops	When all the music is played, the MD
				player automatically stops.
To turn off the unit	[Unit]	[Remote control]		The power is shut off after “BYE” ap-
				pears on the display.
(Off mode)		or		To turn on the unit, press the 3/8button.

(Blank)

In play mode, press for 1 second or more.

Operation

Fast forward/

Reverse

	Button		Display/Reference
Skip function			• During Random Play, the skip but-
Press during play back or while in Stop mode.			tons cannot be used to skip back to
			tracks that were played previously
Search function
			in the random sequence.
Keep depressed during play.
	[Unit]	[Remote control]
	HOLD SEARCH VOLUME

Repeat Play and Random Play

You can select either Repeat Play or Random Play. In Repeat Play, you can repeat all the tracks, or an individual track, as many times as you like. In Random Play, you can play all the tracks in random order.

Selecting Repeat Play and Random Play in Stop mode

In Stop mode, press the P.MODE button. Each time you press the button, the play mode changes as follows:

P1 =P=RND = P1 RND =PRND =Original display =(back to the beginning) : Repeats 1 track.

P	: Repeats all the tracks.
RND	: Random play
P1 RND	: Repeats one track randomly selected.
PRND	: Repeats all the tracks in random order.

Selecting the Operational Options of Remote Control

Muting the pip tone	Changing the display character contrast
When you press a button on the remote control except for the A.C.BASS and VOLUME (+, –)	The character display contrast can be adjusted when the characters become less clear due to
buttons, a pip tone is emitted.	ambient temperature or during scrolling.
To mute the pip tone, while pressing the A.C.BASS button in Stop mode or during playback,	While pressing the A.C.BASS button in Stop mode or during playback, press the SEARCH but-
	ton.
press the P.MODE button. “BEEP OFF” appears on the remote control display.
	Adjustment can be made between LCD00 and LCD15. While the SEARCH button is pressed,
	the contrast will be changed continuously. The initial setting is "LCD07."

To resume the pip tone, do the same operation again. “BEEP ON” will appear on the display. Contrast is down Contrast is up

After selecting one of the above modes, press the 3/8 button.

To exit Repeat Play or Random Play, stop the MD and then press the P.MODE button until the display returns to its original setting.

Repeat Play during Playback

During Normal Play:

Each time you press the P.MODE button, the play mode changes as follows: P1 =P=Original display =(back to the beginning)

Select “P1” to repeatedly play the current track. Select “P” to repeat all the tracks.

During Random Play:

Each time you press the P.MODE button, the play mode changes as follows: P1 RND =PRND =Original display =(back to the beginning)

Select “P1 RND” to repeatedly play a randomly selected track. Select “PRND” to repeat all the tracks in random order.

To exit Repeat Play or Random Play, stop the MD and then press the P.MODE button until the display returns to its original setting.

Troubleshooting Guide

Before requesting service for this minidisc player, check the chart below for a possible cause of the problem you are experiencing. Some simple checks, or a minor adjustment on your part, may eliminate the problem and restore proper operation.

If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this minidisc player), or consult your dealer for instructions.

Problem		Check this
Does not operate.		Is the MD loaded? If unloaded, “No Disc” will appear on
		the display.
Cannot play the MD.		• Is the HOLD switch released?
		• Is the battery low?
		• Is there moisture condensation on the lens?
		(Wait for about an hour and then try again.)
Tracks on MD do not play in or-		• Is the Repeat Play or Random Play selected?
der, starting with the first track.		• You stopped or turned off the power while playing. It
		changed to Resume Play.
Cannot hear music—too noisy.		• Is the headphone plug inserted all the way?
		• Is the plug dirty? (Wipe away dirt on the plug.)
		• Is music recorded on the MD? If not, “BLANK” will
		appear on the display.
TV picture is distorted.		• Is the unit too near a TV or tuner? (If the TV or tuner is
Radio reception is noisy.		connected to a simple indoor antenna, connect it to an
		outdoor antenna.)
Power is not turned on.		• With both HOLD switches activated, the battery was
		changed during playback. (Release both HOLD switches
		and try to operate again.)
Charging indicator does not light		• Is the charger too hot?
during charging.		(If so, disconnect the AC adaptor and leave the charger
Ê		for a while.)
MD Messages:
Messages		Meaning	Action
DISC ERROR	There is a problem (damage) with the disc.		Replace the disc.
READ ERROR	Cannot read data.		Remove the MD and
			reinsert it.

Using the Minidisc Player with Optional Accessories

Using the minidisc player with an audio system

You can listen to MDs through your audio system.

•After turning off the amplifier, plug a stereo connection cable (not supplied) into the head- phones jack as shown below.

•Adjust the volume of the minidisc player to an appropriate level.

•Adjust the volume level on the amplifier.

•Use the unit's buttons for operation. (The remote control will issue a Pip tone.)

Stereo connection

cable (not supplied)

Amplifier

or

•Direct connection without passing through the remote control may generate noise.

•Depending on the connected device, the sound may not be as loud as the sound from other sources. This is because the sound level has been adjusted for the headphones and is not a malfunction.

Using the minidisc player with a car audio system

You can listen to an MD through your car audio system. The following accessories are avail- able for your car audio system.

•Car adaptor (CA-R153)

•Car audio cassette adaptor

Maintenance

Unit:

Wipe the unit and remote control with a soft cloth. Remove stubborn dirt using a cloth which has been dipped in water (or soapy water) and wrung out. Then wipe them dry.

•If you intend to use a chemically treated cleaning cloth, read its directions first.

•Do not use alcohol or paint thinners.

MDs:

If the MD cartridge is dirty wipe it with a damp cloth and then wipe dry.

When storing MDs, avoid locations which are

• Exposed to direct sunlight.

•Susceptible to high levels of humidity or dust.

•Directly exposed to heat from a heating appliance.

•On top of a car dashboard or near the rear window.

Handling the MDs

•Do not open the shutter. The shutter is usually locked to prevent opening. Do not force in to open, or the disc may be destroyed.

CAUTION:

Before connecting the car adaptor, remove the rechargeable battery from the unit and the alkaline battery from the battery case.

•Connect the car adaptor to the battery case as shown below.

•Connect the car audio cassette adaptor to the remote control headphone jack. The other end connects to the cassette slot of your car.

•Adjust the volume level of the unit to an appropriate level.

Battery case

Car adaptor (CA-R153)	Car audio cassette
	adaptor (3.5 mm dia.
Notes:	stereo plug)

•Since the insertion direction of the car audio cassette adaptor is limited, be sure that it can be inserted into the cassette slot of your car audio system.

•Depending on the vehicle used, noise may occur. In this case, it is recommended to connect a noise filter (available on the market) between the remote control and the car audio cassette adaptor.

•If your car audio system is equipped with a LINE IN or AUX IN jack, you can connect the output of the remote control to the jack using a stereo mini plug signal cord (not supplied). In this case, you do not need the optional car audio cassette adaptor.

Specifications

Portable MINIDISC player

Type	:	Minidisc digital audio system
Sampling frequency	:	44.1 kHz
Compression/expansion
method	: ATRAC method
Number of channels	:	2 channels (stereo)
Frequency response	:	20 Hz to 20,000 Hz
Wow & flutter	: Unmeasurable
Output	: Headphone (3.5 mm dia. stereo × 1)
		5 mW/ch at 10% THD/16 ohms to 47 kohms
Duration of battery	: Approx. 27 hours when using a rechargeable battery
		(BN-R1210) charged for 2 hours ;
		Approx. 43 hours when using an alkaline battery (LR6) ;
		Approx. 75 hours when using a rechargeable battery and
		alkaline battery together
		* Above duration may differ depending on the ambient tempera-
		ture and conditions.
Power requirements	: DC 1.2 V (rechargeable battery), DC 1.5 V (R6 size battery)
		DC IN 1.5 V
Dimensions (L × W × H) :		71.0 mm × 14.4 mm × 78.0 mm
		(Excluding buttons and controls)
Mass	: Approx. 61 g (without battery)

AC adaptor (AA-R9020)		Charger/adaptor (AC-R124)
Input power source	: AC 110-AC 230 V,	Input power source	:	DC 9 V, 0.5 A
	50 Hz/60 Hz
Output voltage	: DC 9 V, 0.5 A	Output voltage	:	DC 1.5 V, 0.7 A

Design and specifications are subject to change without notice.
