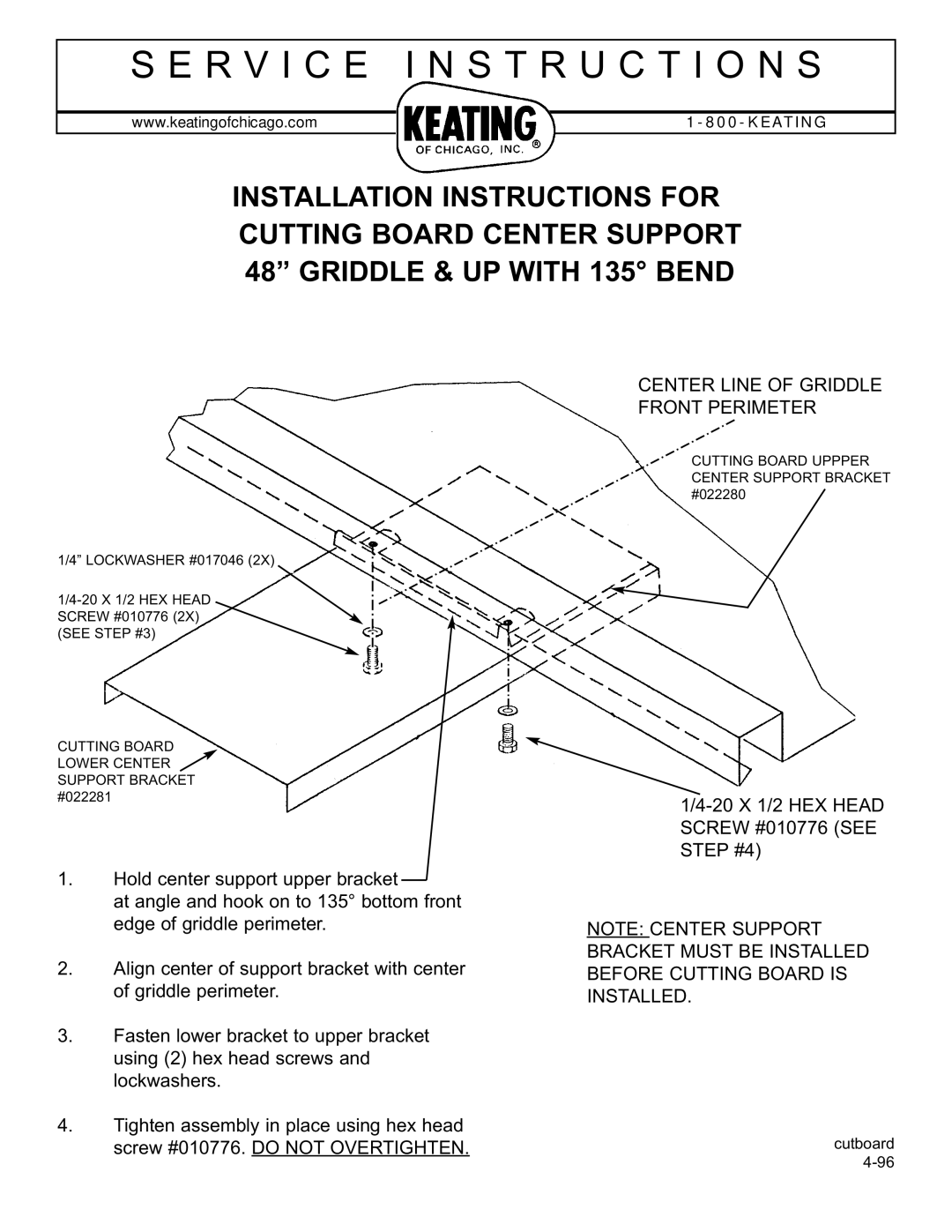

INSTALLATION INSTRUCTIONS FOR CUTTING BOARD CENTER SUPPORT 48” GRIDDLE & UP WITH 135° BEND

1/4” LOCKWASHER #017046 (2X)

1/4-20 X 1/2 HEX HEAD SCREW #010776 (2X) (SEE STEP #3)

CUTTING BOARD LOWER CENTER SUPPORT BRACKET #022281

1.Hold center support upper bracket

at angle and hook on to 135° bottom front edge of griddle perimeter.

2.Align center of support bracket with center of griddle perimeter.

3.Fasten lower bracket to upper bracket using (2) hex head screws and lockwashers.

4.Tighten assembly in place using hex head screw #010776. DO NOT OVERTIGHTEN.

CENTER LINE OF GRIDDLE FRONT PERIMETER

CUTTING BOARD UPPPER CENTER SUPPORT BRACKET #022280

1/4-20 X 1/2 HEX HEAD SCREW #010776 (SEE STEP #4)

NOTE: CENTER SUPPORT BRACKET MUST BE INSTALLED BEFORE CUTTING BOARD IS INSTALLED.
