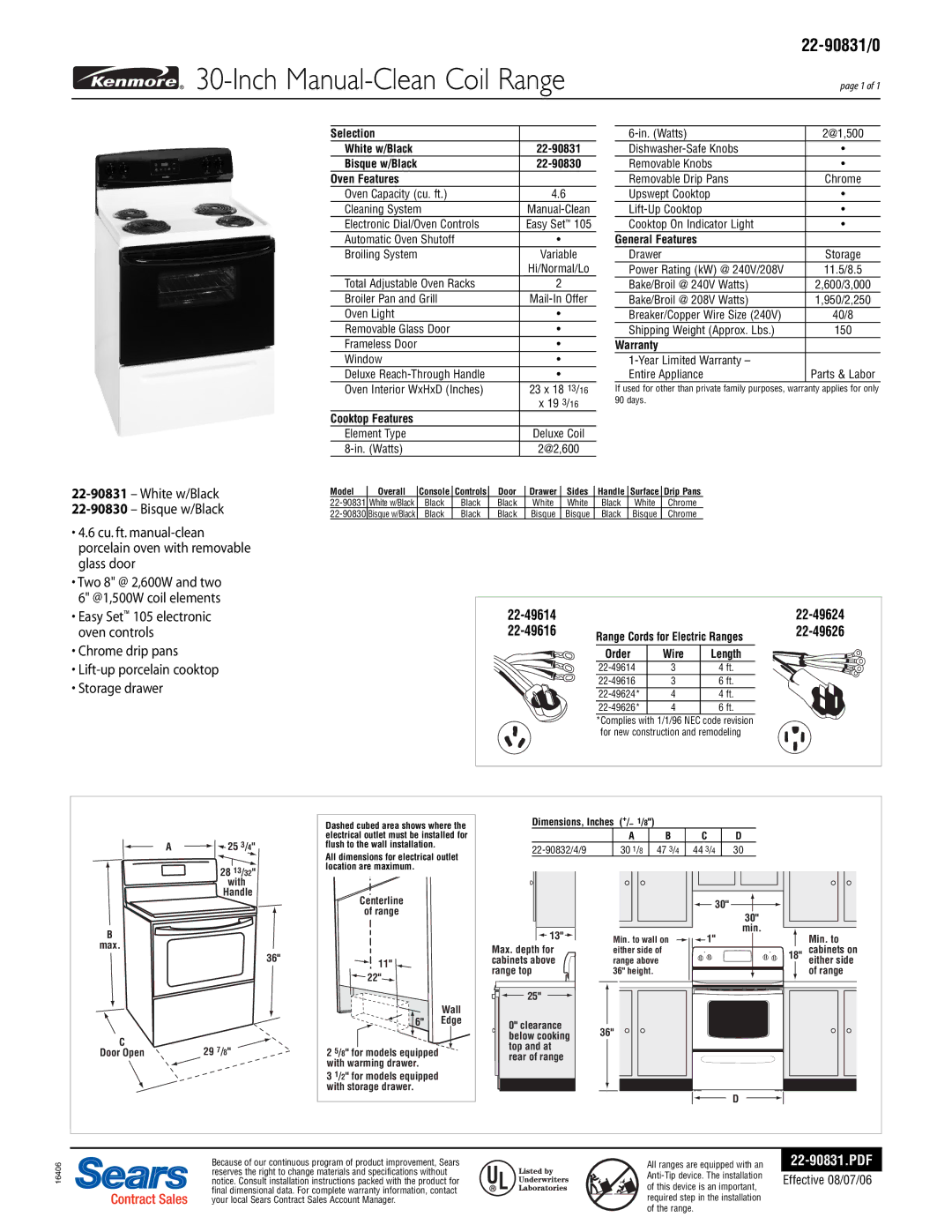

30-Inch Manual-Clean Coil Range

22-90831/0

page 1 of 1







Selection





White w/Black

22-90831



Bisque w/Black

22-90830



Oven Features





Oven Capacity (cu. ft.)

4.6



Cleaning System

Manual-Clean



Electronic Dial/Oven Controls

Easy Set105



Automatic Oven Shutoff



Broiling System

Variable





Hi/Normal/Lo



Total Adjustable Oven Racks

2



Broiler Pan and Grill

Mail-In Offer



Oven Light



Removable Glass Door



Frameless Door



Window



Deluxe Reach-Through Handle



Oven Interior WxHxD (Inches)

23 x 18 13/16





x 19 3/16



Cooktop Features





Element Type

Deluxe Coil



8-in. (Watts)

2@2,600



6-in. (Watts)

2@1,500



Dishwasher-Safe Knobs



Removable Knobs



Removable Drip Pans

Chrome



Upswept Cooktop



Lift-Up Cooktop



Cooktop On Indicator Light



General Features





Drawer

Storage



Power Rating (kW) @ 240V/208V

11.5/8.5



Bake/Broil @ 240V Watts)

2,600/3,000



Bake/Broil @ 208V Watts)

1,950/2,250



Breaker/Copper Wire Size (240V)

40/8



Shipping Weight (Approx. Lbs.)

150



Warranty





1-Year Limited Warranty –





Entire Appliance

Parts & Labor

If used for other than private family purposes, warranty applies for only 90 days.

22-90831– White w/Black

22-90830– Bisque w/Black

4.6 cu. ft. manual-clean porcelain oven with removable glass door

Two 8" @ 2,600W and two 6" @1,500W coil elements

Easy Set105 electronic oven controls

Chrome drip pans

Lift-up porcelain cooktop

Storage drawer

Model

Overall

Console

Controls

Door

Drawer

Sides

Handle

Surface

Drip Pans

22-90831

White w/Black

Black

Black

Black

White

White

Black

White

Chrome

22-90830

Bisque w/Black

Black

Black

Black

Bisque

Bisque

Black

Bisque

Chrome

22-49614







22-49624

22-49616

Range Cords for Electric Ranges

22-49626







Order

Wire

Length





22-49614

3

4 ft.





22-49616

3

6 ft.





22-49624*

4

4 ft.





22-49626*

4

6 ft.



*Complies with 1/1/96 NEC code revision for new construction and remodeling

1

25

3

/4"

30A /8"



28 13/32" with Handle

47B3/4" maxax..

36"

Dashed cubed area shows where the electrical outlet must be installed for flush to the wall installation.

All dimensions for electrical outlet location are maximum.

Centerline

of range

11" 22"

Dimensions, Inches (+/1/8")



A

B





C



D





22-90832/4/9

30 1/8

47 3/4

44 3/4

30











































































30"





30"

13"



min.

Min. to wall on

1"

Max. depth for

either side of



cabinets above

range above



range top

36" height.



Min. to cabinets on

18" either side of range

3



44C/4"

29 7/8"

Door Open

Wall

6" Edge

2 5/8" for models equipped with warming drawer.

3 1/2" for models equipped with storage drawer.

25"

0" clearance

below cooking

top and at

rear of range

36"

30"D

16406



Because of our continuous program of product improvement, Sears







All ranges are equipped with an

22-90831.PDF



reserves the right to change materials and specifications without







Anti-Tip device. The installation

Effective 08/07/06



notice. Consult installation instructions packed with the product for















of this device is an important,



final dimensional data. For complete warranty information, contact

















required step in the installation





your local Sears Contract Sales Account Manager.



















of the range.



Page 1
