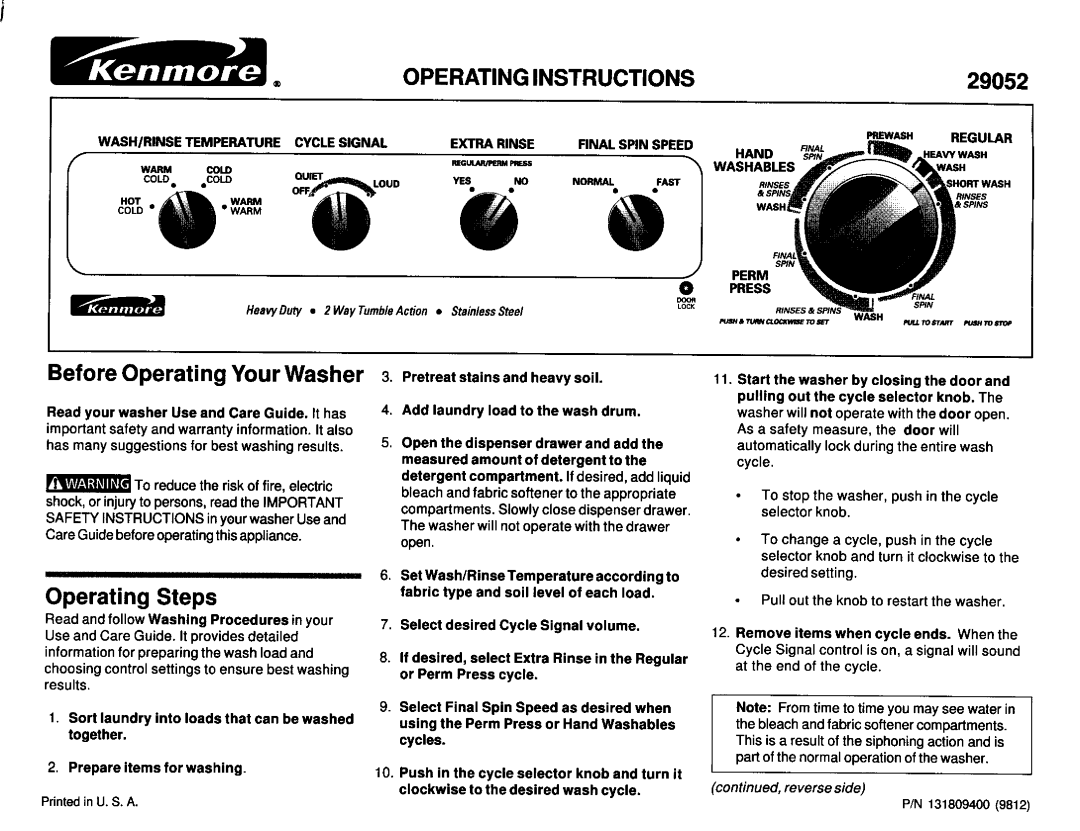

Kenmore 29052 operating instructions Operating Instructions, Before Operating Your Washer

	®		OPERATING INSTRUCTIONS
WASH/RINSE TEMPERATURE		CYCLE SIGNAL	EXTRA RINSE		FINAL SPIN SPEED
f
WARM	COLD		F_GUtAR/FIS_M
		QUIET
COLD	COLD		YES	NO	NORMAL	FAST
		LOUD
HOT	WARM
COLD •	• WARM

	DOOR
HeavyDuty • 2 Way TumbleAction • StainlessSteel	LOCK

29052

PREWASH REGULAR

HAND RIVAL

WASHABLES

RINSES

RINSES ft SPINS

SPIN

PERM

PRESS

Before Operating Your Washer

Read your washer Use and Care Guide. It has important safety and warranty information. It also has many suggestions for best washing results.

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT

SAFETY INSTRUCTIONS in your washer Use and Care Guide before operating this appliance.

Operating Steps

Read and follow Washing Procedures in your Use and Care Guide. It provides detailed information for preparing the wash load and

choosing control settings to ensure best washing results.

1.Sort laundry into loads that can be washed together.

2.Prepare items for washing.

3.Pretreat stains and heavy soil.

4.Add laundry load to the wash drum.

,Open the dispenser drawer and add the measured amount of detergent to the detergent compartment. If desired, add liquid bleach and fabric softener to the appropriate compartments. Slowly close dispenser drawer. The washer will not operate with the drawer open.

6.Set Wash/Rinse Temperature according to fabric type and soil level of each load.

7.Select desired Cycle Signal volume.

8.If desired, select Extra Rinse in the Regular or Perm Press cycle.

9.Select Final Spin Speed as desired when using the Perm Press or Hand Washables cycles.

10.Push in the cycle selector knob and turn it clockwise to the desired wash cycle.

11.Start the washer by closing the door and pulling out the cycle selector knob. The washer will not operate with the door open. As a safety measure, the door will automatically lock during the entire wash cycle.

To stop the washer, push in the cycle selector knob.

To change a cycle, push in the cycle selector knob and turn it clockwise to the desired setting.

Pull out the knob to restart the washer.

12.Remove items when cycle ends. When the Cycle Signal control is on, a signal will sound at the end of the cycle.

Note: From time to time you may see water in

the bleach and fabric softener compartments.

This is a result of the siphoning action and is part of the normal operation of the washer.

Continued, reverse side)

Printed in U. S. A. P/N 131809400 (9812)
