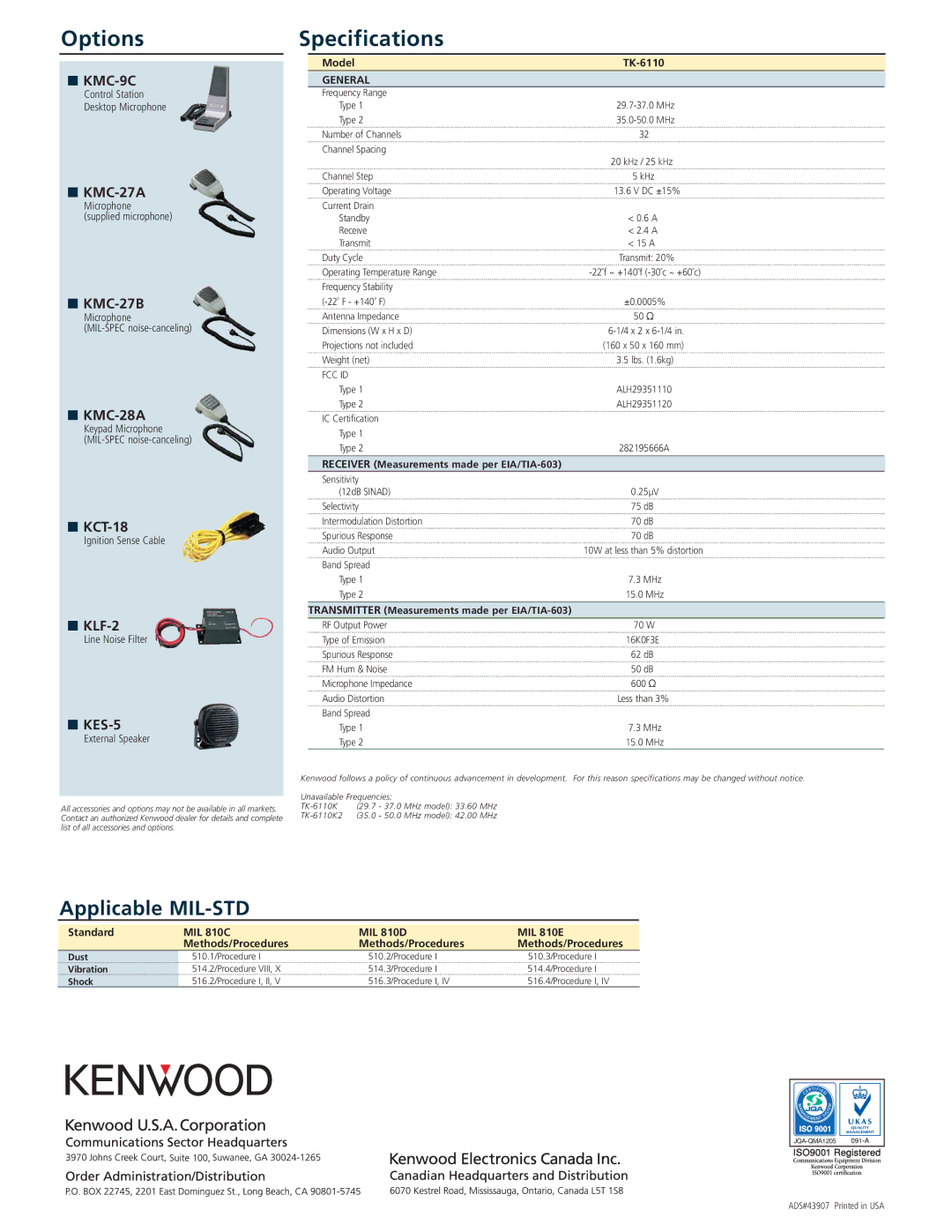

Options

KMC-9C

Control Station

Desktop Microphone

KMC-27A

Microphone

(supplied microphone)

KMC-27B

Microphone

(MIL-SPEC noise-canceling)

KMC-28A

Keypad Microphone (MIL-SPEC noise-canceling)

KCT-18

Ignition Sense Cable

KLF-2

Line Noise Filter

KES-5

External Speaker

All accessories and options may not be available in all markets. Contact an authorized Kenwood dealer for details and complete list of all accessories and options.

Specifications





Model

TK-6110

GENERAL



Frequency Range



Type 1

29.7-37.0 MHz

Type 2

35.0-50.0 MHz

Number of Channels

32

Channel Spacing





20 kHz / 25 kHz

Channel Step

5 kHz

Operating Voltage

13.6 V DC ±15%

Current Drain



Standby

< 0.6 A

Receive

< 2.4 A

Transmit

< 15 A

Duty Cycle

Transmit: 20%

Operating Temperature Range

-22˚f ~ +140˚f (-30˚c ~ +60˚c)

Frequency Stability



(-22˚ F - +140˚ F)

±0.0005%

Antenna Impedance

50 Ω

Dimensions (W x H x D)

6-1/4 x 2 x 6-1/4 in.

Projections not included

(160 x 50 x 160 mm)

Weight (net)

3.5 lbs. (1.6kg)

FCC ID



Type 1

ALH29351110

Type 2

ALH29351120

IC Certification



Type 1



Type 2

282195666A

RECEIVER (Measurements made per EIA/TIA-603)



Sensitivity



(12dB SINAD)

0.25µV

Selectivity

75 dB

Intermodulation Distortion

70 dB

Spurious Response

70 dB

Audio Output

10W at less than 5% distortion

Band Spread



Type 1

7.3 MHz

Type 2

15.0 MHz

TRANSMITTER (Measurements made per EIA/TIA-603)



RF Output Power

70 W

Type of Emission

16K0F3E

Spurious Response

62 dB

FM Hum & Noise

50 dB

Microphone Impedance

600 Ω

Audio Distortion

Less than 3%

Band Spread



Type 1

7.3 MHz

Type 2

15.0 MHz

Kenwood follows a policy of continuous advancement in development. For this reason specifications may be changed without notice.

Unavailable Frequencies:

TK-6110K (29.7 - 37.0 MHz model): 33.60 MHz

TK-6110K2 (35.0 - 50.0 MHz model): 42.00 MHz

Applicable MIL-STD

Standard

MIL 810C

MIL 810D

MIL 810E



Methods/Procedures

Methods/Procedures

Methods/Procedures

Dust

510.1/Procedure I

510.2/Procedure I

510.3/Procedure I

Vibration

514.2/Procedure VIII, X

514.3/Procedure I

514.4/Procedure I

Shock

516.2/Procedure I, II, V

516.3/Procedure I, IV

516.4/Procedure I, IV

JQA-QMA1205

ADS#43907 Printed in USA
