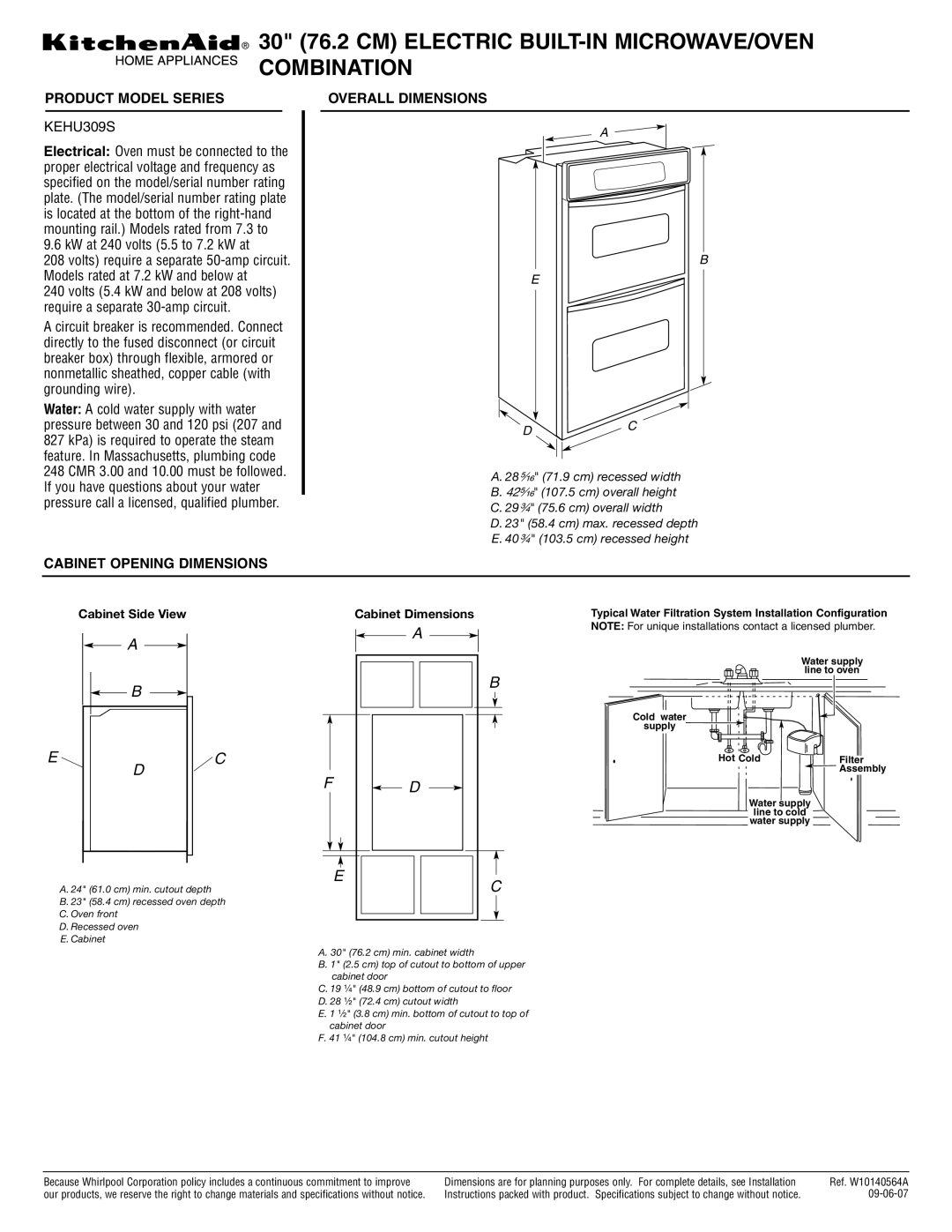

® 30" (76.2 CM) ELECTRIC BUILT-IN MICROWAVE/OVEN

COMBINATION

PRODUCT MODEL SERIES

KEHU309S

Electrical: Oven must be connected to the proper electrical voltage and frequency as specified on the model/serial number rating plate. (The model/serial number rating plate is located at the bottom of the right-hand mounting rail.) Models rated from 7.3 to 9.6 kW at 240 volts (5.5 to 7.2 kW at

208 volts) require a separate 50-amp circuit. Models rated at 7.2 kW and below at

240 volts (5.4 kW and below at 208 volts) require a separate 30-amp circuit.

A circuit breaker is recommended. Connect directly to the fused disconnect (or circuit breaker box) through flexible, armored or nonmetallic sheathed, copper cable (with grounding wire).

Water: A cold water supply with water pressure between 30 and 120 psi (207 and 827 kPa) is required to operate the steam feature. In Massachusetts, plumbing code 248 CMR 3.00 and 10.00 must be followed. If you have questions about your water pressure call a licensed, qualified plumber.

OVERALL DIMENSIONS

A

B

E

DC

A. 28⁵⁄₁₆" (71.9 cm) recessed width

B. 42⁵⁄₁₆" (107.5 cm) overall height

C. 29³⁄₄" (75.6 cm) overall width

D. 23" (58.4 cm) max. recessed depth

E. 40³⁄₄ " (103.5 cm) recessed height

CABINET OPENING DIMENSIONS

Cabinet Side View

A

Cabinet Dimensions

Typical Water Filtration System Installation Configuration











NOTE: For unique installations contact a licensed plumber.





A

























































E







B







C

















D





















A.

































B.

















C.

















D.

















E.

















































A. 24" (61.0 cm) min. cutout depth B. 23" (58.4 cm) recessed oven depth C. Oven front

D. Recessed oven E. Cabinet

F

E

D

Water supply

line to oven

B

Cold water

supply

Hot Cold

Filter



Assembly

Water supply

line to cold

water supply

C

A. 30" (76.2 cm) min. cabinet width

B. 1" (2.5 cm) top of cutout to bottom of upper cabinet door

C. 19 ¹⁄₄" (48.9 cm) bottom of cutout to floor D. 28 ¹⁄₂" (72.4 cm) cutout width

E. 1 ¹⁄₂" (3.8 cm) min. bottom of cutout to top of cabinet door

F. 41 ¹⁄₄" (104.8 cm) min. cutout height

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Ref. W10140564A

Instructions packed with product. Specifications subject to change without notice.

09-06-07
