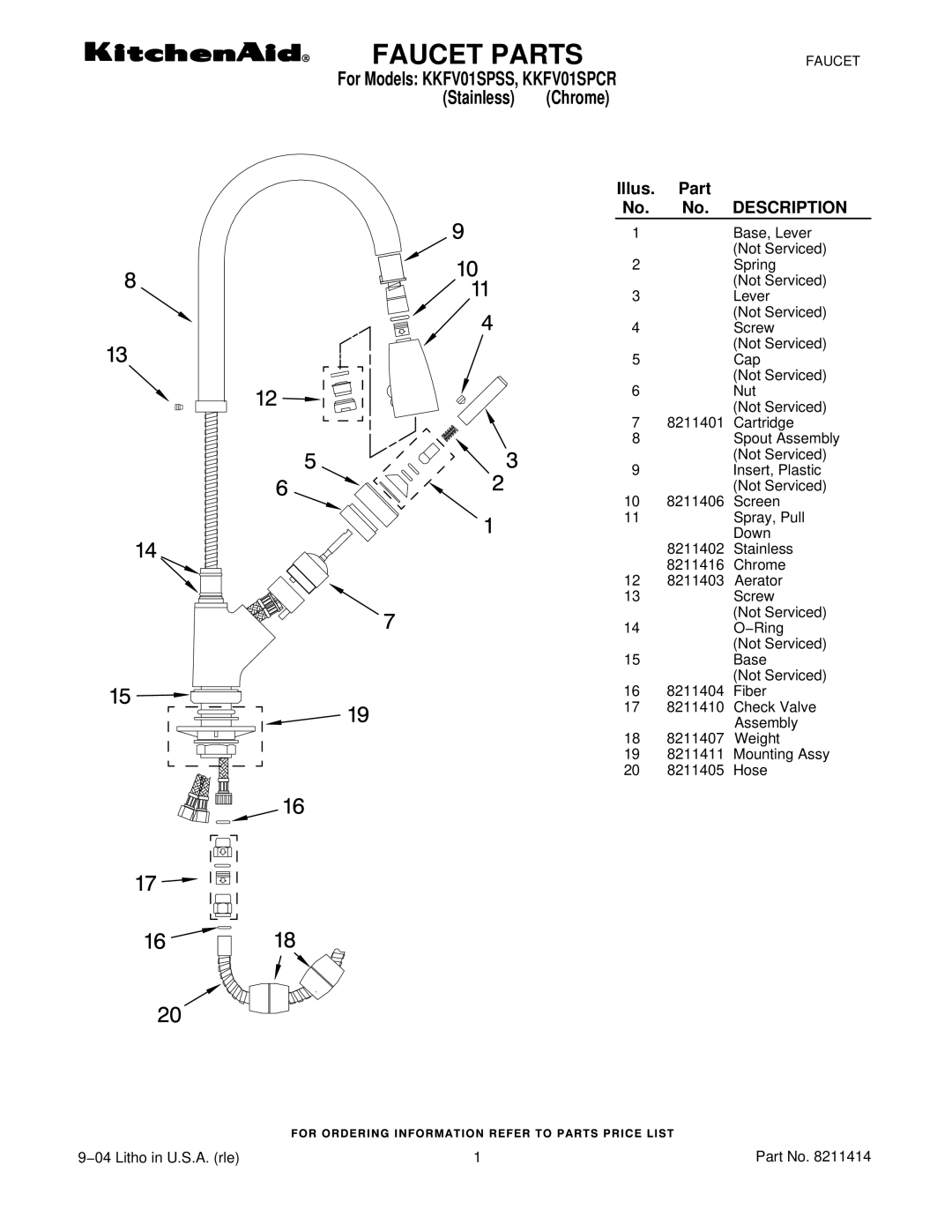

FAUCET PARTS

FAUCET PARTS

For Models: KKFV01SPSS, KKFV01SPCR

(Stainless) (Chrome)

FAUCET

Illus.

Part



No.

No.

DESCRIPTION

1



Base, Lever





(Not Serviced)

2



Spring





(Not Serviced)

3



Lever





(Not Serviced)

4



Screw





(Not Serviced)

5



Cap





(Not Serviced)

6



Nut





(Not Serviced)

7

8211401

Cartridge

8



Spout Assembly





(Not Serviced)

9



Insert, Plastic





(Not Serviced)

10

8211406

Screen

11



Spray, Pull





Down



8211402

Stainless



8211416

Chrome

12

8211403

Aerator

13



Screw





(Not Serviced)

14



O−Ring





(Not Serviced)

15



Base





(Not Serviced)

16

8211404

Fiber

17

8211410

Check Valve





Assembly

18

8211407

Weight

19

8211411

Mounting Assy

20

8211405

Hose

9−04 Litho in U.S.A. (rle)

1

Part No. 8211414
