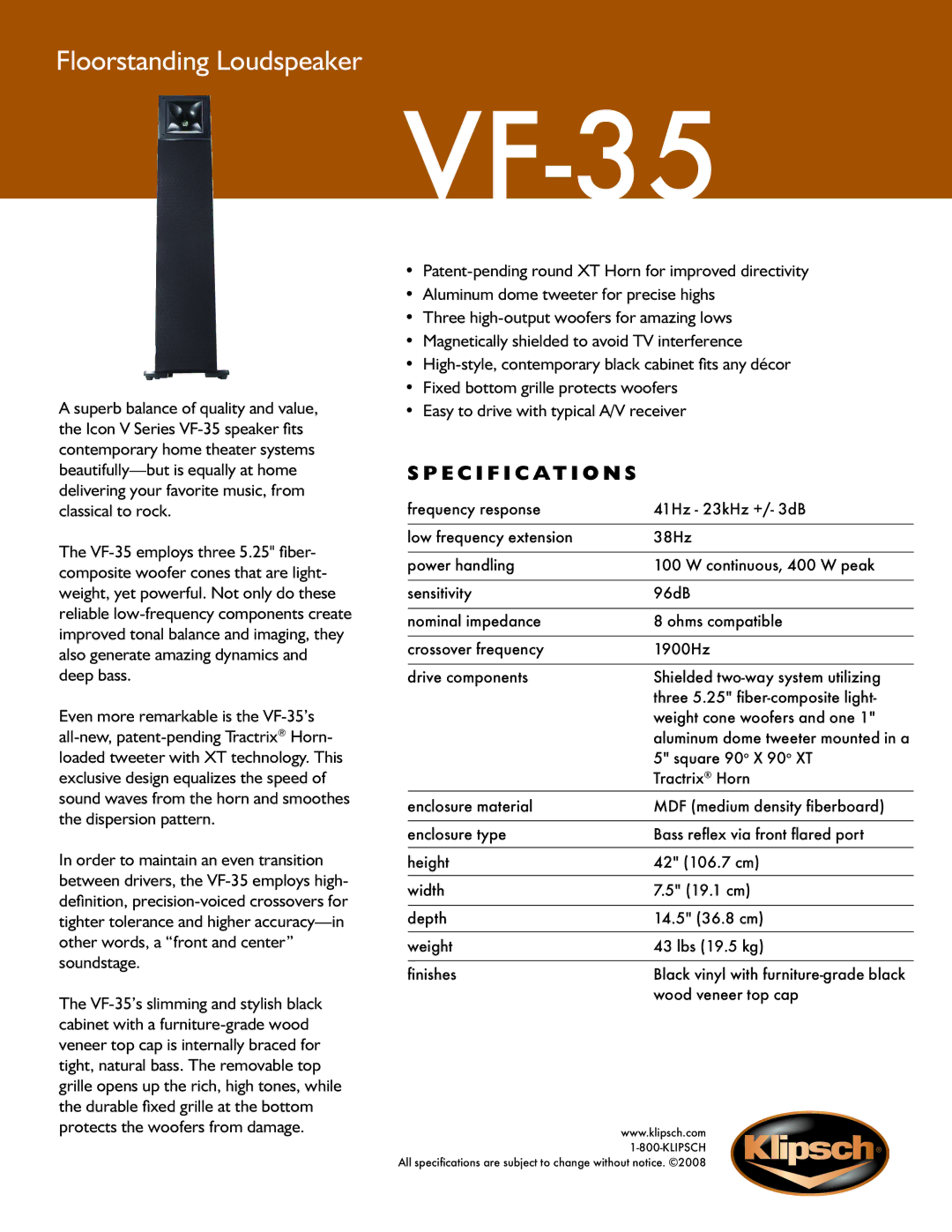

Floorstanding Loudspeaker

VF-35

A superb balance of quality and value, the Icon V Series VF-35 speaker fits contemporary home theater systems beautifully—but is equally at home delivering your favorite music, from classical to rock.

The VF-35 employs three 5.25" fiber- composite woofer cones that are light- weight, yet powerful. Not only do these reliable low-frequency components create improved tonal balance and imaging, they also generate amazing dynamics and deep bass.

Even more remarkable is the VF-35’s all-new, patent-pending Tractrix® Horn- loaded tweeter with XT technology. This exclusive design equalizes the speed of sound waves from the horn and smoothes the dispersion pattern.

In order to maintain an even transition between drivers, the VF-35 employs high- definition, precision-voiced crossovers for tighter tolerance and higher accuracy—in other words, a “front and center” soundstage.

The VF-35’s slimming and stylish black cabinet with a furniture-grade wood veneer top cap is internally braced for tight, natural bass. The removable top grille opens up the rich, high tones, while the durable fixed grille at the bottom protects the woofers from damage.

Patent-pending round XT Horn for improved directivity

Aluminum dome tweeter for precise highs

Three high-output woofers for amazing lows

Magnetically shielded to avoid TV interference

High-style, contemporary black cabinet fits any décor

Fixed bottom grille protects woofers

Easy to drive with typical A/V receiver

S p e c i f i c a t i o n s

frequency response

41Hz - 23kHz +/- 3dB





low frequency extension

38Hz





power handling

100 W continuous, 400 W peak





sensitivity

96dB





nominal impedance

8 ohms compatible





crossover frequency

1900Hz





drive components

Shielded two-way system utilizing



three 5.25" fiber-composite light-



weight cone woofers and one 1"



aluminum dome tweeter mounted in a



5" square 90o X 90o XT



Tractrix® Horn





enclosure material

MDF (medium density fiberboard)





enclosure type

Bass reflex via front flared port





height

42" (106.7 cm)





width

7.5" (19.1 cm)





depth

14.5" (36.8 cm)





weight

43 lbs (19.5 kg)





finishes

Black vinyl with furniture-grade black



wood veneer top cap

www.klipsch.com 1-800-KLIPSCH All specifications are subject to change without notice. ©2008

Page 1
Image 1
Klipsch VF-35 specifications Specification s

VF-35 specifications

The Klipsch VF-35 is an outstanding floorstanding speaker designed to deliver powerful, dynamic sound while maintaining an elegant appearance suitable for any home environment. Klipsch, renowned for its commitment to quality audio engineering, integrates several cutting-edge technologies and innovative design features into the VF-35, making it a great choice for music enthusiasts and home theater aficionados alike.

One of the most notable features of the VF-35 is its Tractrix horn technology. This sophisticated horn design provides exceptional high-frequency response and improved dispersion. By directing sound more efficiently, the Tractrix horn minimizes distortion and enhances clarity, resulting in a more immersive listening experience. This technology ensures that even the subtlest nuances in audio are reproduced with detail and precision.

Complementing the horn technology is Klipsch’s proprietary LTS (Linear Travel Suspension) aluminum tweeters. These tweeters are engineered to reduce distortion while enhancing the overall linearity of the sound. With a maximum output capability that allows listeners to enjoy high volumes without sacrificing clarity, the VF-35 excels in both quiet and loud settings.

The VF-35 features dual 8-inch woofers crafted from a high-tech composite material which ensures robust bass response and remarkable mid-range performance. This design allows the speaker to deliver deep, punchy bass while maintaining the overall tonal balance essential for audio fidelity. The optimized speaker enclosure minimizes standing waves and resonates minimally, which results in a more accurate soundstage.

Another significant characteristic of the VF-35 is its stylish and modern aesthetic. Available in various finishes, including elegant wood veneers, the speaker easily integrates into different décor styles, making it not just a performance powerhouse but also a visual asset to any room.

With a power handling capability that suits a wide range of amplifier types, the Klipsch VF-35 invites customization and versatility in various audio setups. Its efficient design allows it to maintain high output levels with minimal power, ideal for both casual listeners and dedicated audiophiles.

In conclusion, the Klipsch VF-35 is a remarkable floorstanding speaker that embodies innovation and high-fidelity sound. With its advanced technologies, stylish design, and impressive audio performance, it stands out as a premier choice for anyone looking to enhance their audio experience. Whether used in home theaters or music listening spaces, the VF-35 delivers an unparalleled blend of power, clarity, and beauty.
