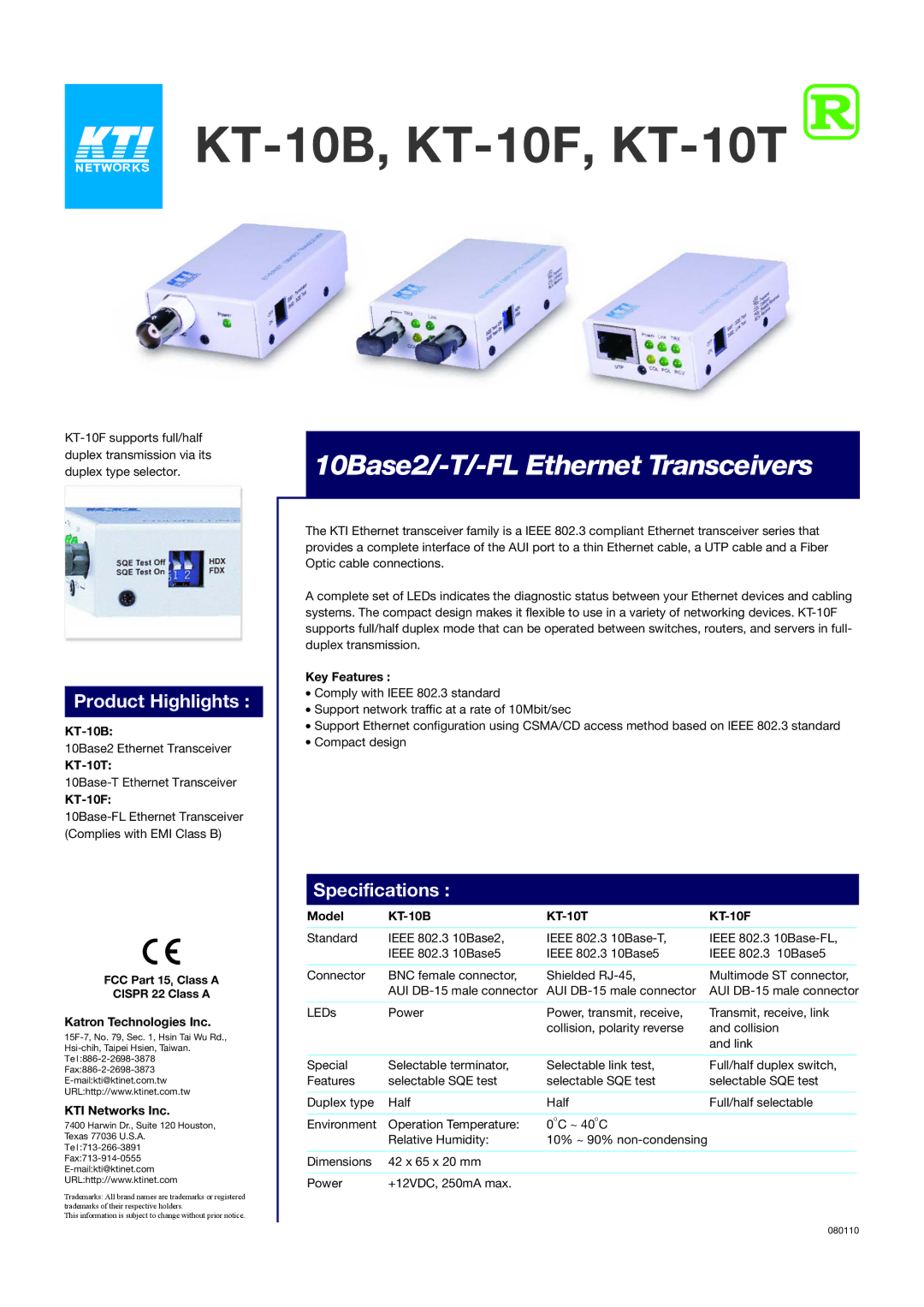

KTI Networks specifications KT-10B, KT-10F, KT-10T, 10Base2/-T/-FL Ethernet Transceivers

KT-10B, KT-10F, KT-10T

KT-10F supports full/half duplex transmission via its duplex type selector.

Product Highlights :

KT-10B:

10Base2 Ethernet Transceiver

KT-10T:

10Base-T Ethernet Transceiver

KT-10F:

10Base-FL Ethernet Transceiver (Complies with EMI Class B)

FCC Part 15' Class A

CISPR 22 Class A

Katron Technologies Inc.

15F-7, No. 79, Sec. 1, Hsin Tai Wu Rd.,

Hsi-chih, Taipei Hsien, Taiwan.

Te l :886-2-2698-3878

Fax:886-2-2698-3873

E-mail:kti@ktinet.com.tw

URL:http://www.ktinet.com.tw

KTI Networks Inc.

7400 Harwin Dr., Suite 120 Houston,

Texas 77036 U.S.A.

Te l :713-266-3891

Fax:713-914-0555

E-mail:kti@ktinet.com

URL:http://www.ktinet.com

10Base2/-T/-FL Ethernet Transceivers

The KTI Ethernet transceiver family is a IEEE 802.3 compliant Ethernet transceiver series that provides a complete interface of the AUI port to a thin Ethernet cable, a UTP cable and a Fiber Optic cable connections.

A complete set of LEDs indicates the diagnostic status between your Ethernet devices and cabling systems. The compact design makes it flexible to use in a variety of networking devices. KT-10F supports full/half duplex mode that can be operated between switches, routers, and servers in full- duplex transmission.

Key Features :

Comply with IEEE 802.3 standard

Support network traffic at a rate of 10Mbit/sec

Support Ethernet configuration using CSMA/CD access method based on IEEE 802.3 standard

Compact design

Specifications :

Model	KT-10B	KT-10T	KT-10F
Standard	IEEE 802.3 10Base2,	IEEE 802.3 10Base-T,	IEEE 802.3 10Base-FL,
	IEEE 802.3 10Base5	IEEE 802.3 10Base5	IEEE 802.3 10Base5
Connector	BNC female connector,	Shielded RJ-45,	Multimode ST connector,
	AUI DB-15 male connector	AUI DB-15 male connector	AUI DB-15 male connector
LEDs	Power	Power, transmit, receive,	Transmit, receive, link
		collision, polarity reverse	and collision
			and link
Special	Selectable terminator,	Selectable link test,	Full/half duplex switch,
Features	selectable SQE test	selectable SQE test	selectable SQE test
Duplex type	Half	Half	Full/half selectable
Environment	Operation Temperature:	0OC ~ 40OC
	Relative Humidity:	10% ~ 90% non-condensing
Dimensions	42 x 65 x 20 mm
Power	+12VDC, 250mA max.

Trademarks: All brand names are trademarks or registered trademarks of their respective holders.

This information is subject to change without prior notice.

080110
