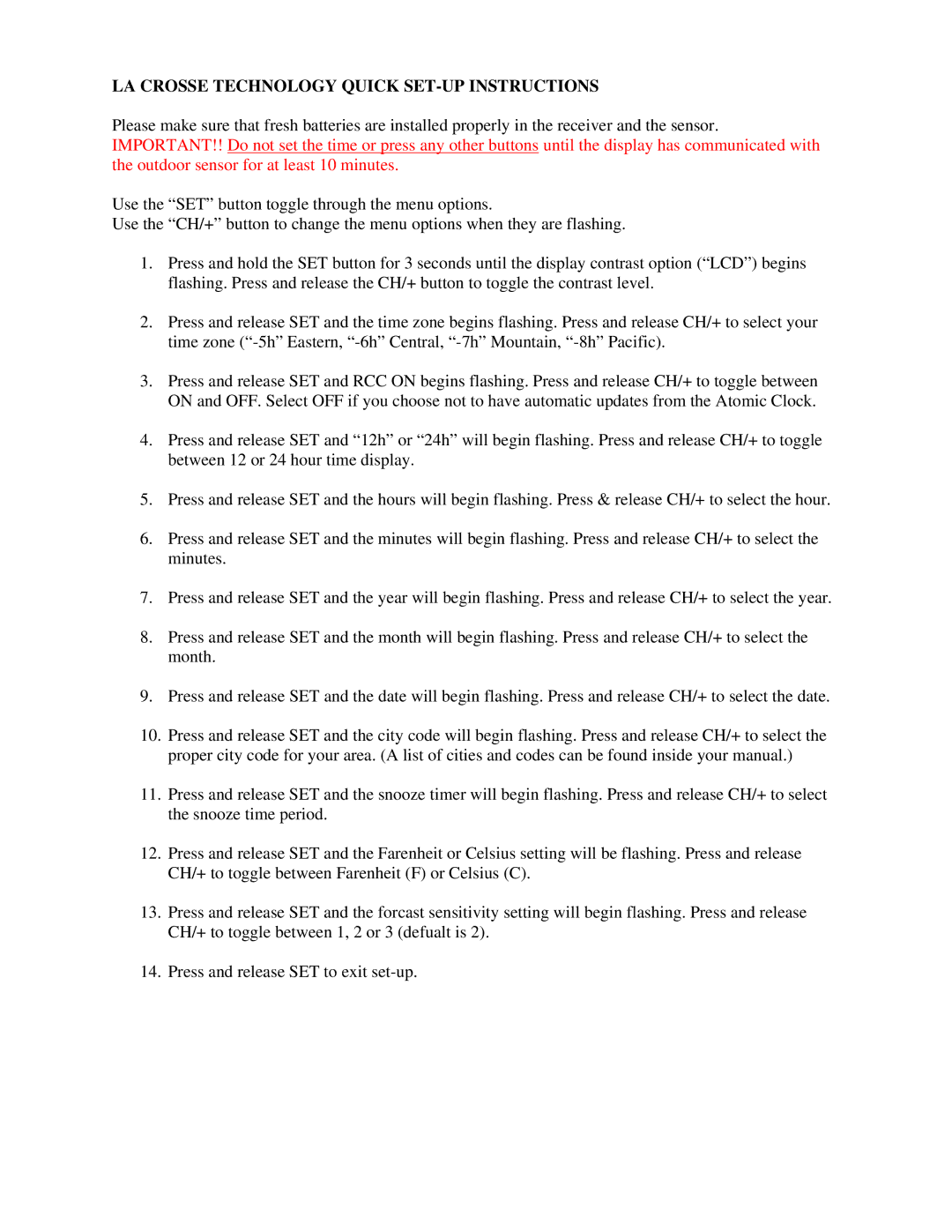

LA CROSSE TECHNOLOGY QUICK SET-UP INSTRUCTIONS

Please make sure that fresh batteries are installed properly in the receiver and the sensor. IMPORTANT!! Do not set the time or press any other buttons until the display has communicated with the outdoor sensor for at least 10 minutes.

Use the “SET” button toggle through the menu options.

Use the “CH/+” button to change the menu options when they are flashing.

1.Press and hold the SET button for 3 seconds until the display contrast option (“LCD”) begins flashing. Press and release the CH/+ button to toggle the contrast level.

2.Press and release SET and the time zone begins flashing. Press and release CH/+ to select your time zone (“-5h” Eastern, “-6h” Central, “-7h” Mountain, “-8h” Pacific).

3.Press and release SET and RCC ON begins flashing. Press and release CH/+ to toggle between ON and OFF. Select OFF if you choose not to have automatic updates from the Atomic Clock.

4.Press and release SET and “12h” or “24h” will begin flashing. Press and release CH/+ to toggle between 12 or 24 hour time display.

5.Press and release SET and the hours will begin flashing. Press & release CH/+ to select the hour.

6.Press and release SET and the minutes will begin flashing. Press and release CH/+ to select the minutes.

7.Press and release SET and the year will begin flashing. Press and release CH/+ to select the year.

8.Press and release SET and the month will begin flashing. Press and release CH/+ to select the month.

9.Press and release SET and the date will begin flashing. Press and release CH/+ to select the date.

10.Press and release SET and the city code will begin flashing. Press and release CH/+ to select the proper city code for your area. (A list of cities and codes can be found inside your manual.)

11.Press and release SET and the snooze timer will begin flashing. Press and release CH/+ to select the snooze time period.

12.Press and release SET and the Farenheit or Celsius setting will be flashing. Press and release CH/+ to toggle between Farenheit (F) or Celsius (C).

13.Press and release SET and the forcast sensitivity setting will begin flashing. Press and release CH/+ to toggle between 1, 2 or 3 (defualt is 2).

14.Press and release SET to exit set-up.

Page 1 Page 1
Page 1
Image 1
La Crosse Technology WS-9611U-IT manual LA Crosse Technology Quick SET-UP Instructions
Page 1 Page 1

WS-9611U-IT specifications

The La Crosse Technology WS-9611U-IT is an advanced digital weather station that offers a comprehensive solution for monitoring indoor and outdoor weather conditions. Renowned for its accuracy and user-friendly design, this device is perfect for weather enthusiasts and homeowners alike.

One of the main features of the WS-9611U-IT is its ability to display multiple weather parameters in one convenient unit. It provides real-time data on temperature, humidity, and barometric pressure, which are crucial for understanding local weather trends. The outdoor sensor measures temperature in a range from -40°F to 140°F, ensuring coverage for even the coldest of climates, while the indoor thermometer maintains a comfortable range for household monitoring.

In addition to temperature readings, the WS-9611U-IT measures relative humidity with an accuracy of +/- 5%, allowing users to track indoor air quality and adjust home environments as necessary. The weather station also features a barometric pressure trend indicator, which helps predict weather changes by showing rising or falling pressure.

This weather station utilizes wireless technology to connect the outdoor sensor to the indoor display unit. With a wireless transmission range of up to 300 feet, users can place the sensor in various locations, making it easy to monitor weather conditions in different parts of their property. The digital display is backlit, allowing for easy reading in low-light conditions, and it includes a clock feature with an alarm, adding functionality to the unit.

Another highlight of the WS-9611U-IT is its ability to record and store historical weather data. Users can track trends over time, providing insights that can be valuable for gardening, home maintenance, and other seasonal activities. The device is powered by batteries, making it versatile and easy to install without the need for complex wiring.

Durability is also a key characteristic of the WS-9611U-IT. Designed to withstand various weather conditions, the outdoor sensor is built to last, ensuring consistent performance over the years.

In summary, the La Crosse Technology WS-9611U-IT stands out with its array of features, including real-time monitoring of temperature, humidity, and pressure, wireless connectivity, historical data tracking, and a user-friendly design. Whether you're a dedicated weather watcher or just looking to enhance your home’s environment, this weather station is an excellent choice for those seeking reliable weather information.
