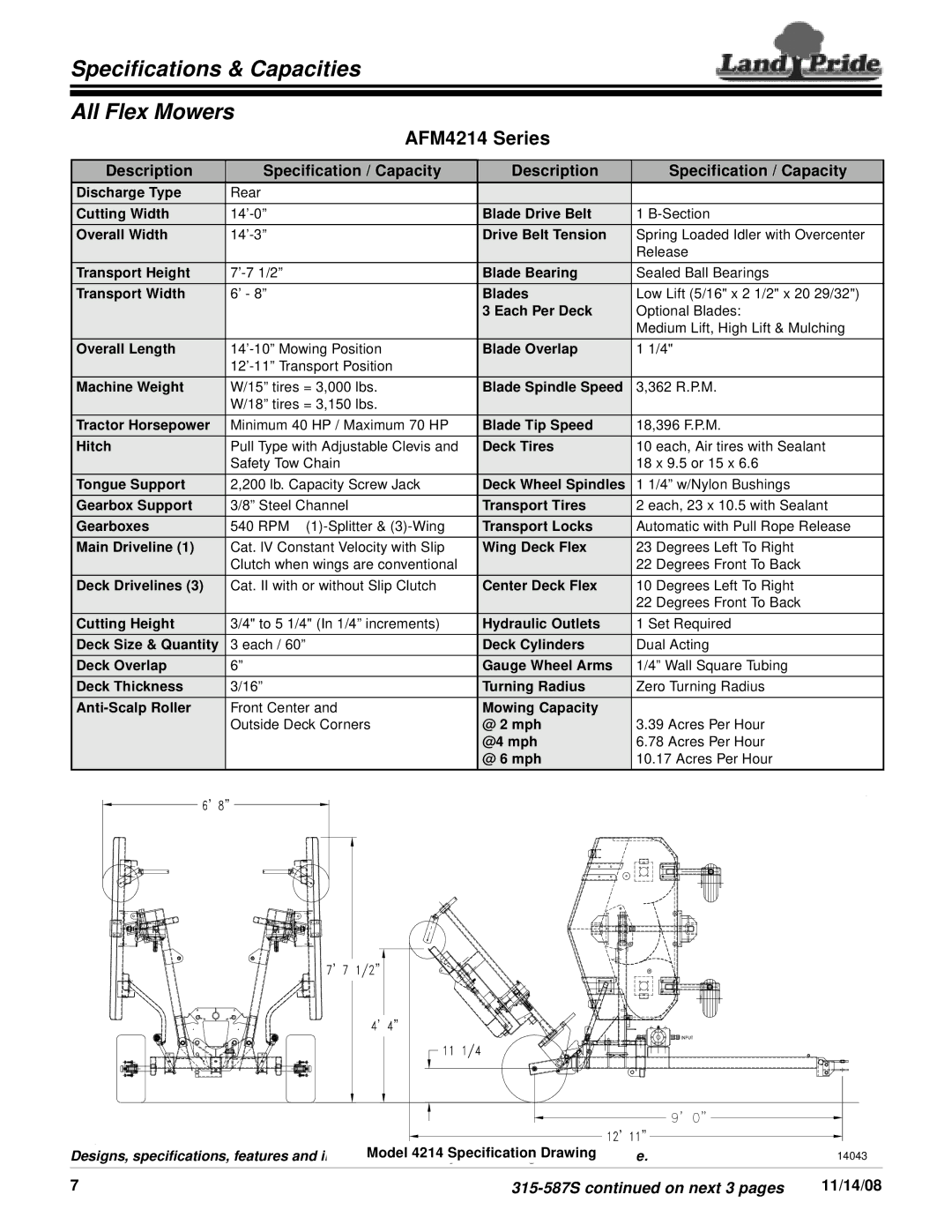

Land Pride AFM4214 Series specifications Specifications & Capacities All Flex Mowers, Description

Specifications & Capacities

All Flex Mowers

AFM4214 Series

Description	Specification / Capacity	Description	Specification / Capacity
Discharge Type	Rear
Cutting Width	14’-0”	Blade Drive Belt	1 B-Section
Overall Width	14’-3”	Drive Belt Tension	Spring Loaded Idler with Overcenter
			Release
Transport Height	7’-7 1/2”	Blade Bearing	Sealed Ball Bearings
Transport Width	6’ - 8”	Blades	Low Lift (5/16" x 2 1/2" x 20 29/32")
		3 Each Per Deck	Optional Blades:
			Medium Lift, High Lift & Mulching
Overall Length	14’-10” Mowing Position	Blade Overlap	1 1/4"
	12’-11” Transport Position
Machine Weight	W/15” tires = 3,000 lbs.	Blade Spindle Speed	3,362 R.P.M.
	W/18” tires = 3,150 lbs.
Tractor Horsepower	Minimum 40 HP / Maximum 70 HP	Blade Tip Speed	18,396 F.P.M.
Hitch	Pull Type with Adjustable Clevis and	Deck Tires	10 each, Air tires with Sealant
	Safety Tow Chain		18 x 9.5 or 15 x 6.6
Tongue Support	2,200 lb. Capacity Screw Jack	Deck Wheel Spindles	1 1/4” w/Nylon Bushings
Gearbox Support	3/8” Steel Channel	Transport Tires	2 each, 23 x 10.5 with Sealant
Gearboxes	540 RPM (1)-Splitter & (3)-Wing	Transport Locks	Automatic with Pull Rope Release
Main Driveline (1)	Cat. lV Constant Velocity with Slip	Wing Deck Flex	23 Degrees Left To Right
	Clutch when wings are conventional		22 Degrees Front To Back
Deck Drivelines (3)	Cat. II with or without Slip Clutch	Center Deck Flex	10 Degrees Left To Right
			22 Degrees Front To Back
Cutting Height	3/4" to 5 1/4" (In 1/4” increments)	Hydraulic Outlets	1 Set Required
Deck Size & Quantity	3 each / 60”	Deck Cylinders	Dual Acting
Deck Overlap	6”	Gauge Wheel Arms	1/4” Wall Square Tubing
Deck Thickness	3/16”	Turning Radius	Zero Turning Radius
Anti-Scalp Roller	Front Center and	Mowing Capacity
	Outside Deck Corners	@ 2 mph	3.39 Acres Per Hour
		@4 mph	6.78 Acres Per Hour
		@ 6 mph	10.17 Acres Per Hour

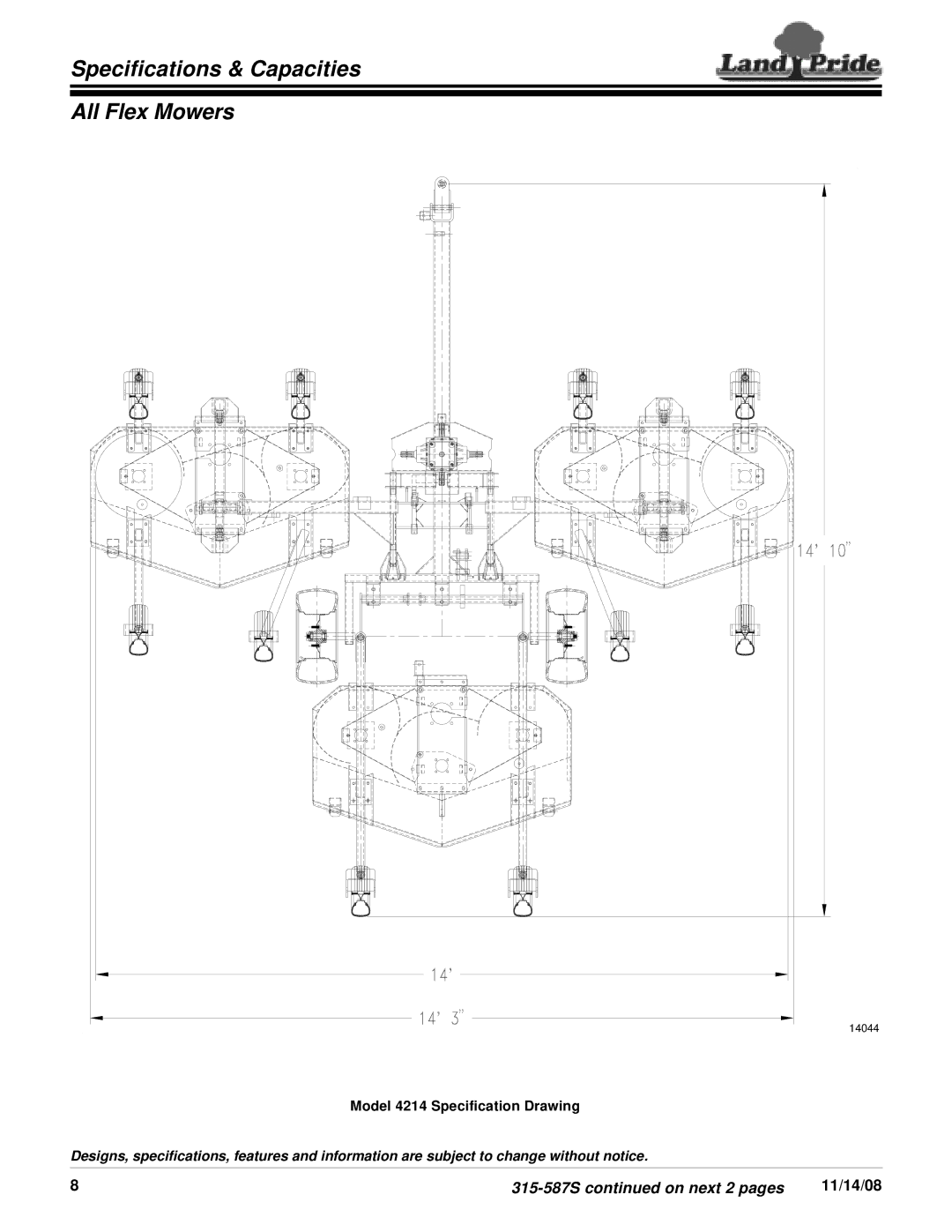

Model 4214 Specification Drawing	14043
Designs, specifications, features and information are subject to change without notice.

7 315-587S continued on next 3 pages 11/14/08
