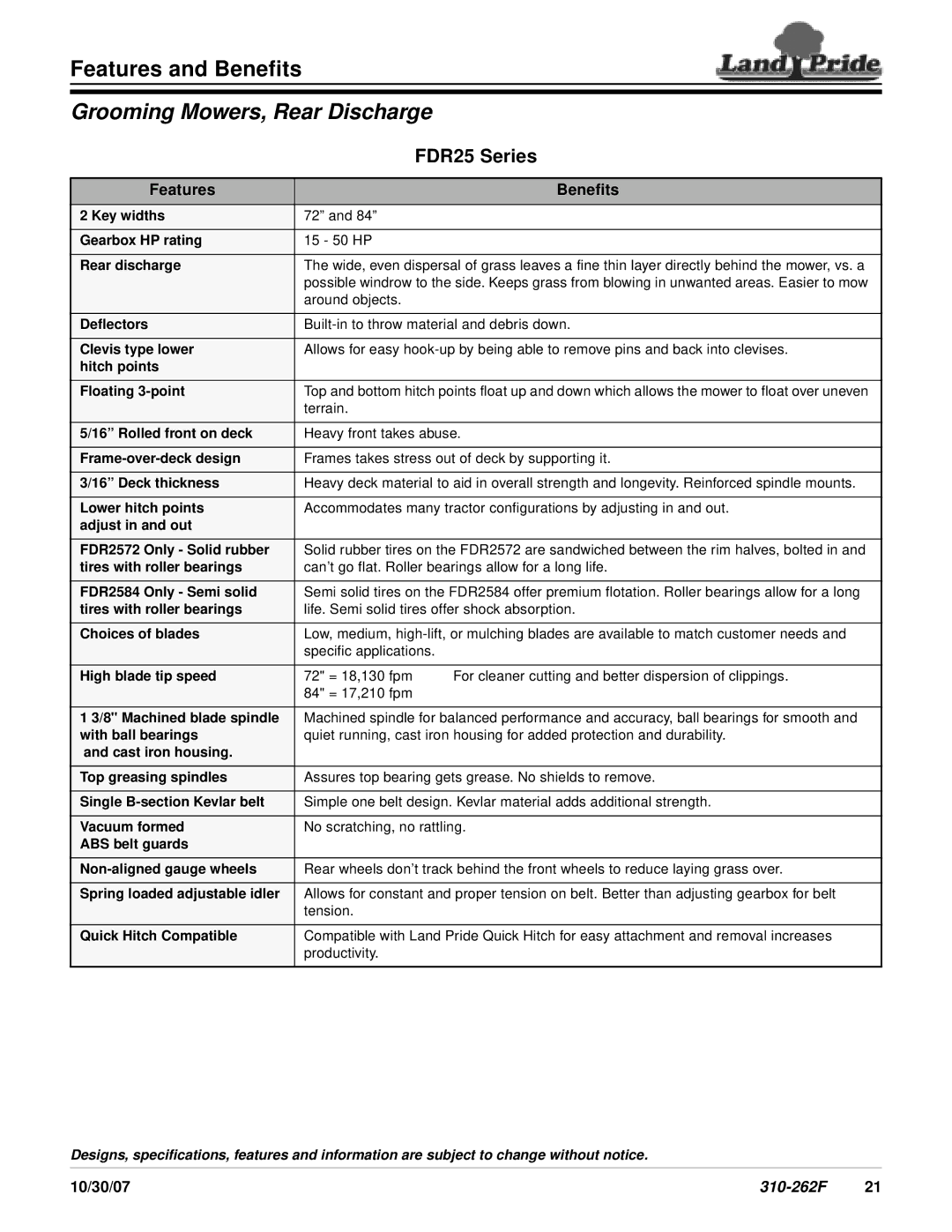

Features and Benefits

Grooming Mowers, Rear Discharge





FDR25 Series







Features



Benefits







2 Key widths

72” and 84”









Gearbox HP rating

15 - 50 HP







Rear discharge

The wide, even dispersal of grass leaves a fine thin layer directly behind the mower, vs. a



possible windrow to the side. Keeps grass from blowing in unwanted areas. Easier to mow



around objects.







Deflectors

Built-in to throw material and debris down.





Clevis type lower

Allows for easy hook-up by being able to remove pins and back into clevises.

hitch points









Floating 3-point

Top and bottom hitch points float up and down which allows the mower to float over uneven



terrain.







5/16” Rolled front on deck

Heavy front takes abuse.





Frame-over-deck design

Frames takes stress out of deck by supporting it.





3/16” Deck thickness

Heavy deck material to aid in overall strength and longevity. Reinforced spindle mounts.





Lower hitch points

Accommodates many tractor configurations by adjusting in and out.

adjust in and out









FDR2572 Only - Solid rubber

Solid rubber tires on the FDR2572 are sandwiched between the rim halves, bolted in and

tires with roller bearings

can’t go flat. Roller bearings allow for a long life.





FDR2584 Only - Semi solid

Semi solid tires on the FDR2584 offer premium flotation. Roller bearings allow for a long

tires with roller bearings

life. Semi solid tires offer shock absorption.





Choices of blades

Low, medium, high-lift, or mulching blades are available to match customer needs and



specific applications.







High blade tip speed

72" = 18,130 fpm

For cleaner cutting and better dispersion of clippings.



84" = 17,210 fpm







1 3/8" Machined blade spindle

Machined spindle for balanced performance and accuracy, ball bearings for smooth and

with ball bearings

quiet running, cast iron housing for added protection and durability.

and cast iron housing.









Top greasing spindles

Assures top bearing gets grease. No shields to remove.





Single B-section Kevlar belt

Simple one belt design. Kevlar material adds additional strength.





Vacuum formed

No scratching, no rattling.

ABS belt guards









Non-aligned gauge wheels

Rear wheels don’t track behind the front wheels to reduce laying grass over.





Spring loaded adjustable idler

Allows for constant and proper tension on belt. Better than adjusting gearbox for belt



tension.







Quick Hitch Compatible

Compatible with Land Pride Quick Hitch for easy attachment and removal increases



productivity.









Designs, specifications, features and information are subject to change without notice.

10/30/07

310-262F

21

Page 1
Image 1
Land Pride FDR25 Series specifications Grooming Mowers, Rear Discharge, Features Benefits, 10/30/07

FDR25 Series specifications

The Land Pride FDR25 Series is a versatile line of finishing mowers designed for both residential and commercial applications. These mowers are engineered to deliver exceptional performance, ease of use, and reliability while providing a professional-looking finish for lawns and fields. With a variety of models available, the FDR25 Series caters to different property sizes and mowing needs.

One of the standout features of the FDR25 Series is its rugged construction. Built with a heavy-duty steel frame and robust deck, these mowers provide durability and stability even when tackling tough terrains. The thick gauge steel ensures that the mower can withstand the rigors of regular use, making it an ideal choice for landscape professionals and property owners alike.

The FDR25 Series boasts a unique, adjustable mowing height that allows users to customize their cut to match their preferences and lawn conditions. This feature is particularly beneficial in maintaining the health of the grass, as it enables operators to achieve the optimal cutting height for various grass types. The mower's cutting deck is also designed with a limited slip clutch, which protects the mower when it encounters obstacles, ensuring longevity and reducing maintenance costs.

In terms of technology, the FDR25 Series incorporates a patented "floating" deck design that allows the cutting deck to contour to the ground. This ensures an even cut while following the contours and variations of the terrain, reducing scalping and maintaining a fresh, manicured look. The mowers are equipped with high-performance blades that provide clean cuts, promoting healthy grass growth by preventing tearing.

Another notable characteristic of the FDR25 Series is its user-friendly design. The mowers feature easy-to-use height adjustment levers, making it simple for operators to adapt their settings on-the-fly. Additionally, the mower's design facilitates quick detachment from tractors, allowing for efficient transitions between tasks.

The Land Pride FDR25 Series is compatible with a range of tractors, enhancing its adaptability across various applications. Its user-focused design, combined with advanced cutting technologies, positions the FDR25 Series as an excellent choice for anyone seeking a reliable, high-performance finishing mower. Whether for maintaining residential lawns or managing larger commercial properties, the FDR25 Series delivers on its promise of quality, performance, and ease of use.
